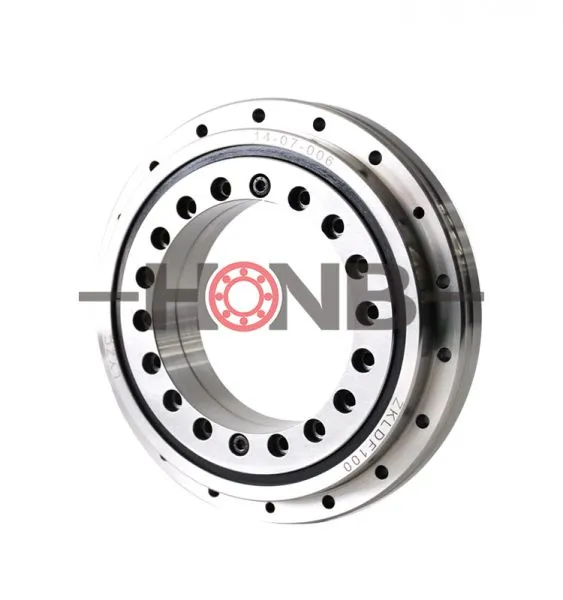

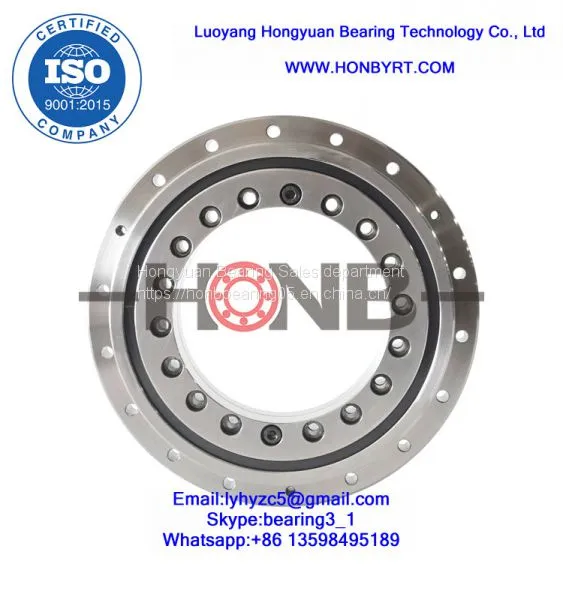

Help CenterZKLDF100 Axial and Radial Angular Contact Ball Bearings100*185*38mm
Related Products
-
ZKLDF Series Turntable Bearings in Stock ZKLDF150EUR 1 - 10000MOQ: 1 Piece -
ZKLDF200 Angular Contact Bearing Applied on the High Speed Machine Tool 200*300*45mmEUR 1 - 10000MOQ: 1 Piece
-
ZKLDF650 High Speed Axial and Radial Angular Contact Ball Bearing 650*870*122mmEUR 1 - 10000MOQ: 1 Piece
-
ZKLDF460 Angular Contact Ball Bearings/ZKLDF460 Rotary Table BearingsEUR 1 - 10000MOQ: 1 Piece
-
YRT50 INA's Alternative Bearings/YRT50 Axial & Radial Bearings/YRT50 Applied on Rotary TablesEUR 1 - 10000MOQ: 1 Piece
ZKLDF axial angular contact ball bearing series have a unity outer ring, two inner ring, two rows of ball rollers and cage assembly, and contact angle is 60. the outer rings and inner rings have fitting holes and easy to fit by joint bolt. the unit is located by means of retaining screws for the safety of transport and handling.(HONBbearing05)
ZKLDF bearing is a kind of high speed bearing, rolling element is ball.
ZKLDF axial angular Contact ball bearing series have double side sealing covers which can against dirt, impurities and avoid grease leak.
ZKLDF axial angular Contact ball bearing series using complex barium-base grease, you can add the Grease through grease hole. ZKLDF Axial angular contact ball bearing series are designed with 60 contact angle and two Rows of ball rollers, which can support radial load, double axial loads and tilting moments. Due to the special design with copper cages, the bearing have higher strength and lower Friction torque. so this kind of bearings are especially Appliated to the situation with super speed, long time running, high stiffness and High precision.(HONBbearing05)
Contact person: Anna Feng
Fax:+86 379 63086177
Whatspp: +86 13598495189
Skype: bearing3_01
Website:
Model: ZKLDF100
ID(Inner diameter):100mm
OD(Outer diameter):185mm
Thickness(Height):38mm
Axial dynamic load rating(Ca):67KN
Axial static load rating(Coa):251KN
Limiting speed:2800r/min
Bearing friction torque:1.6Nm
Mass(Weight):4.5KG
| TYPE | Dimension | The fixing hole | |||||||||||||
| d | D | H | H1 | D1 | D2 | D3 | J | J1 | a | The inner ring | The outer ring | ||||
| unit：mm | d1 | d2 | QTY3) | d3 | QTY3) | ||||||||||
| mm | mm | ||||||||||||||
| ZKLDF100 | 100 | 185 | 38 | 25 | 160 | 136 | 158 | 112 | 170 | 5.4 | 5.6 | 10 | 16 | 5.6 | 15 |
| TYPE | Screw connection QTY | Connect screw holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed4） | Bearing friction torque | Weight | ||
| Axial | ||||||||||
| Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Grease | |||||||
| G | QTY | QTY*t | N m | KN | r/min | Nm | ≈Kg | |||
| ZKLDF100 | 2 | M5 | 3 | 18*20° | 8.5 | 67 | 251 | 2800 | 1.6 | 4.5 |
