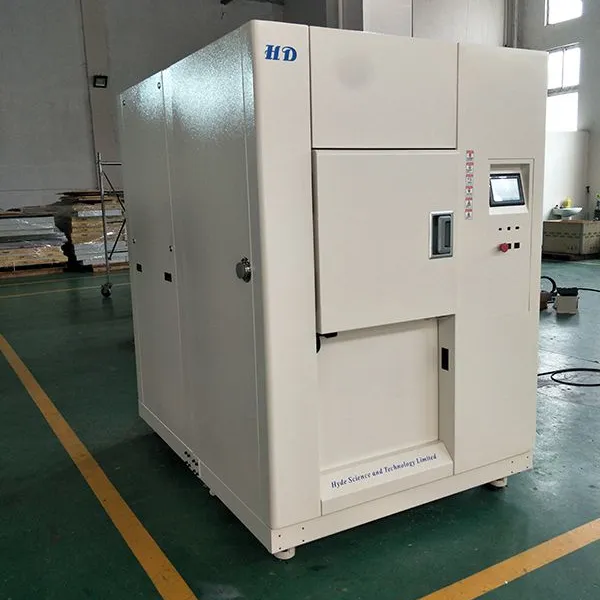

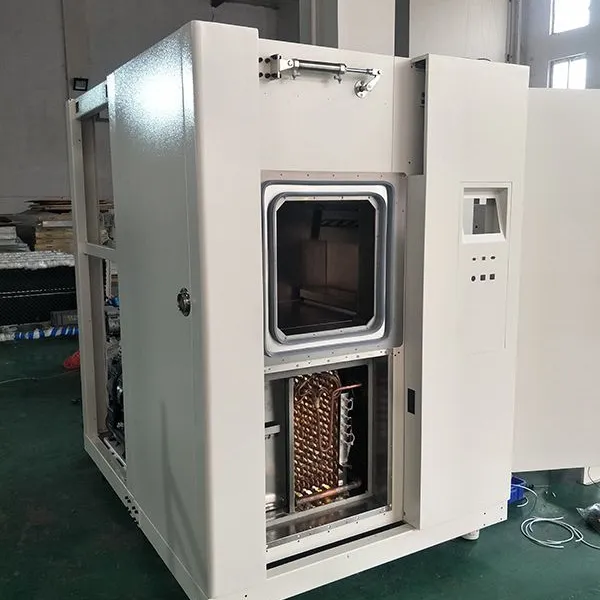

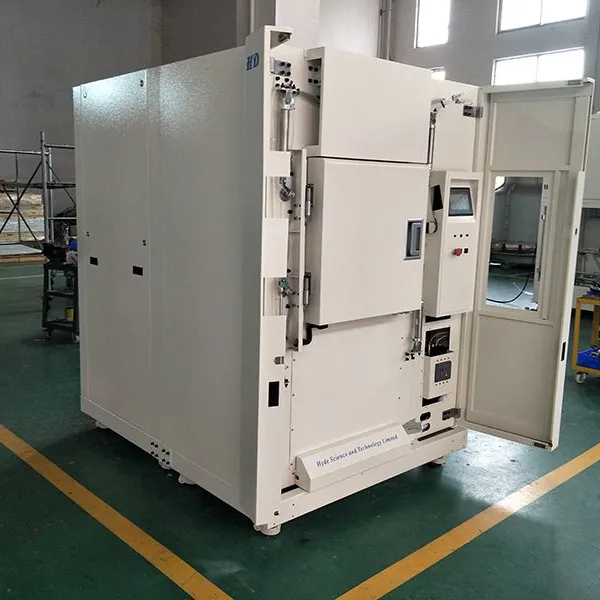

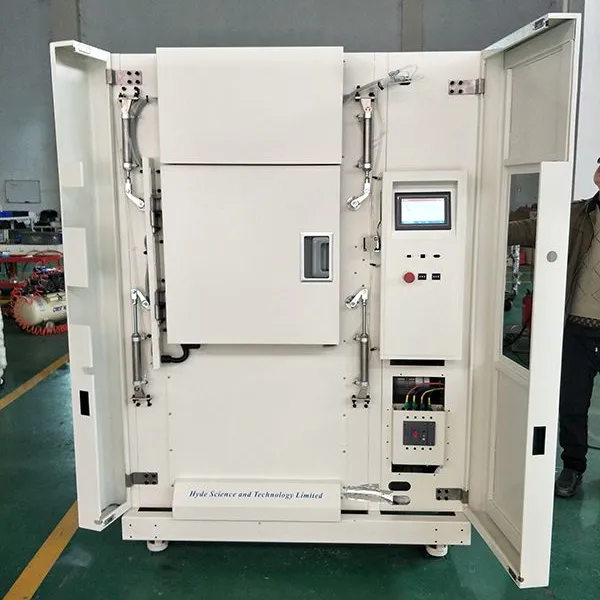

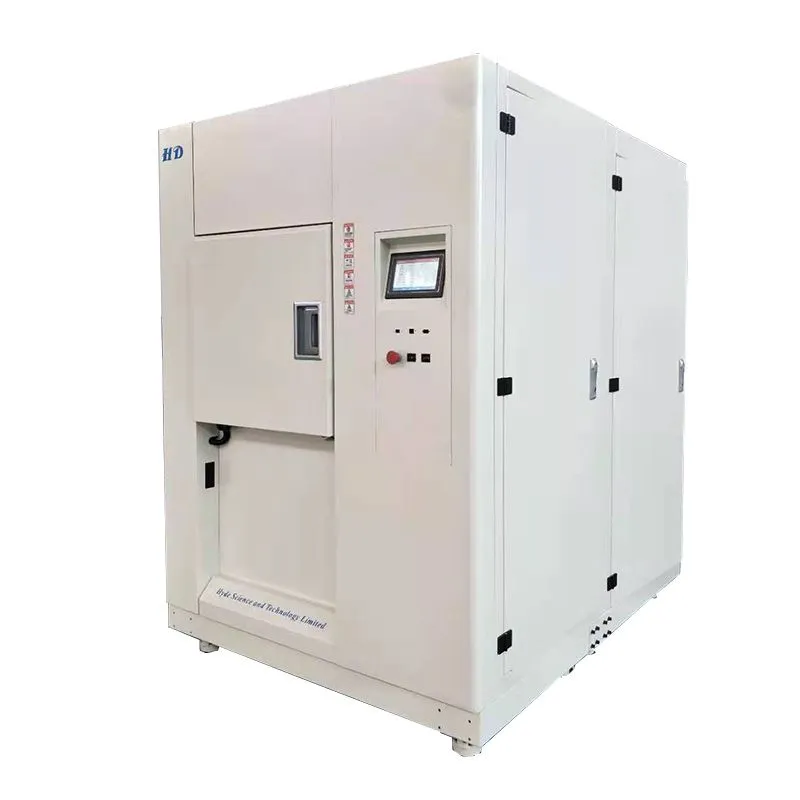

Three Zones Temperature Thermal Shock Chamber

US$ 10000 - 40000 MOQ: 1 Set

Key Specifications

Business Type:

Manufacturer

Year Established:

2010

Annual Export Value:

Below US$1 Million

Hyde Science And Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin, Shanghai, Ningbo, Shenzhen, Qingdao, etc.

Delivery Detail:

60 days

Three zones temperature thermal shock chamber

Technical parameter:

Model			HD-CTS3-1J	HD-CTS3-2J	HD-CTS3-5J	HD-CTS3-10J
Internal volume (L)			120 L	210 L	504 L	900 L
Internal dimensions (DWH)			400500600 mm	500600700 mm	700800900 mm	90010001000 mm
External dimensions (DWH)			162014602360 mm	172015602460 mm	212018202260 mm	242020202660 mm
Preheating area	Preheating temperature upper limit		200℃
	Heating time		R.T.~＋200℃: 40min (approximately)
Pre-cooling area	Pre-cooling temperature lower limit		-75℃
	Cooling time		R.T.~-70℃: 90min (approximately)
Working area	Temperature shocking range		High temperature: 60℃～+150℃; Low temperature: -55℃～-10℃;
	Temperature fluctuation		≤±0.5℃
	Temperature deviation		≤±2℃
Temperature recovery time			≤5min
Material
Shell		Cold rolled sheet steel, spray plastics on surface
Internal material		Stainless steel
Thermal insulation material		Polyurethane foam + glass wool
Refrigeration system
Refrigeration mode		Mechanical compression, two-stage refrigeration
Cooling mode		Water cooling
Compressor		Imported compressor
Controller		Programmable logic controller, 7’’ LCD touch screen
Power supply		АС380V, 50Hz, Three-phase four-wire + earth wire
