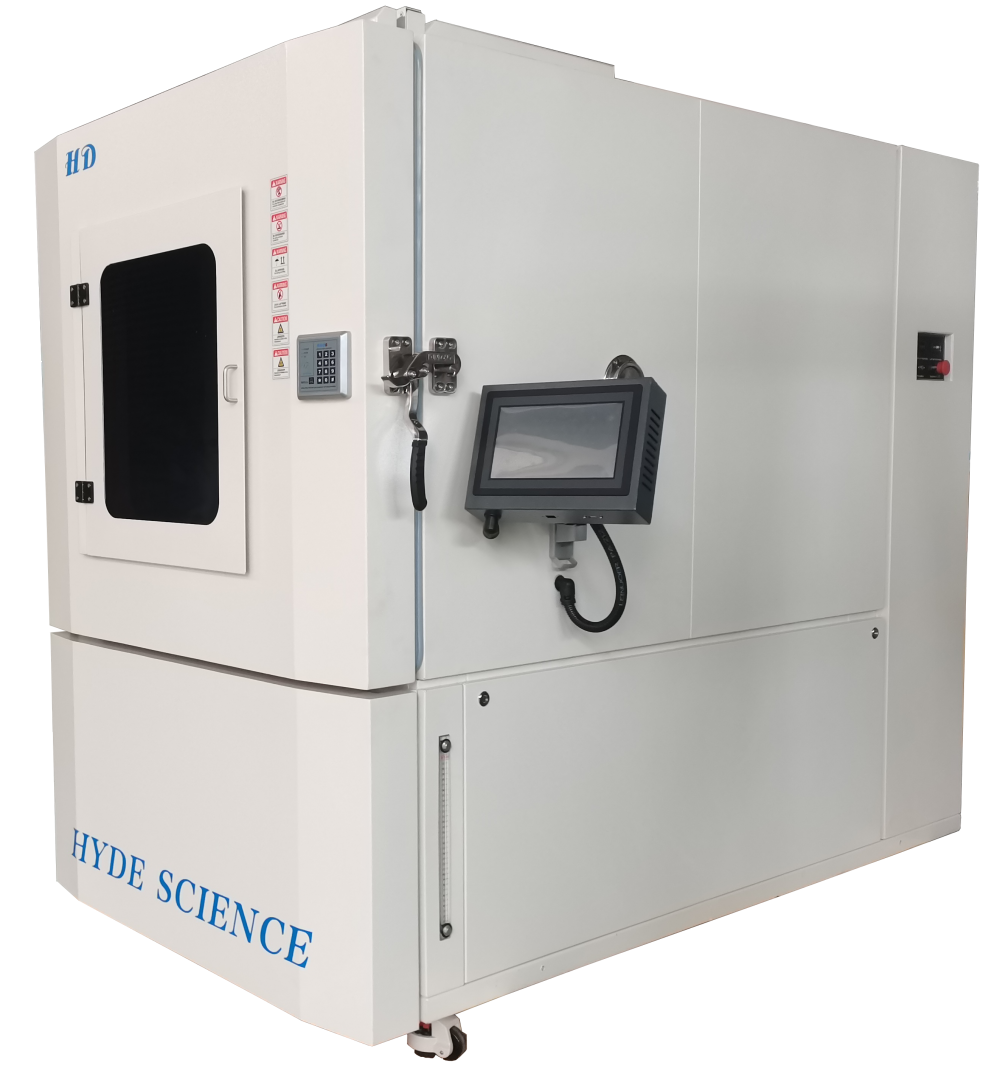

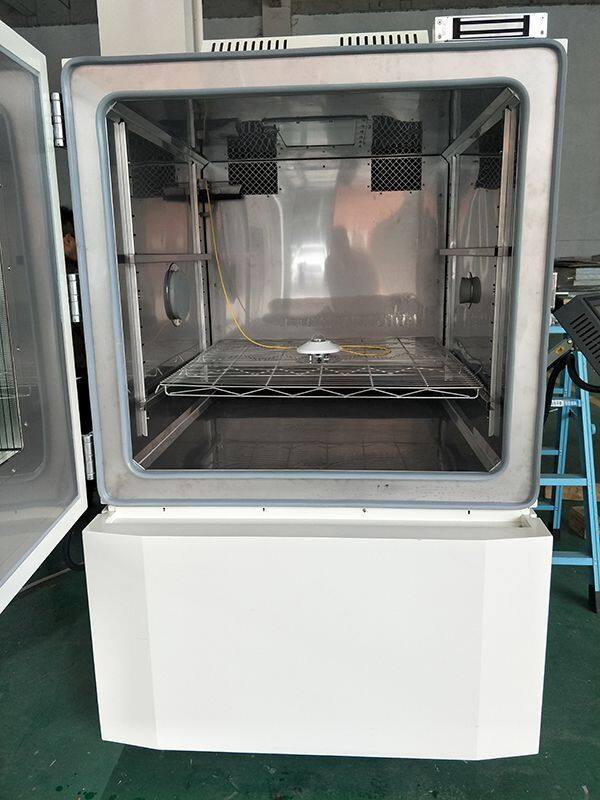

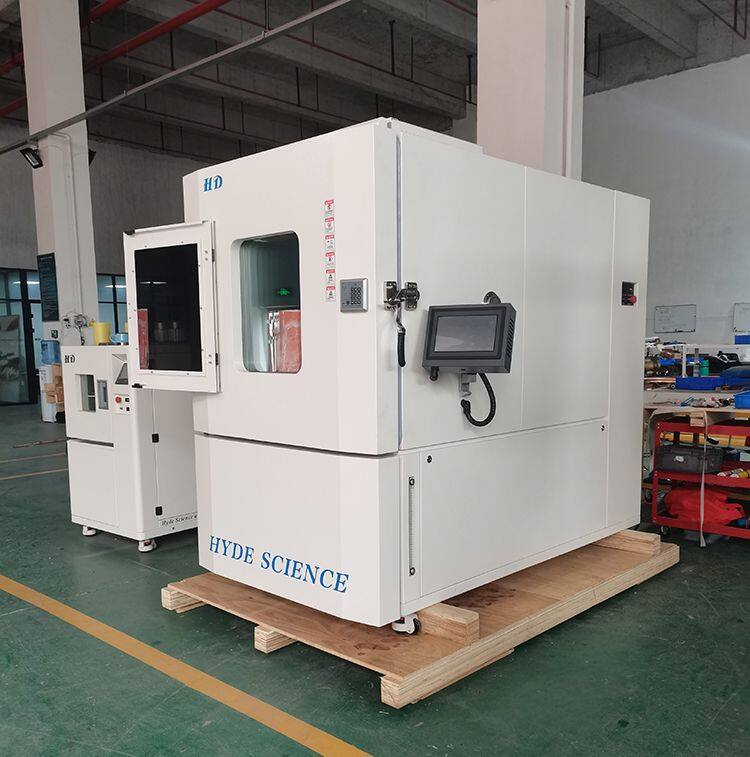

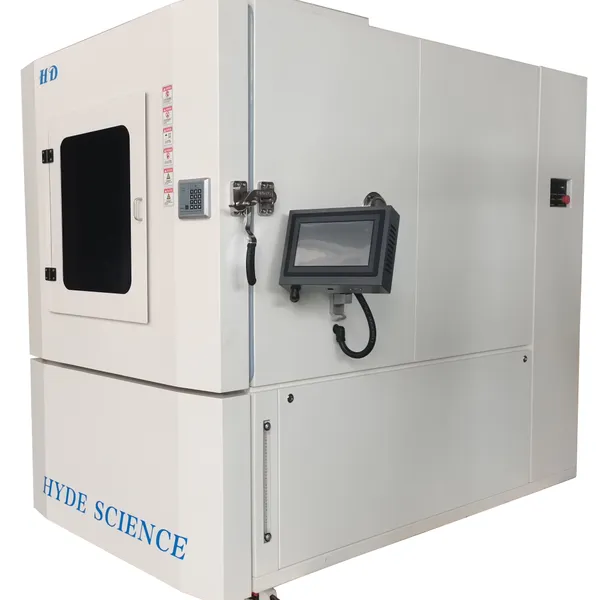

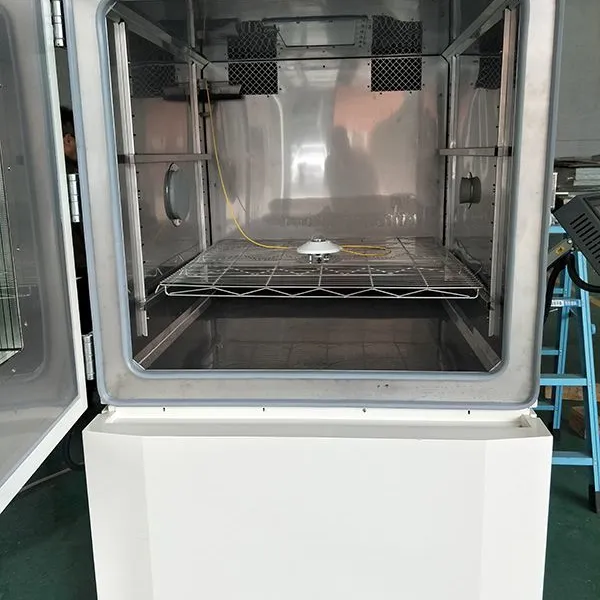

Xenon lamp weather resistance test chamber
Application:

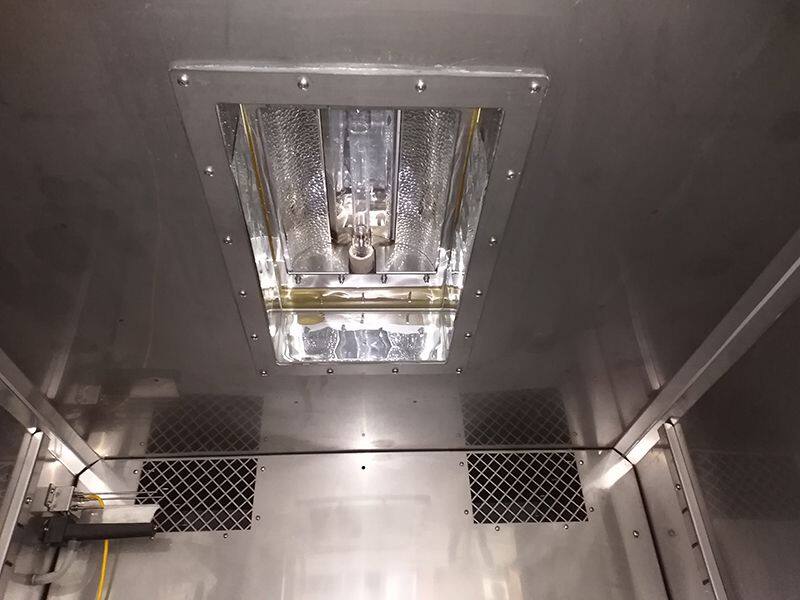

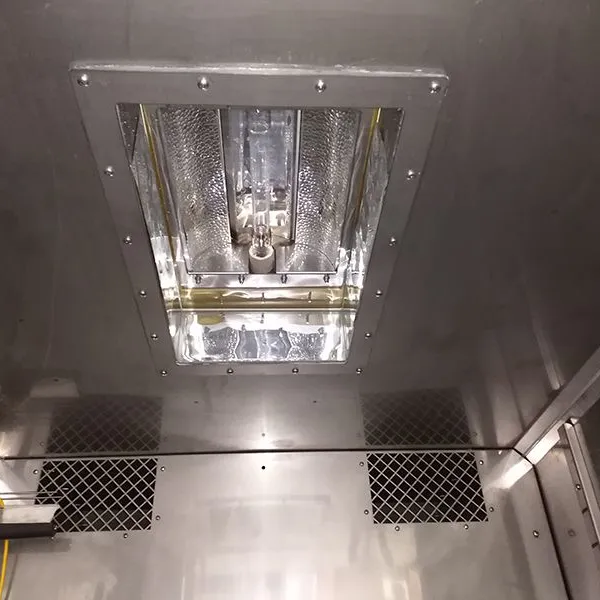

Xenon lamp weather resistance test chamber uses a xenon arc lamp that simulates the full sunlight spectrum to reproduce the destructive light waves existing in different environments, which can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control. It is widely used to determine the climate resistance adaptability of electrical and electronic products to the solar radiation environment and related temperature and humidity environments (especially product’s electrical properties and mechanical properties changes), and it can also be used to check the sample’s corrosion resistance ability.
Technical parameter:
Model |
QH-XD710HD |
QH-XD780HD |
Internal dimensions (D*W*H) |
400*550*450 mm |
950*950*900 mm |
External dimensions (D*W*H) |
1400*750*1500 mm |
1840*1150*1900 mm |
Performance | ||
Temperature range |
-70...+80℃ |
|
Humidity range |
40...95%RH |
|
Temperature uniformity |
±2℃ |
|
Temperature accuracy |
±1℃ |
|
Humidity accuracy |
±3% |
|
Humidity fluctuation |
≤±2.5%R.H |
|
Humidity deviation |
≤±2.5%R.H |
|
Heating rate |
≤ 2℃ |
|
Wavelength range |
350...850 nm |
|
Radiation intensity |
550～1100W/m2, adjustable; Spectral wavelength: 290nm～800nm; |
|
System timing |
Time setting range: 0～9999hours; |
|
Service life of Xenon lamp |
1000 hours, approximately; |
|
Filter |
Below 255nm, 0%; 400～800nm, above90%; |
|
Material | ||
Shell material |
Cold rolled sheet steel |
|
Internal material |
Stainless steel |
|
Thermal insulation material |
PU FOAM + Centrifugal glass wool |
|
Refrigeration system | ||
Refrigeration mode |
Mechanical compression, two stage refrigeration; |
|
Compressor |
Imported compressor |
|
Cooling mode |
Air cooling |
|
Heater |
Nickel-chromium alloy heating wire |
|
Temperature sensor |
Pt100 |
|
Controller |
Programmable logic controller, 7’’ LCD touch screen |
|
Power supply |
AC220V/380V, 50Hz, Three-phase four-wire + earth wire |
|
