Triangle Bending PVC Coated Steel 3D Curved Wire Fencing For Area Protection
Product descriptions

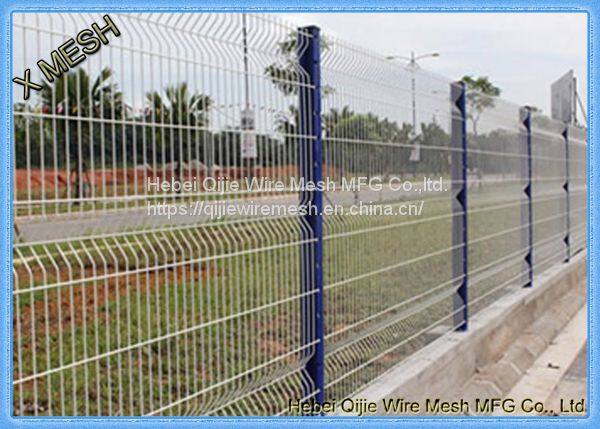

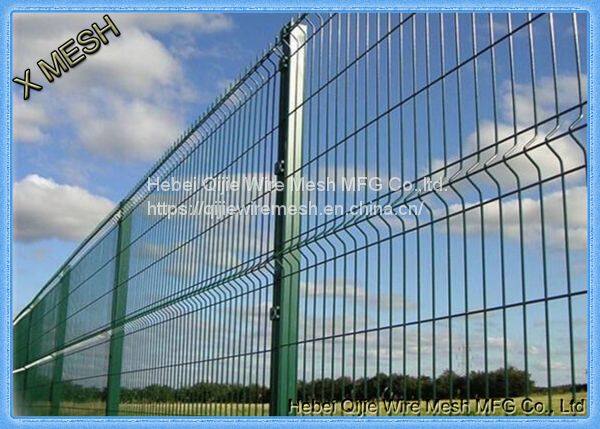

1.Brief introduction of 3D curved fence
1.The panel is portable, wire size and mesh open can be produced as customer's requests. The ability of resisting the concussion well not be discounted. It is suitable with many kinds of post, it's economy and much more valuable.
2.Material: low carbon steel wire or stainless steel wire
3.Feature:long-distance protections; adjustable safety standards; suitable for difficult grounds and topography; high mechanical performance due to heavy steel structure; European Quality Standards; low cost structure; local construction participation
4.Applications:well suitable for a wide range of applications, such as for enclosing commercial grounds, lawn, road, freight yards, sport fields, airports and public districts
5.Common specifications:
Specifications (H x W): 800, 1000, 1200, 1500, 1600, 1800, 2000 x 3000mm; double layers 2400, 2600 x 2800 x 3000mm
Corner post: 48 x 2.5
Wire dia: 3mm, 4mm,4.5mm,5mm
Hole: 50 x 150mm, 50 x 200mm, 75 x 250mm
High Anti-Corrosion:
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20/m2 | 60g/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100 microns | 120 microns |
| PVC/PE dipped coating | 400 microns | 600 microns |
Popular Specification:
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model | |
| Fix Ⅰ | Fix Ⅱ | ||||||
|
3.5mm 4.0mm 4.5mm 5.0mm |
100*50mm 100*55mm 120*55mm 150*55mm |
2.0m 2.255m 2.5m 3.0m |
800mm | 2 | 1200 | 900 | XLFP-03 |
| 1000mm | 2 | 1400 | 1200 | ||||
| 1200mm | 2 | 1600 | 1400 | ||||
| 1500mm | 3 | 2000 | 1700 | ||||
| 1700mm | 3 | 2200 | 1900 | ||||
| 2000mm | 4 | 2500 | 2200 | ||||
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model | |
| Fix Ⅰ | Fix Ⅱ | ||||||
| 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm |
200*50mm 200*55mm 200*60mm 200*65mm |
2.0m 2.255m 2.5m 3.0m |
830mm | 2 | 1200 | 900 | XLFP-04 |
| 1.30mm | 2 | 1400 | 1200 | ||||
| 1230mm | 2 | 1600 | 1400 | ||||
| 1530mm | 3 | 2000 | 1700 | ||||
| 1730mm | 3 | 2200 | 1900 | ||||
| 1830mm | 4 | 2300 | 2000 | ||||
| 2030mm | 4 | 2500 | 2200 | ||||
| 2230mm | 4 | 2700 | 2400 | ||||
| 2530mm | 5 | 3000 | 2600 | ||||

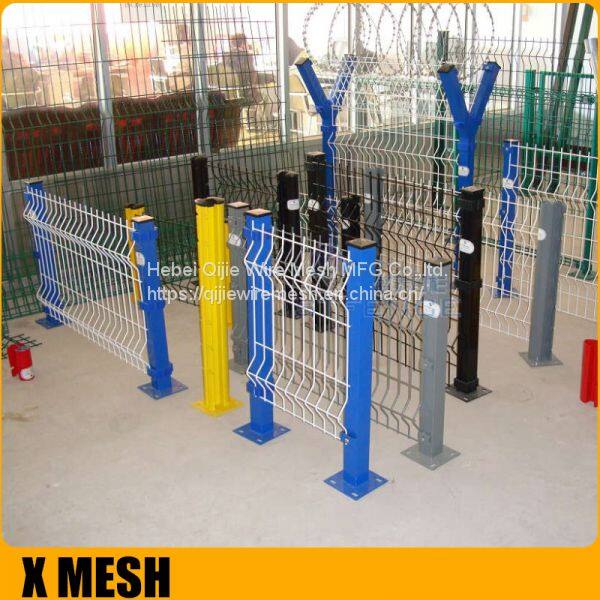

Fix Ⅰ:Buried in the ground. Fix Ⅱ: Installed with bottom base or feet.
Choice of colors:
Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available
Features of 3D security fence
High strength.
Corrosion and rust resistance.
Weather resistance.
Various colors for choice.
Durable and long service life.
Different installation types.
Can suit different installation environments.
Prevent intruders from entering the unwanted areas.
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
