heavy gauge Powder Coated Welded Curved Fence Panel/Wire Fence/Wire Mesh Fence/Mesh Fence
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.
Material: low carbon steel wire.
Colors : green, yellow, black, red ,dark brown etc .
Surface Treatment: electro galvanized, hot dipped galvanized,
pvc coated, powder coated
Application: used for fencing and protection for road, railway, airport,
residence district, seaport, garden, feeding and husbandry etc
Specification:
| Wire Dia | 4.0mm,5.0mm,6.0mm |
| Mesh Hole | 50x100mm, 50x150mm, 50x200mm |
| Panel Size |
1500x2500mm,1700x2500mm,1800x2500mm,1800x3000mm |
| Clips Type | metal , plastic square ,"M" clips |
| Square Post | 40x40mm,50x50mm,60x60mm,80x80mm |
| Peach Post | 50x70mm,70x100mm |
| Round Post | 48mm, 60mm, 75mm OD |
| Package Details | In bulk or pallet |
| Loading Number | 1.wire dia 4.0mm, size 1800x2500mm A 20ft container can be fit 600sets (600 pcs panel +601 pcs Post) Wire dia 5.0mm, size 1800x2500mm A 20ft container can be fit 460 sets (460 pcs panel+461pcs post) |
| Delivery Details: | Within 10-15days after confirming order and receving 30% deposit |
| Trade Way | FOB/CNF/CIF/DDU/DDP |
1.High quanlity and reasonable price.
2.Customized on-demand.
3.Reasonable shipping and fast delivery.
Specifications of 3D Curved Welded Wire Fence
| Height Above Ground (m) |
Panel Size (mm) |
Mesh Size (mm) |
Numbers of Beams |
Post Diameter (mm) |
| 1.2 | 1230x2500 | 50x100/50x200 | 2 | 50x70 |
| 1.8 | 1830x2500 | 50x100/50x200 | 3 | 50x70 |
| 2.0 | 2030x2500 | 50x100/50x200 | 4 | 70x100 |
| We can also manufacture the weld mesh fencing as per your dimension of the specification | ||||

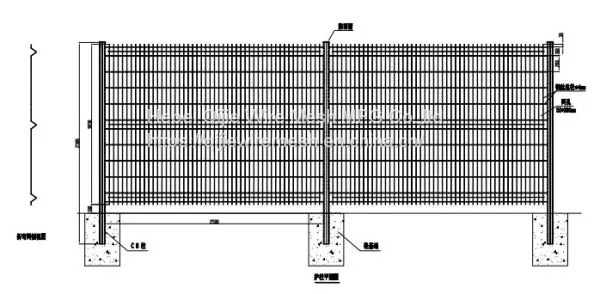

Curved mesh Panel of 3D curved Mesh Fence
Curved mesh Panel of 3D curved Mesh Fence
Features of 3D security fence
High strength.
Corrosion and rust resistance.
Weather resistance.
Various colors for choice.
Durable and long service life.
Different installation types.
Can suit different installation environments.
Prevent intruders from entering the unwanted areas.
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
