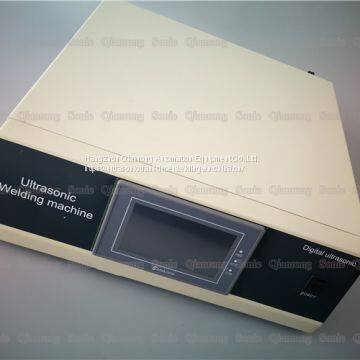

15Khz 4200w Ultrasonic Sound Wave Generating Device For Plastic Welding Machine

15Khz 4200w Ultrasonic Digital Generator for Plastic Welding Machine

Ultrasonic power is often referred to as an ultrasonic source, an ultrasonic generator. Its function is to convert electrical energy into a high frequency alternating current signal that matches the ultrasonic transducer. From the form of the amplifying circuit, a linear amplifying circuit and a switching power supply circuit can be used, and a high-power ultrasonic power source generally adopts a circuit form of a switching power supply in terms of conversion efficiency. Linear power supplies also have their own range of applications. It has the advantage of not requiring strict circuit matching and allowing continuous and rapid changes in operating frequency. From the current situation in the ultrasound industry, ultrasound is mainly divided into self-excited and its exciting power supply.

working principle:

An ultrasonic power source, also known as an ultrasonic generator, is a device for generating and providing ultrasonic energy to an ultrasonic transducer. Its purpose is to convert our mains (220V or 380V, 50Hz or 60Hz) into a high-frequency AC signal that can be matched with an ultrasonic transducer. This signal can be either a sinusoidal signal or a pulsed signal.

Specifications:

Advantages:

1.High stability: All-digital integrated circuits, use of US imports of high-performance processors interference, while reducing the number of components, simplify the hardware structure, thereby improving the reliability of the system.

2.Automatic frequency tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking of complex control technology, can eliminate the temperature, static load, machining area, tool wear and other factors drift disadvantages of conventional analog regulator insurmountable, conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.

3.Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4.Amplitude stepless adjustment: Amplitude can instantly increase or decrease in the adjustment process, also can be micro adjusted, can effectively prevent the perfect size pieces of plastic welding, effectively reducing wear shock, burns and so on. Defective amplitude setting range of 10% to 100%.

5.Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of the malfunction prompts until technician troubleshooting.

6.Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7.Two kinds of welding mode switch back and forth, so that a higher precision welding, soldering and better results.
