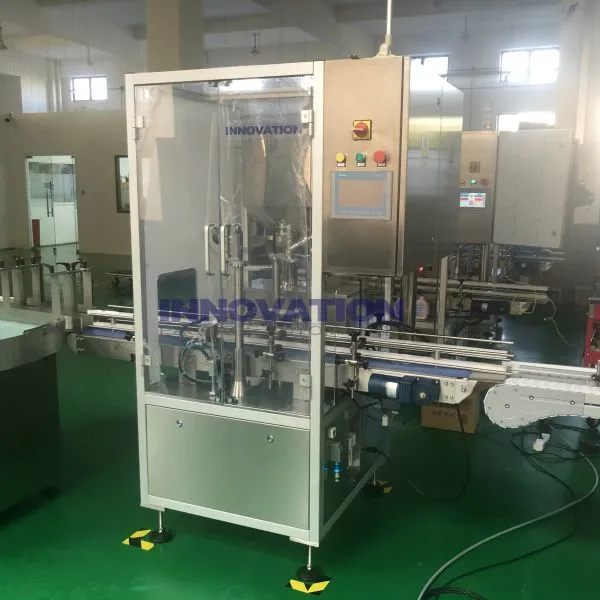

Atlas 220 Double -Line Automatic Filling Machine
Overview:
This product is suitable for filling liquid or semi-fluid products in the daily chemicals industry. Food, pharmaceutical and other industries can also use this product for filling operations.
This product combines the process of filling, conveying and controlling in one unit. Controlled by servo motor and operated on touch screen, the equipment will reach a high productivity and display all output automatically.
The machine is designed with sensor system to cut off the filling while there is no bottle input or the filling nozzles touch the bottle mouth.
Features:
l Apply to fill liquid, toner, cream, lotion, shampoo, detergent and other materials
l Adopts servo system to control the filling volume and accuracy
l Adopts servo system to control the filling speed and filling nozzle inserted
l Double filling lines work independently to increase production speed.
l Use PU belt conveyor for easier cleaning.
l Adopts photoelectric to control the absence of bottles.
l Easy to disassemble the material contact parts for clean
l Main Frame and cover material: SUS304, Product contact surface material: SUS316L
Main Parameter:
Filling Volume |
15ml – 500ml |
Workable Container Diameter |
≤90 mm |
Workable Container Height |
50~200 mm |
Power Supply |
220v AC 50/60Hz |
Power |
2000W |
Air Pressure |
5 bar |
Air Consumption |
0.5m³/min |
Dimensions |
1800mm(L) x 900mm(W) x 1850 mm(H) |
Weight |
300 KG |
Application:
