Axial and Radial Bearings YRT120 for Precision Turntable
EUR 1 - 10000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONB
Place of Origin:
China
Model Number:
YRT80
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
5 days
Related Products
-
Good Quality YRT150 for CNC Machine Tool Rotary TablesEUR 1 - 10000MOQ: 1 Piece -
INA YRT180 Slewing BearingsEUR 1 - 10000MOQ: 1 Piece
-
High Precision YRT200 Slewing BearingEUR 1 - 10000MOQ: 1 Piece
-
High Precision Rotary Table Bearing YRT260EUR 1 - 10000MOQ: 1 Piece
-
YRT325 Rotary Table Bearings in StockEUR 1 - 10000MOQ: 1 Piece
Brand Name
HONB
Place of Origin
China
Model Number
YRT80
Feature
Other, Axial and Radial bearings
Seals Type
No seals
Outside Diameter
210, 210
Bore Size
120, 120
Gear Options
Nongeared
YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high stiffness and the Union loads with low speed such as index tables and revolving milling heads.See Fig
*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
HONB WEB:
Contact person: Anna Feng
Tel: +86 379 63086182
Fax:+86 379 63086177
Fax:+86 379 63086177
Mob: +86 13598495189
Whatspp: +86 13598495189
Skype: bearing3_01
Website:
Whatspp: +86 13598495189
Skype: bearing3_01
Website:

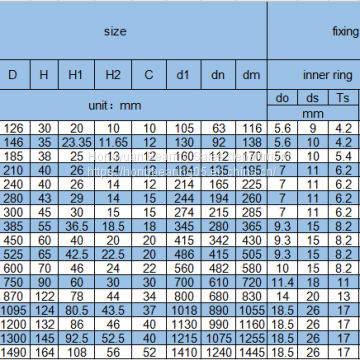

| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit：mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT120 | 120 | 210 | 40 | 26 | 14 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 |
| Type | Screw connection QTY | Connect screws holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed5） | Friction Moment3） | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT120 | 2 | M8 | 3 | 24*15° | 14 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 |
