Home > Products > YRT Rotary table bearings > YRT460 China YRT high precision bearings manufacturers

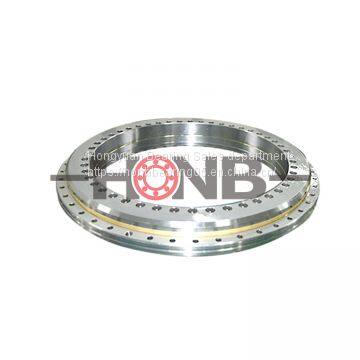

YRT460 China YRT high precision bearings manufacturers
US$ 1 - 10000
/ Piece
1 Piece(Min. Order)
- Shanghai/Qingdao
- T/T PayPal Other
- 5 days
You May Like
Product Details
| Brand Name | HONB | Place of Origin | China | |
| Model Number | YRT460 | Feature | Other, Axial and Radial bearings | |
| Seals Type | No seals | Outside Diameter | 600, 600 | |
| Bore Size | 460, 460 | Gear Options | Nongeared |
Product Description
YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high stiffness and the Union loads with low speed such as index tables and revolving milling heads.See Fig
*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
Contact person: Anna Feng
Tel: +86 379 63086182
Fax:+86 379 63086177
Fax:+86 379 63086177
Mob: +86 13598495189
Whatspp: +86 13598495189
Skype: bearing3_01
Whatspp: +86 13598495189
Skype: bearing3_01
Website:
| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit：mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT460 | 460 | 600 | 70 | 46 | 24 | 22 | 560 | 482 | 580 | 10 | 15 | 8.2 | 46 | 10 | 45 |
| Type | Screw connection QTY | Connect screws holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed5） | Friction Moment3） | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT460 | 2 | M12 | 3 | 48*7.5° | 34 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 |
