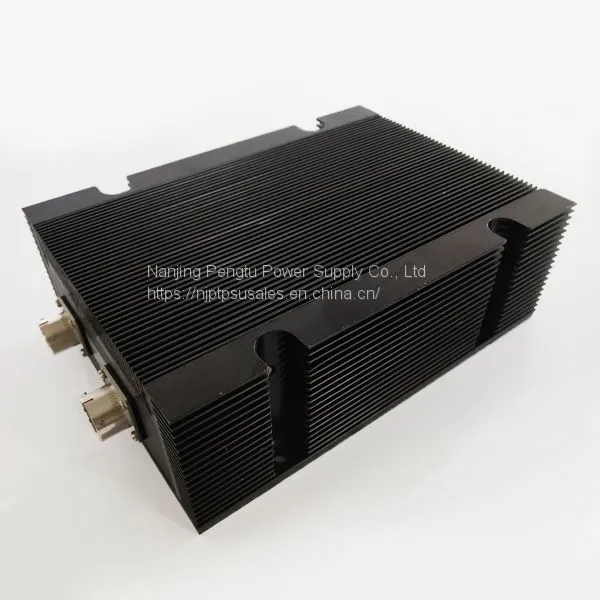

PAH-D series 220V to 24V 1000W single AC/DC converter.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value):176～264 VAC PFC 100-240 VAC for optional
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Output Current Limited ……120%(Type)
●Output current ………6-60A for optional
●Output voltage ………5-48V
●Power …………800-1000W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45+105℃
Military: -55-+105℃
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
●Input over voltage protection
※Model selection
Input V. (Vac) |
Input V. range (vac) |
Output V.(V) |
Output Curr. (A) |
Ripple &noise pk-pk (mv) |
Efficiency (Typ) |
Models |
|
SING |
220 |
176-264/100-240 |
12 |
66.6 |
150 |
91% |
PAH800-220S12-D |
220 |
176-264/100-240 |
24 |
41.6 |
300 |
92% |
PAH1000-220S24-D |
|
220 |
176-264/100-240 |
48 |
20.8 |
300 |
92% |
PAH1000-220S48-D |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.

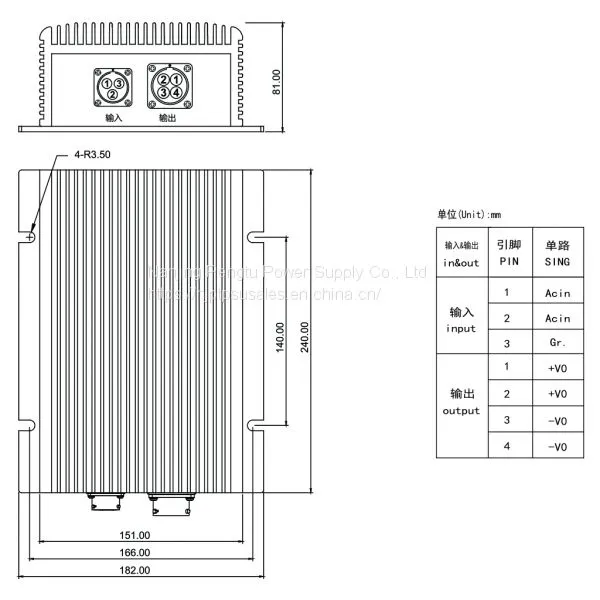

※Mechanical Drawing & Pin definition
