GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light

GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light thumbnail-1
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light thumbnail-2
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light thumbnail-3
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light thumbnail-4
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light photo-1
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light photo-2
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light photo-3
GOGO Pneumatic Single Coil Solenoid Valve Air 4V410-15 Port 1/2" BSP 24V DC 5 Way Electric Control Valve With Plug Red LED Light photo-4
US$ 12.13 - 13.48 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
GOGOATC
Place of Origin:
China
Model Number:
4V410-15
Contact Supplier Request Quote Chat Now
Ningbo Fenghua Gogo Automatic Trading Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOGOATC
Place of Origin China
Model Number 4V410-15
Type Valves



Product Description

GOGO Pneumatic solenoid valve 4V410-15 Port 1/2" BSP

5/2 way electric control valve with Plug type red LED light

Select China Post Air Mail Please note*



China Post Air Mail exists the problem of high risk of packet loss and Long time ,

we suggest that you use express transportation(EMS/DHL/Fedex/TNT/UPS) for safe and fast .

Voltage: 110V AC ,220V AC ,380V AC ,24V AC ,12V DC ,24V DC .

 Note: If you do not remark voltage of you need , you will received 24V DC ,thanks .

 1.Specification

Model

4V410-15

Working voltage

 24V DC

Position and way NO.

5/2 way

Effective area

50mm2

Port size

 Air inlet=Air outlet=Exhaust G1/2"

Fluid

40 micron filtered air

Operation

Inside pilot type

Operating pressure

0.15~0.8MPa

of pressure

1.2MPa

Temperature

5~50 C

Lubrication

No required

Power consumption

AC:2.5VA DC:2.5W

Coil insulation &protection grade

Class F.IP65

Electriacl entry

Connector

Higest action frequency

5 cycle/second

Working Voltage

DC12V DC24V AC110V AC220V AC24V AC380V







GOGO Pneumatic single coil solenoid valve air 4V410-15 Port 1/2" BSP 24V DC 5 way electric control valve with Plug red LED lightGOGO Pneumatic single coil solenoid valve air 4V410-15 Port 1/2" BSP 24V DC 5 way electric control valve with Plug red LED light

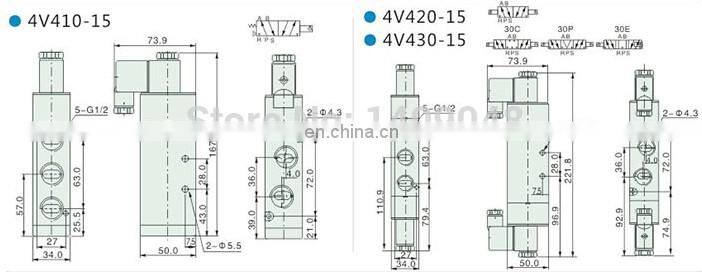

2.Dimensions

GOGO Pneumatic single coil solenoid valve air 4V410-15 Port 1/2" BSP 24V DC 5 way electric control valve with Plug red LED light
