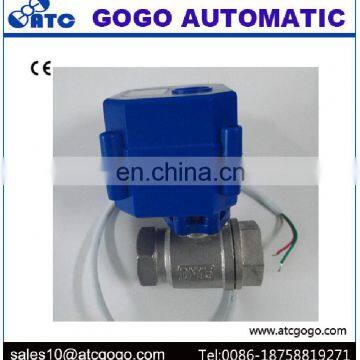

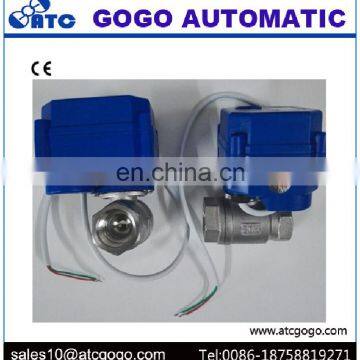

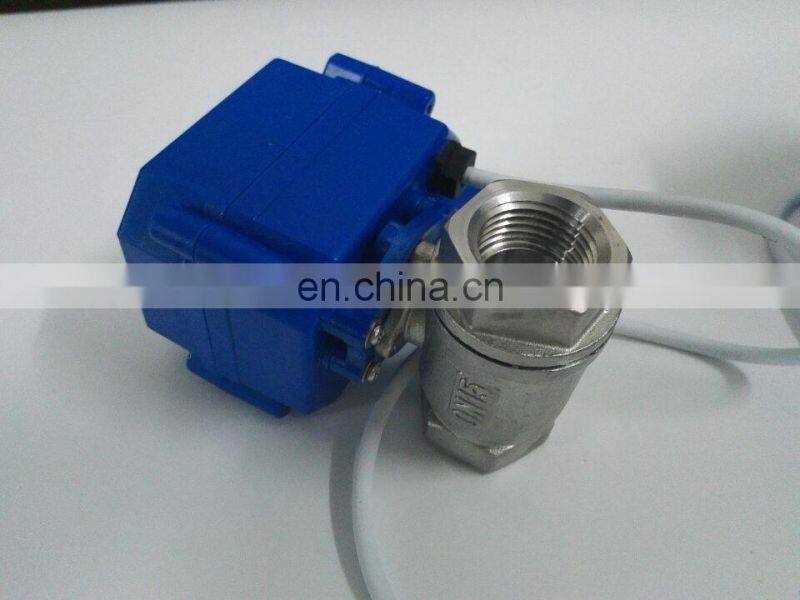

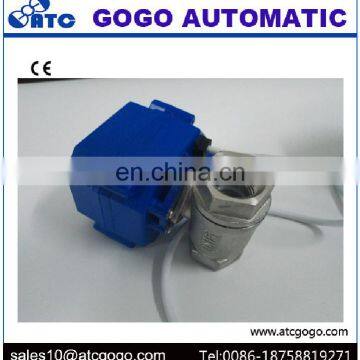

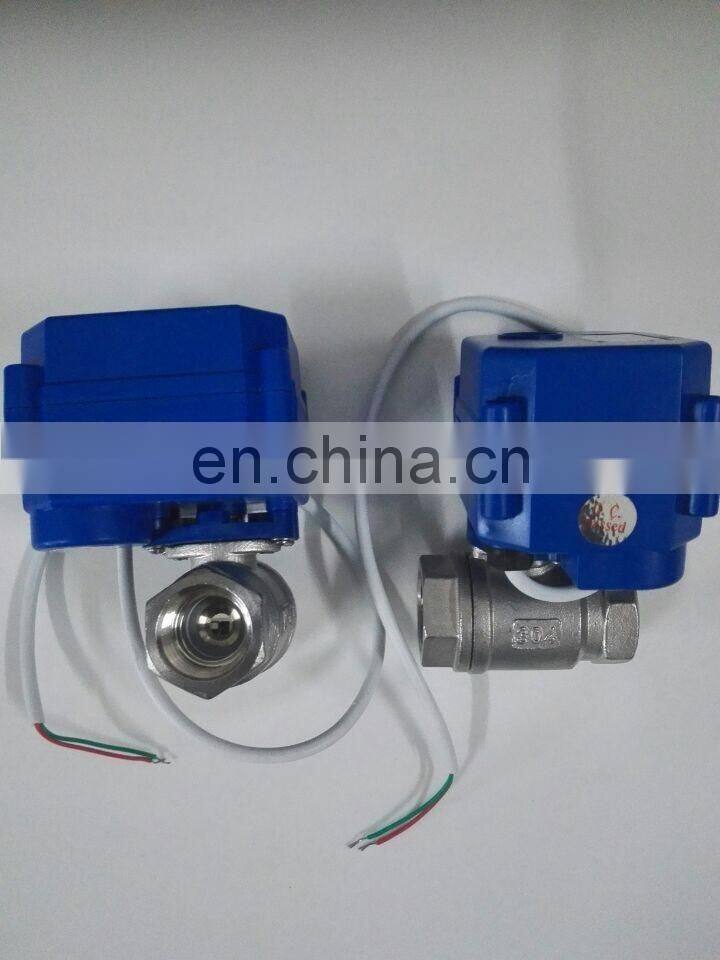

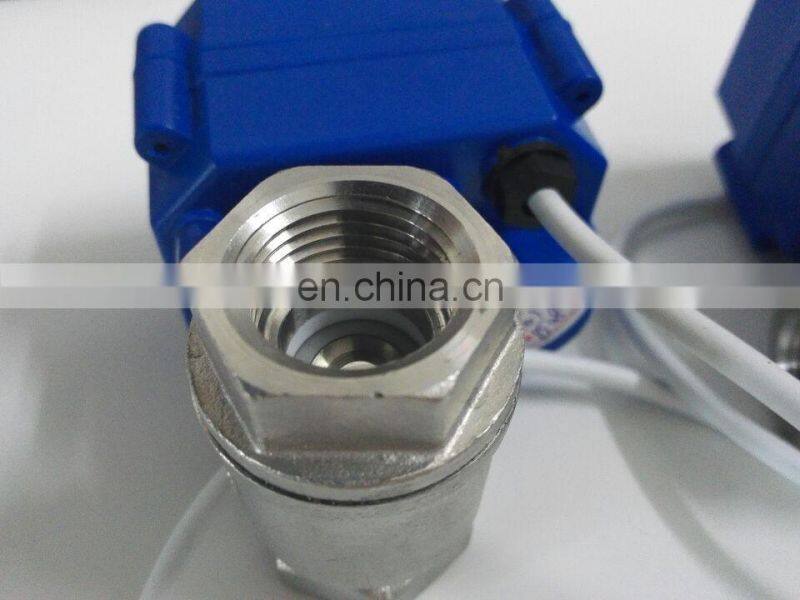

cwx-15n electric ball stainless steel valve
Specification
Product size : G (bsp) 1/2"-1"
Maximum working pressure : 1.0Mpa
circulation means : fluid, air
rated voltage : DC 3-6V 12v AC/DC9-24V AC220V
Wiring Control Methods : CR-01,CR02 ,CR03 ,CR04 , CR05
Working current : 80mA
Open / close time : 3-5 S
Life time : 100000 veces
Valve body material : SS304; Brass
Actuator Material : engineering plastics
Seal Material : EPDM y PTFE
Rotation of actuator : 90
Max. par force : 2 n. m
Cable length : 0.5 m
Ambient temperature :-15 ~ 50
Liquid temperature : 0 ~ 80C
Manual override : No
Indicator : No
Protection class : IP65
Features
CWX miniature actuators are using alloy metal, smart shape, the transmission system adopt new technology and made of metal gears with high torque. A variety of control, both recognize the remote signal and can feedback signal to the intelligent unit.
(suitable for)
IC card meters, heat energy meters, air-warm valve.
HAV and fire works
Water equipments, auto-control water system, industrial mini auto equipment..
Irrigation equipment
Drink water equipment.
(products Characteristic)
Smart shape, Perform reliably, large output torque, as long as 50000-100000 times.
Muti angel accembling, convenience for all kinds of requirements.
Float ball design, no leak, most suitable for heavy dirt and long time no action.
The conditions that solesoid valve can not be worked.
Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depand on the different type)
High protection class, can be worked in moist conditions.
(parameters)
| Model | diameter | control ways | open/close time | rated voltage | working current | nominal torque |
| CWX-20P | DN15-32 | CR01 CR02 CR03 CR04 CR05 CR06 | 5S |
DC3-6V AC/DC9-24V AC220V AC85-265V |
<80mA | 2N*M |
| CWX-10P/S | DN15-32 | CR01 CR02 CR03 CR04 CR05 CR06 | 3S/5S |
DC3-6V AC/DC9-24V AC220V AC85-265V |
<80mA | 2N*M |
| CWX-60P/S | DN15-32 | CR01 CR05 CR06 | 15S/20S | DC12/24V AC220V AC85-265V | <100mA | 6N*M |

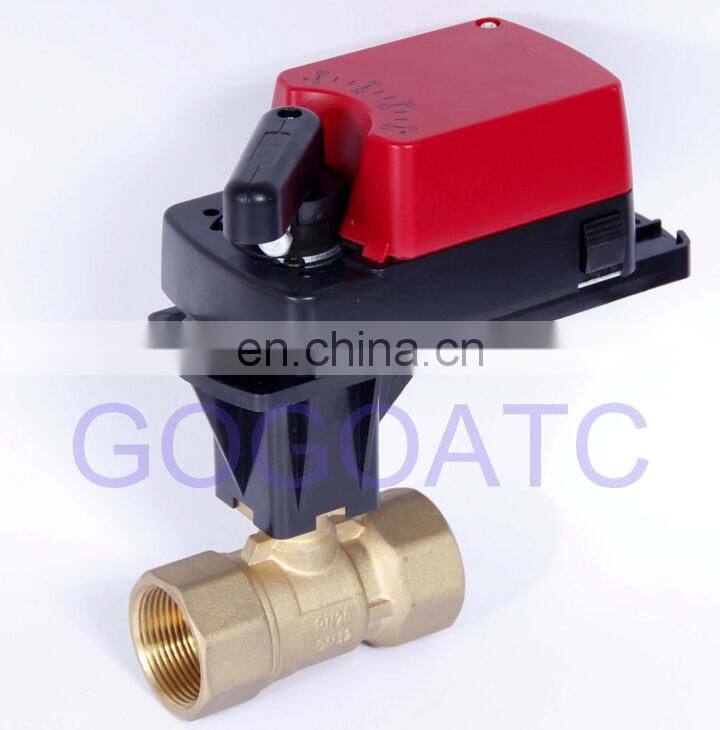

Quick water valve dedicated to HVAC control system off control ,Valve actuator and valve by the two parts, easy to disassemble the valve for troubleshooting and maintenance. Actuator synchronous electric drive, stable operation, built-in limit contact points, enabling the valve fully open or fully closed when the power failure, the valve body is brass forging

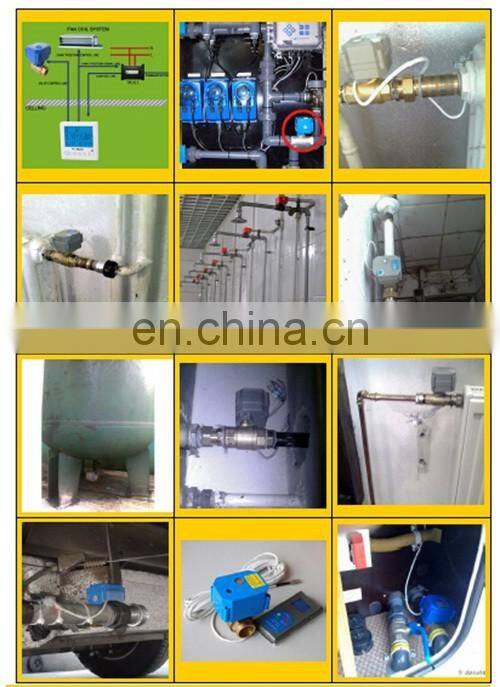

Products Scope:
1.IC card smart meter, heat meter, solar instruments;
2. Central air-conditioning fan coil, fire sprinkler;
3. Universities Saving water, automatic control systems, industrial automation and other small devices
4. The water-saving appliances, drinking water equipment, water heaters, solar water heaters, washing machines, industrial humidifier.
Founded in July,2014,Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the Zhejiang Ningbo Science &Technology zone ,a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnels who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
Main products of our company : automatic parts, pneumatic solenoid valve , air water solenoid valve, hydraulic valves, gear piston or vane pumps , fittings connectors , temperature pressure transmitter , temperature controller , PLC , DCS parts , hardware stainless steel or brass or plastic parts , etc.
1 years warranty
Maintenance instructions:
1. attention to check the use of components, in the transport process is damaged, and then install the use of.
2. When installing, please note that the gas flow direction and the takeover are correct.
3. when using, please strictly comply with the technical requirements, such as the operating voltage, operating frequency, working pressure, the use of temperature, the whole machine debugging, it is recommended to use a manual device debugging, and then through power debugging.
4. Please pay attention to dust, it is recommended to install the exhaust port or muffler muffler throttle.
5. When connecting pipe, pay attention to only release the strap around the joint may not exceed the end face of the tooth, and pay attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil, etc
Packaging & Shipping
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
