Specialized in PCB Assembly More Than 15 Years (PCBA)

Specialized in PCB Assembly More Than 15 Years (PCBA) thumbnail-1

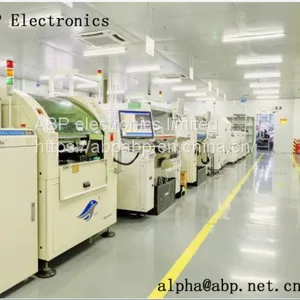

Specialized in PCB Assembly More Than 15 Years (PCBA) thumbnail-2
Specialized in PCB Assembly More Than 15 Years (PCBA) thumbnail-3
Specialized in PCB Assembly More Than 15 Years (PCBA) thumbnail-4
Specialized in PCB Assembly More Than 15 Years (PCBA) thumbnail-5
Specialized in PCB Assembly More Than 15 Years (PCBA) photo-1
Specialized in PCB Assembly More Than 15 Years (PCBA) photo-2

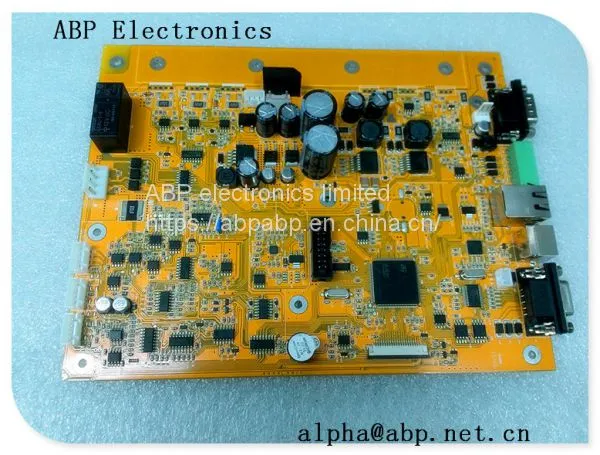

Specialized in PCB Assembly More Than 15 Years (PCBA) photo-3
Specialized in PCB Assembly More Than 15 Years (PCBA) photo-4
Specialized in PCB Assembly More Than 15 Years (PCBA) photo-5
US$ 0.1 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ABP electronics
Place of Origin:
China
Surface Finishing:
HASL，HASL(Lead Free)，Immersion Gold，Immersion Tin，Immersion Silver，OSP，Hard Gold( up to 100u”)
Contact Supplier Request Quote Chat Now
ABP Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen, China
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ABP electronics
Place of Origin China
Surface Finishing HASL，HASL(Lead Free)，Immersion Gold，Immersion Tin，Immersion Silver，OSP，Hard Gold( up to 100u”)
Min. Line Spacing 3mil
Min. Line Width 3mil
Min. Hole Size 0.1mm
Board Thickness 0.2mm-6.0mm
Copper Thickness 18um-210um（HOZ-6OZ）
Base Material FR4,FR5,High-Tg，Halogen Free，Rogers，Cem-1，Cem-3,Taconic，Rigid-flex，Teflon，Aluminum PCB, etc.

Product:

1.      Layers : 2 to 30 layers rigid PCB

2.      Materials: FR4,FR5,High-Tg，Halogen Free，Rogers，Cem-1，Cem-3,Taconic，Rigid-flex，Teflon，Aluminum PCB, etc.

3.      Board Thickness: 0.2mm-6.0mm

4.      Board Thickness Tolerance: ±0.10mm

5.      Min. Track Width: 3mil

6.      Min. Track Space: 3mil

7.      External Cu Thickness: 18um-210um（HOZ-6OZ）

8.      Internal Cu Thickness: 18um-210um（HOZ-6OZ）

9.      Drilling Bit Size(CNC): 0.15mm-6.50mm

10.  Finished Hole Dimension: 0.1mm-6.0mm

11.  Hole Tolerance: ±0.05mm

12.  Hole Position Tolerance: ±0.05mm

13.  Aspect Ration: 10:1

14.  Max. Panel Dimension: 646mm*1200mm

15.  Solder Mask: Green，Blue，White，Black，Red，Yellow，Purple, etc.

16.  Impedance Control: ±10%

17.  Surface Finishing: HASL，HASL(Lead Free)，Immersion Gold，Immersion Tin，Immersion Silver，OSP，Hard Gold( up to 100u”)

18.  Special Requirement: Buried & Blind holes, Counter Sink, Counter Bore, Rigid-flex board, etc.



Product Tags: PCBA , PCB assembly , PCB
