- DATONG XINCHENG NEW MATERIAL CO., LTD.
-
Da tong, Shanxi, China
- Main products: graphite blocks, graphite round, graphite electrode, graphite rod, graphite sheet, graphite powder, Activated carbon for Desulfurization and Denitrification, graphite crucible

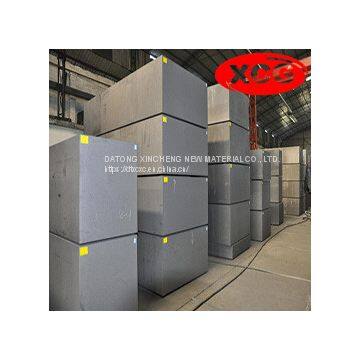

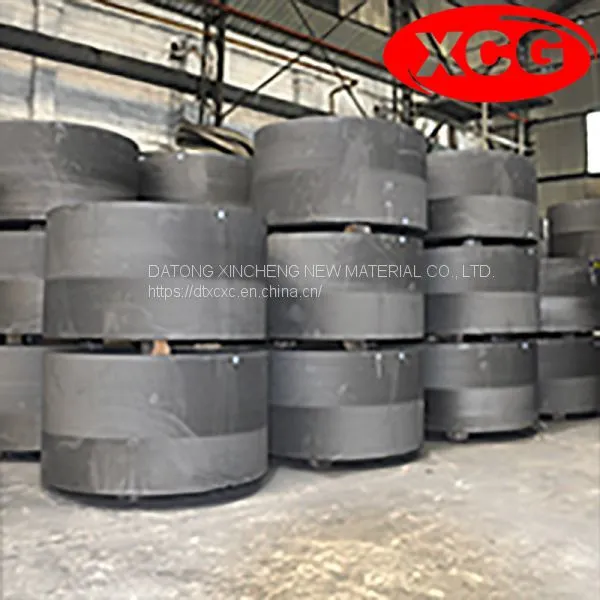

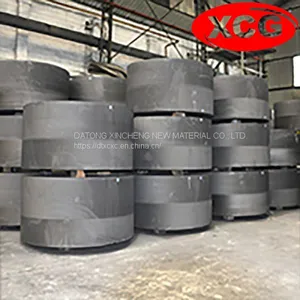

graphite blocks, graphite round
- 210000000 Ton / Tons per Month
- T/T
You May Like
Product Details
| Brand Name | GRAPHITE BLOCK, GRAPHITE ROUND | Place of Origin | China | |
| Model Number | GSK,GSY | Application | Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, etc. Furnace parts :boats and trays for sintering, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, anodes for electrolysis of metals. cathodes in aluminum electrolysis cells. Parts for heat exchangers, Crucibles for melting and reduction ect. | |
| Dimensions | (MM):400X400X1800, 500X500X1800, 650X407X1800/2200, 859X407X1800/2100; 720X630, 1120X584, 1232X584, 1400/1600X500 | Resistance (μΩ.m) | ≦11μmΩ or ≦9 μmΩ | |
| Compressive Strength | ≧25MPa or ≧30MPa | Bulk Density (g/cm³ ) | ≧1.60 or ≧1.72 |
Product Description
ProductionRaw material: high quality petroleum coke & coal tar pitch.
Vibration-molded, carbonized and graphitized under precise technical control.
Usually machined to specific shapes for various purposes.
Applications
1. Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, etc.
2. Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.
3. Anodes for electrolysis of metals.
4. Cathodes in aluminum electrolysis cells.
5. Parts for heat exchangers.
6. Crucibles for melting and reduction.
7. Boats and trays for sintering.
Programmable properties
Medium-grained, uniform and dense structure
High thermal and chemical resistance
Good thermal conductivity
Low coefficient of thermal expansion
Minimal wettability to molten metals
Size：
400×400×1800 | 500×500×1800 | 650×407×1800/2200 | 850×407×1800/2200 |
660x330x3200 | 500x500x3200 | 940x500x2580 | 940x500x2850 |
∅720x630 | ∅1120x584 | ∅1232x584 | ∅1400x500 |
∅1600x500 | ∅910x584 | ∅850x450 | ∅960x630 |
we can produce as per your requirements for the sizes.
