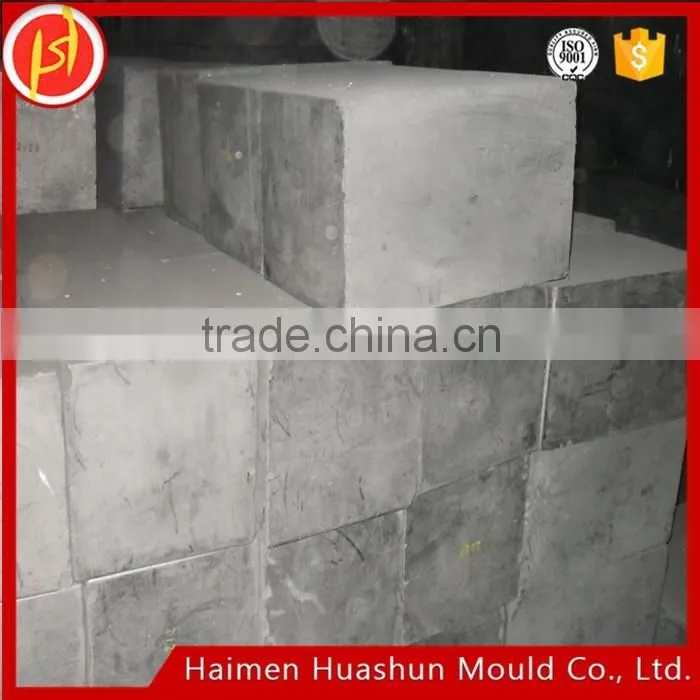

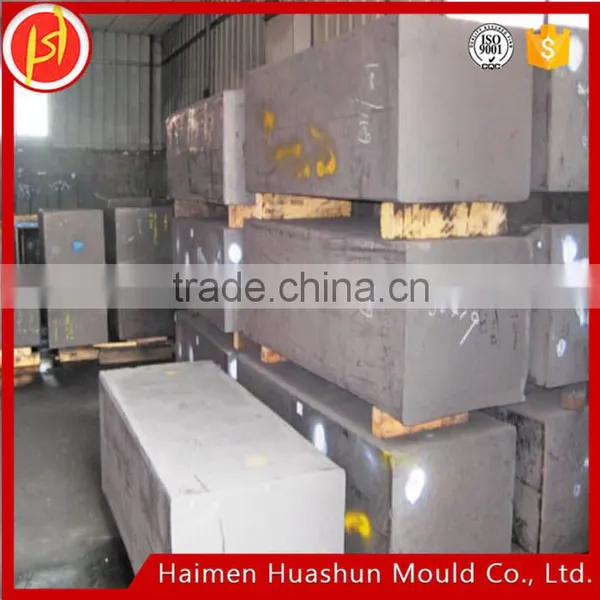

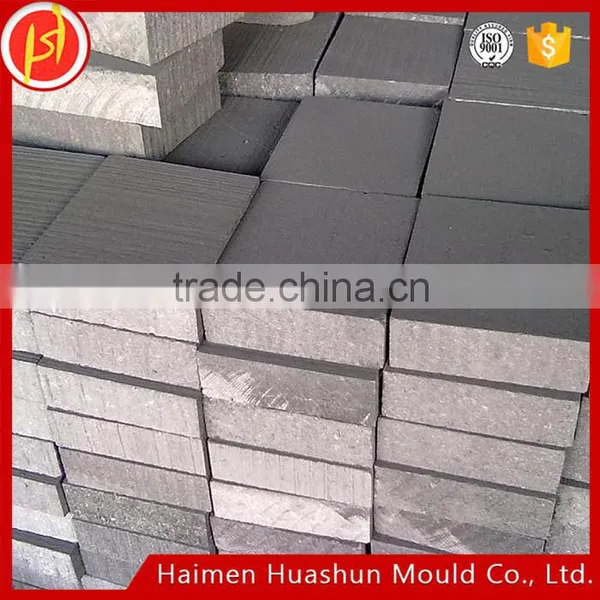

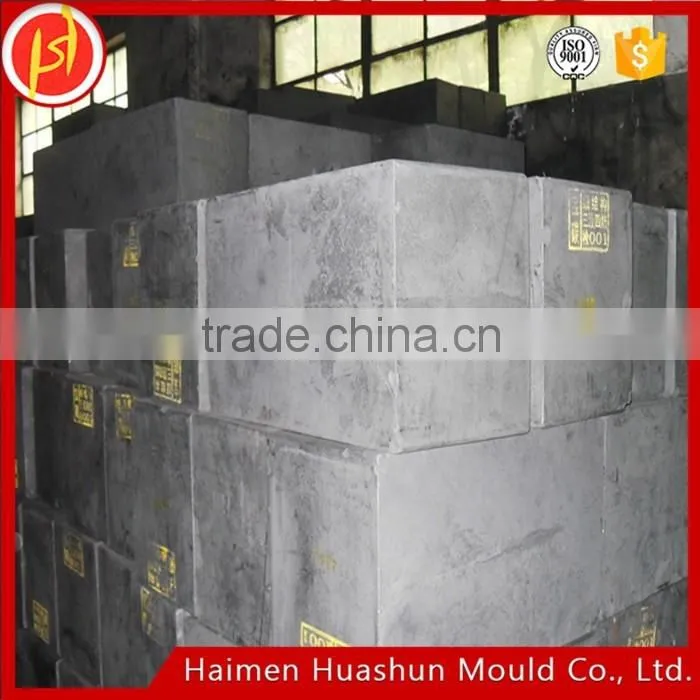

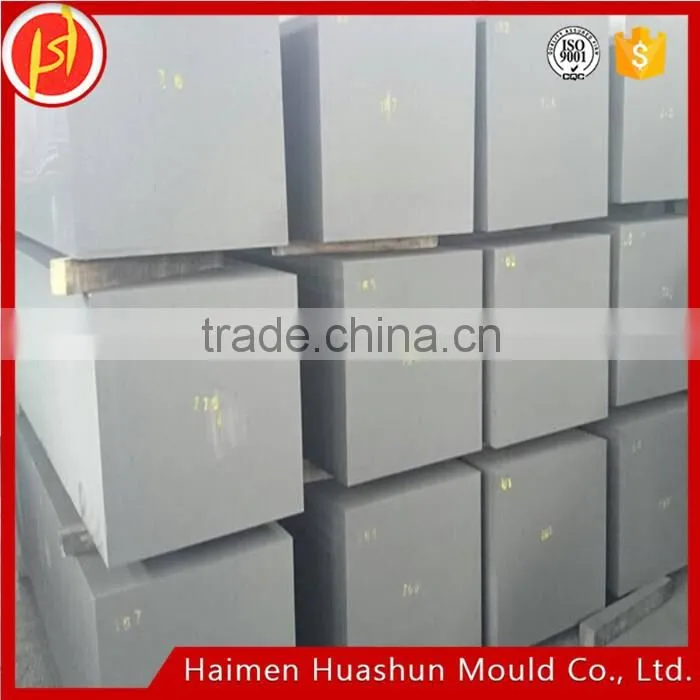

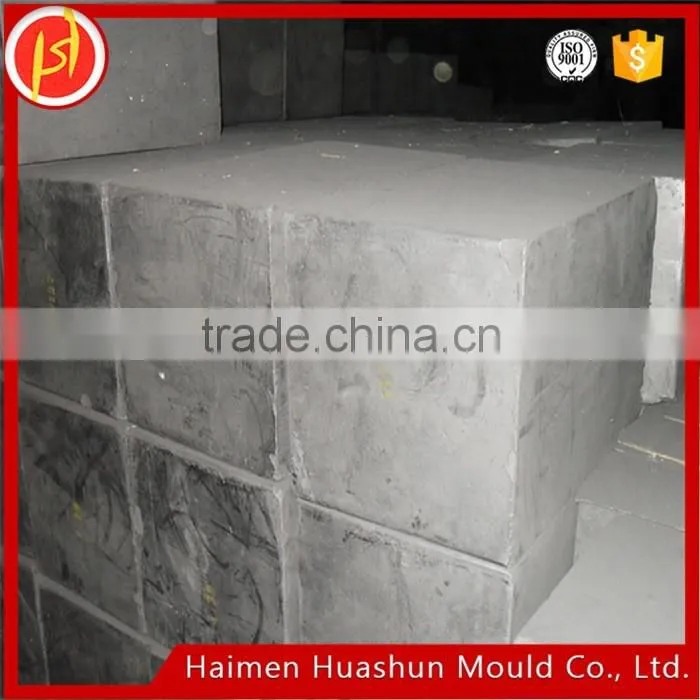

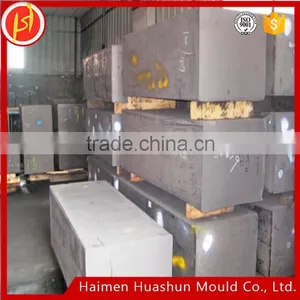

Graphite Block
We can supply various sizes of graphite blocks with high strength(50~100Mpa) high purity(99.99%)and high density(1.8~1.90g/cm3). It has the properties of fina grains, uniform structure, and it is typically used as the construction materials of nuclear reactor, the heater of vacuum furnace and high-frequency furnace, the crucible and mould ofr melting metals, the internal lining of reduction furnace, mechanical sealing ring in the erosive medium and industry ambiance.
Specifications:
Properties |
Unit |
MG-1 |
MG-2 |
MG-3 |
Bulk Density |
g/cm3 |
1.80 |
1.88 |
1.90 |
Ash content |
% |
0.08 |
0.05 |
0.04 |
Compressive Strength |
Mpa |
65 |
80 |
95 |
Flexural Strength |
Mpa |
42 |
48 |
55 |
Specific Resistance |
μΩ-m |
15 |
14 |
12 |
Grain Size |
mm |
0.1 |
0.08 |
0.04 |
Sizes(mm):
310×310×120, 310×310×150, 310×310×200, 330×260×120, 330×260×150, 450×200×135, 450×200×150, 520×410×200, 750×200×135, 750×200×150, 750×200×200, 850×320×135, 850×320×150, 850×320×200, 850×320×235, 850×320×250
Other sizes could be machined as per your requirements. If you need, please contact us with your request.
