High Level Atc Cnc Machine 5 Axis Cnc Router Machine

Jinan Rui Ye-Feng CNC Equipment Co.,Ltd Business license
High Level Atc Cnc Machine 5 Axis Cnc Router Machine thumbnail-1
High Level Atc Cnc Machine 5 Axis Cnc Router Machine thumbnail-2
High Level Atc Cnc Machine 5 Axis Cnc Router Machine thumbnail-3
High Level Atc Cnc Machine 5 Axis Cnc Router Machine thumbnail-4
High Level Atc Cnc Machine 5 Axis Cnc Router Machine thumbnail-5
High Level Atc Cnc Machine 5 Axis Cnc Router Machine photo-1
High Level Atc Cnc Machine 5 Axis Cnc Router Machine photo-2
High Level Atc Cnc Machine 5 Axis Cnc Router Machine photo-3
High Level Atc Cnc Machine 5 Axis Cnc Router Machine photo-4
High Level Atc Cnc Machine 5 Axis Cnc Router Machine photo-5
US$ 3000 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
RAPIDTECH
Place of Origin:
China
Certification:
CE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
8 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RAPIDTECH
Place of Origin China
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 2 years
Weight 4500KG
Dimension(L*W*H) 2500*2400*2400
Voltage 220V/380V
Condition New
Power(W) 25
CNC or Not CNC
Main Features

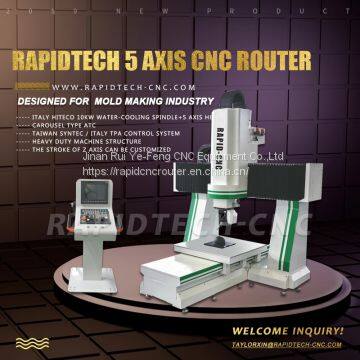

RAPID 5 axis CNC router is perfect for 3D mold industry.

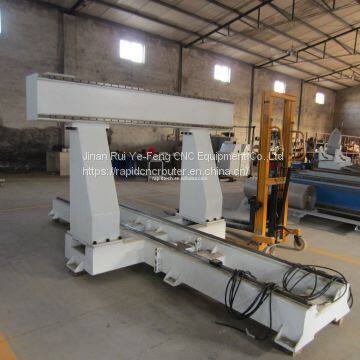

Machine is designed for high-speed, heavy-duty routing, Its all-steel frame means it's durable and long-lasting, and that vibration gets eliminated so you always have a nice and smooth cut.

Z axis can up to 700-1000mm, which allows extra large parts to be processed, and this size can be changed according to your practical needs.





Name
5 axis cnc router machine

Function

A variety of wood molds, foam, soft metal, polyurethane, glass fiber, carbon fiber and other composite materials such as slotting, chamfer, milling, hook groove and other multi-process high-precision, high-efficiency processing.

Stroke of every axis
X axis working stroke
1200mm
Y axis working stroke
2000mm
Z axis working stroke
550mm

Z axis working stroke
300mm

A axis
±120°

C axis
±213°

Feeding speed
Fast feeding speed
X axis
15-35m/min
Y axis
15-35m/min
Z axis
5-10m/min
A axis
80°/SEC
C axis
90°/SEC
Cutting Speed
X axis fast feeding speed
6-10m/min
Y axis fast feeding speed
6-10m/min
Z axis fast feeding speed
3-5 m/min
working table
aluminum vacuum absorption working table
/t-slot working table
/PPT customized working table
Spindle
type
HITECO spindle

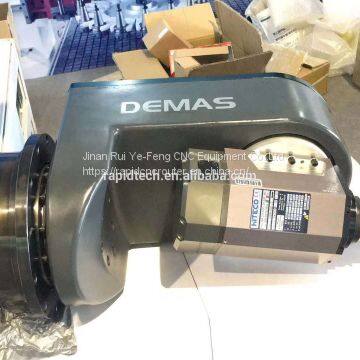

five axis head
DEMAS L-shape 5 axis electric head
ATC type
carousel type ATC
Cooling type
water-cooling
machine's precision
Re-positioning precision
±0.05mm
NC device
type
German SIEMENS/Taiwan SYNTEC/Shanghai Lynuc system/Italy OSAI
specification
please refer to related information
servo motor and driver
Japan YASKAWA
Bus absolute value type
console
structure
control cabinet with universal wheel
Position
front of machine
Product Application

● Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.

● 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.

5 axis cnc router machine

5 axis cnc wood carving machine

5 axis cnc wood router

5 axis cnc woodworking machine

5 axis machine center

5 axis milling machine

5 axis router



Product Tags: 5 axis cnc router machine , 5 axis machine , 5 axis , 5 axis cnc , cnc 5 axis machine , 5 axis cnc router
