Overview
With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting and lock hole making and expanding for the wooden door panels with complicated processing requirement.
An all-rounder work center suitable for milling, routing, drilling, side milling, sawing and other applications.
Advantage
1. Stable moving gantry design.
2. Double work zones guarantee non-stop work cycle--operator can load and unload work-piece on one zone without interrupting the machine operation on the other.

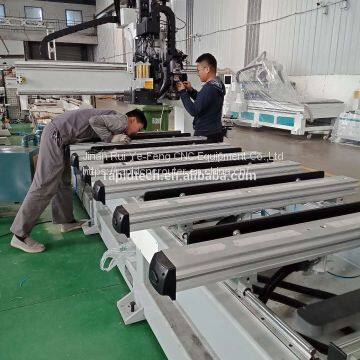

3. The adjustable Mufti-Clamp and movable beams are the perfect tool for manual fixing of small and medium-sized work pieces.
4. Automatic pop-up pins will help machine position sheet quickly and precisely.
Application
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
High performance cnc router machine for woodworking drilling machine for sale
Configuration
Model | RD-3011 |
Working size | 1100*3000mm |
Max feeding height | 300 mm |
Transmission | X/Y axis with rack, Z axis with ball screw |
Guide rail | Taiwan HIWIN linear guide rail |
Rack | German WMH screw rack |
Machine structure | Single arm type |
Spindle power | HSD 6KW Air-cooling Spindle |
ATC type (Auto tool changing type) |

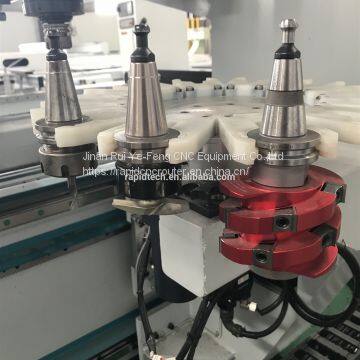

Carousel type ATC |
Boring unit | Italy FAM 7+2 7 vertical drills+2 horizontal drills |

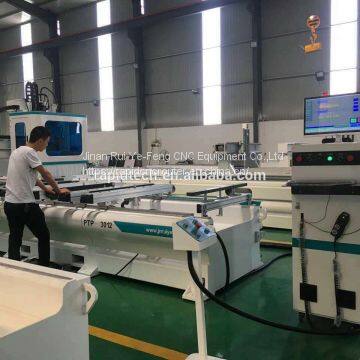

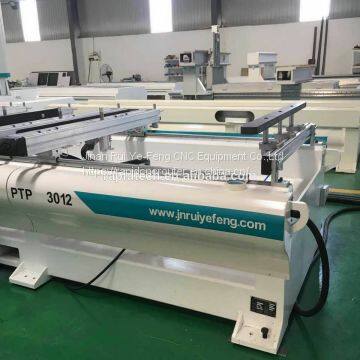

WORKING TABLE TYPES | PTP working table German SCHMALZ vacuum clamp system standard type |
Max spindle power | 18000RPM |
Max speed | 45m~60m/min |
Max working speed | 20m~30m/min |
Working precision | ±0.03mm |
Reposition precision | ±0.003mm |
Driver motor | Japanese YASKAWA Servo motor with Japanese SHIMPO reducer |
Driver | Japanese YASKAWA Servo Driver |
Frequency Converter | German Rexroth Frequency Converter |
Voltage | Customize |
Vacuum pump | Taiwan ECROVAC Oilless Vacuum Pump |
Operation system | Taiwan SYNTEC System |
Electric | French Schneider Electric |
Accessories | With auto positioning cylinder( pop up pins ) |
With DOUBLE BAG dust collector 7.5hp | |
Auto lubrication system | |
Tool box | |
Command code | G cord*.u00*.mmg*plt, HPGL |
CE standard 3d milling machine cnc router engraver drilling and milling machine
