CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool

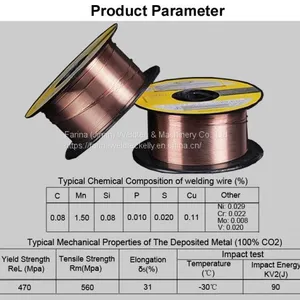

CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool thumbnail-1

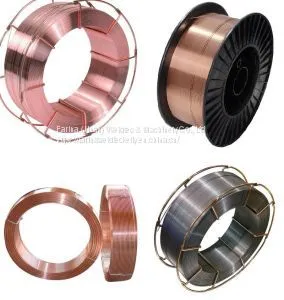

CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool thumbnail-2

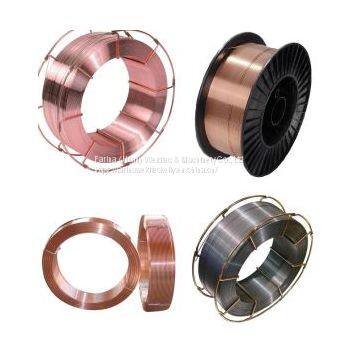

CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool photo-1
CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool photo-2
US$ 860 - 920 MOQ: 20 Tons
Key Specifications
Get Latest Price
Brand Name:
FARINA
Place of Origin:
China
Model Number:
CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool
Contact Supplier Request Quote Chat Now
Farina (Jinan) Weldtec & Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FARINA
Place of Origin China
Model Number CO2 Shielded Welding Wire Er70s-6 1.0mm*15kgs/Spool
Material Copper / Copper Alloy
Diameter 0.6mm , 0.8mm ,0.9mm ,1.0mm ,1.2mm
Weight 1KG , 4.5KG ,5KG ,15KG ,20KG
Application ISO9001
Flux Content NO

ER70S-6 (copper coated)
Introduction: Strong resistance to surface scales and oil stains on the base
metal. It has low blowhole sensitivity.

Uses: Used for welding 500 MPa low alloy steel single and muti-pass
welding; also for high speed thin plates, pipe line steel welding. Suitable for manual
welding, automatic welding and robot welding, such as oil machinery, heavy
crane machinery, pressure vessels, oil-chemical vessels, ship body, bridge,
construction steel structure, ect.
Typical Chemical Composition of weld metal (%)

  C   Mn   Si   P   S  Cu    other

0.07 1.53 0.85 0.011 0.010 0.12 Ni: 0.029
Cr: 0.022
Mo: 0.008
V: 0.010



-Typical Mechanical Performance of The Deposited Metal (CO2 Shielding Gas)

Yield Strength ReL/Rp0.2 (Mpa)
Tensile Strength
Rm (Mpa)
 Elongation
δ5(%)		 Impact test
Temperature
(ºC)		 Impact Energy
KV2(J)
425 540 31 -30ºC 89


Size and recommended current range

Diameter 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm 1.6mm
Amps 40~100 50~140 50~200 50~220 80~350 120~550


Packing terms

Diameter 0.6mm 0.8mm 0.9mm 1.0mm 1.2mm 1.6mm 2.0mm
Plastic spool 1kg D100mm √ √ √ √ √

Plastic spool 5kg D200mm √ √ √ √ √ √
Plastic spool 15kg D270mm √ √ √ √ √ √ √
Metal basket 15kg K300mm √ √ √ √ √ √ √
Drum packing 100kg
√ √ √ √ √
Drum packing 250kg/350kg
√ √ √ √ √ √



Packing terms

Diameter 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm
TIG/1000mm x 5kg/tube √ √ √ √ √ √
TIG/1000mm x 10kg/tube √ √ √ √ √ √
