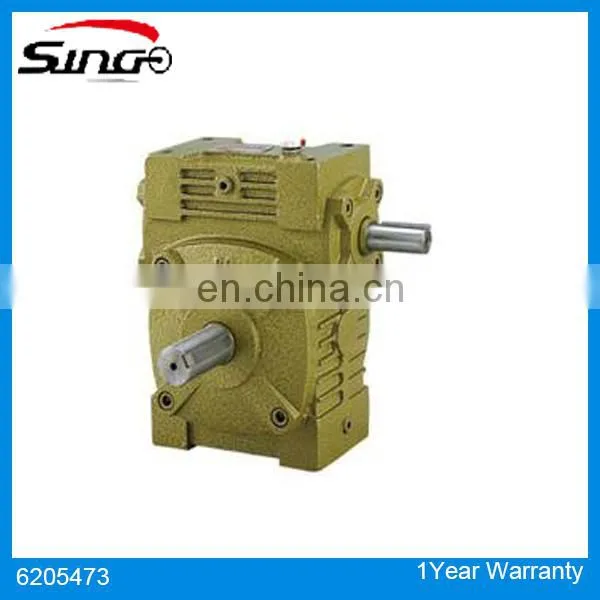

Product Name: WPW 40- WPW 250 Worm Gear Speed Reducer
Advantages of WPDS series worm gear box:
1. Compact structure, high efficiency,
2. Mechanical properties, heat exchanger,
3. Easy installation, flexible connection form,
4. Superior performance, easy maintenance,
5. Transmission speed, torque, withstand high overload ability,
6. Smooth operation, low noise, durable, probation, safety and reliability
Working conditions:
1, Worm reducer worm speed cannot exceed 1500r / min.
2, The working environment temperature -40 ℃ - + 50 ℃, when the working ambient temperature is below 0 ℃, starting before the oil must be heated to above 0 ℃, When the working environment temperature is higher than 40 ℃, cooling measures must be taken.
3, Worm gearbox can be both positive and negative rotation of the shaft.
| Product Name | WPW Worm Gear Speed Reducer |
| Size | WPW 40- WPW 250 |
| Ratio | 10,15,20,25,30,40,50,60 |
| Color | Green,Brown or as customized |
| Weight | 4-340KG |
| Input/output shaft | Solid or hollow |
| Lifetime | More than 15000 hours |
| Noise (MAX) | 60~68dB |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Packing | Paper Carton,Plywood box / per set(With foam board inside) |
| Price Term | FOB Ningbo Or Shanghai |
| with verious motors: | Can connect |
| Warranty | 1 year |
| Imput Power | 0.40-8.62kw |
| Usages | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics… |
