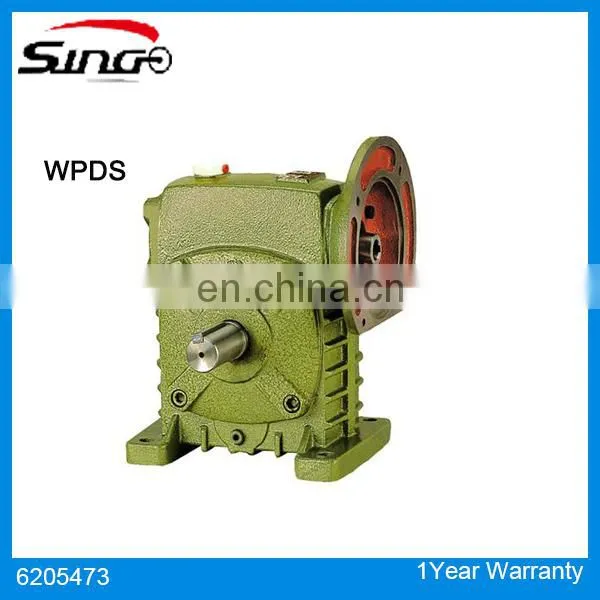

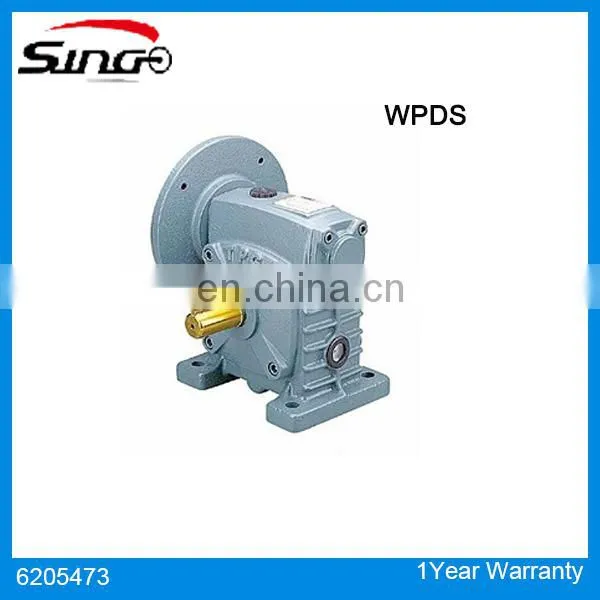

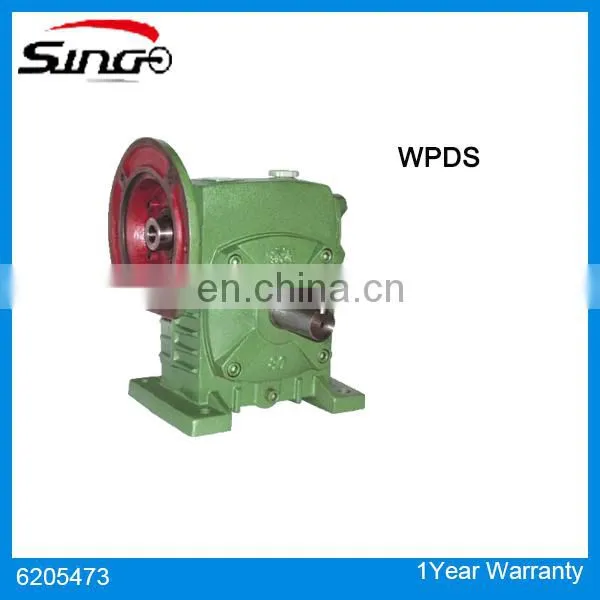

WPDS Bevel Gearbox Speed Reducer Gears With Motor Model 100
US$ 20 - 690
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Singo
Place of Origin:
Zhejiang, China
Model Number:
WPDS 100
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Singo WPS Speed Gear Reducer Box Model 120US$ 20 - 690MOQ: 1 Piece -
High Quality WPS 100 250cc Gear Box Speed Reduction BoxUS$ 20 - 690MOQ: 1 Piece
-
Singo WPA 200 Gear Speed ReducerUS$ 20 - 690MOQ: 1 Piece
-
Singo WPA 50 Single Worm Gear Speed Reducer GearboxUS$ 20 - 690MOQ: 1 Piece
-
WPA 100 Worm Gear Speed ReducerUS$ 20 - 690MOQ: 1 Piece
Brand Name
Singo
Place of Origin
Zhejiang, China
Model Number
WPDS 100
Rated Power
0.18-15kw
Output Speed
24-140Rpm
Input Speed
1400rpm
Output Torque
19-2371Nm
Gearing Arrangement
Worm
Product Description
Product Name : WPDS 40- WPDS 250 Worm Gear Speed Reducer
Features:
1) Small size, compact, lightweight and saves space for mounting
2) Runs steadily with low noise
3) High reliability and high efficiency
4) Superior performance, easy maintenance
Working conditions:
1, Worm reducer worm speed cannot exceed 1500r / min.
2, The working environment temperature -40 ℃ - + 50 ℃, when the working ambient temperature is below 0 ℃, starting before the oil must be heated to above 0 ℃, When the working environment temperature is higher than 40 ℃, cooling measures must be taken.
3, Worm gearbox can be both positive and negative rotation of the shaft.
| Product Name | WPDS Worm Gear Speed Reducer |
| Size | WPDS 50-WPDS 250 |
| Ratio | 10,15,20,25,30,40,50,60 |
| Color | Green,Brown or as customized |
| Weight | 8-396KG |
| Input/output shaft | Solid or hollow |
| Lifetime | More than 15000 hours |
| Noise (MAX) | 60~68dB |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Packing | Paper Carton,Plywood box / per set(With foam board inside) |
| Price Term | FOB Ningbo Or Shanghai |
| with verious motors: | Can connect |
| Warranty | 1 year |
| Imput Power | 0.18-15kw |
| Usages | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics… |
