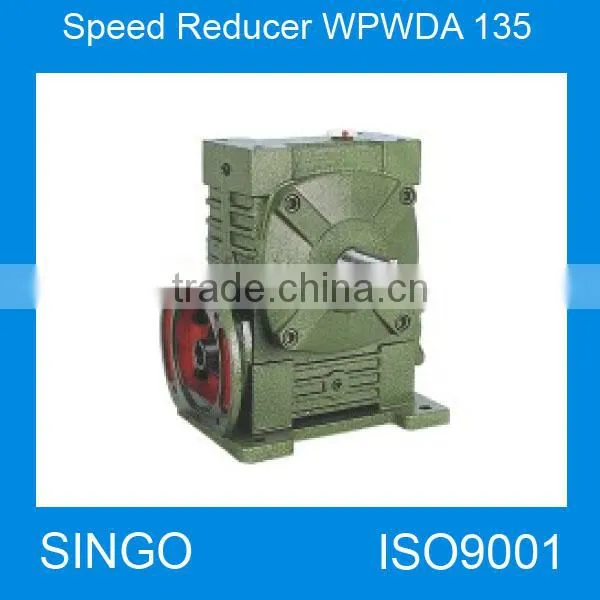

WPWDA 135 electric motor with reduction gear
1) Precision cast iron
2) Face of gear has been quenched and its profile has high accuracy
3) Compact structure and small volume saves mounting space
4) High overload capacity
5) Forward and backward running with frequent starting

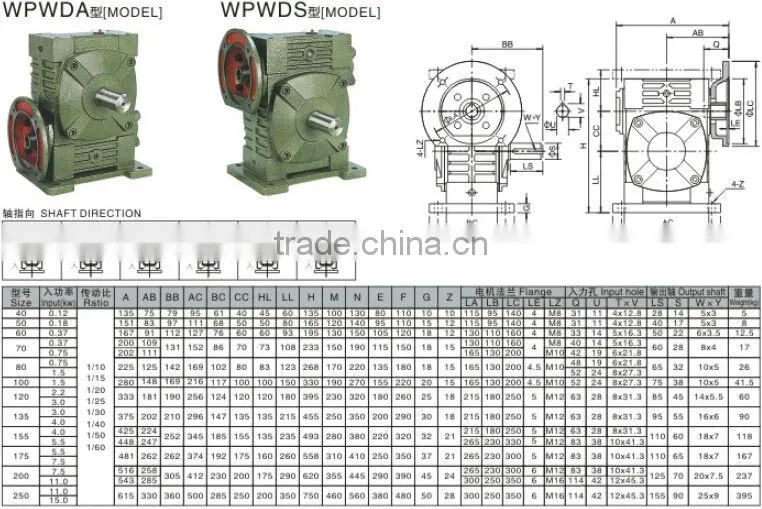

2. product structural drawing of worm gear speed reducer
gear motor|dc gear motor|electric motor with reduction gear|12v dc motor with gear reduction|dc worm gear motor|12v dc gear motor|electric bicycle gear motor|ac gear motor|low rpm ac gear motor|gear motor for sliding gate
| Item name: |
WPWDA 135
|
| size number: |
40,50,60,70,80,100,120,135,147,155,175,200,250
|
| ratio: |
1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60
|
| color: |
green,blue,silver,black and other customize color
|
| material: |
housing is made of HT200 worm wheel is made of aluminium bronze
|
| packing: | Inner pack: use plastic bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
| bearing: |
NSK & Homemade bearing
|
| seal: |
SKF NAK seal from TAIWAN
|
| input power: |
0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw
|
| shaft direction: | A,B,C,D,E,F |
| input form: |
IEC flange for mounting motor,solid
|
| output form: | solid shaft,hollow shaft |
| weight: | 5-395KGS |
| application: |
In industrial machine:food stuff,ceramics,chemical, packing,printing,dyeing,woodworking,glass and plastics
|
| warranty: | 1 year |
