Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > Worm Gear Speed Reducer WPWDX 250 Gear Box Motor

Worm Gear Speed Reducer WPWDX 250 Gear Box Motor

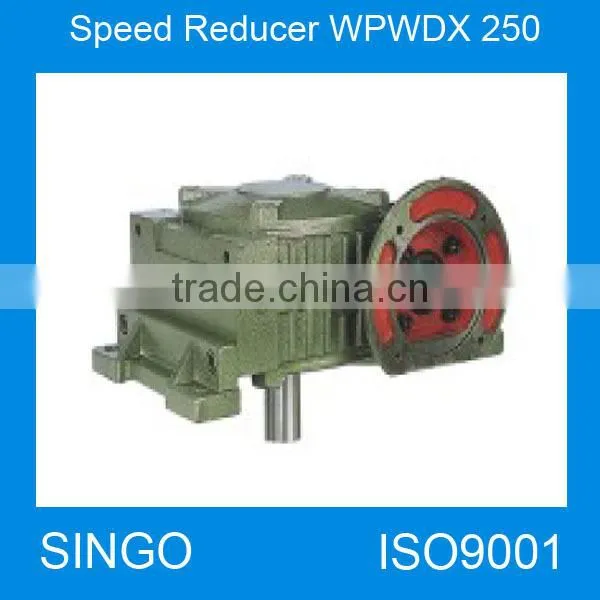

Worm Gear Speed Reducer WPWDX 250 Gear Box Motor photo-1
US$ 30 - 1,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Singo for gear box motor
Place of Origin:
Zhejiang, China
Model Number:
WPWDX 250 gear box motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai for gear box motor
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Singo for gear box motor
Place of Origin Zhejiang, China
Model Number WPWDX 250 gear box motor
Rated Power 0.12-15kw
Output Speed Standard
Input Speed 1500r/m
Output Torque 6-3025N.m
Gearing Arrangement Worm

Worm Gear Speed Reducer WPWDX 250 gear box motor

1) Precision cast iron

2) Face of gear has been quenched and its profile has high accuracy

3) Compact structure and small volume saves mounting space

4) High overload capacity

5) Forward and backward running with frequent starting

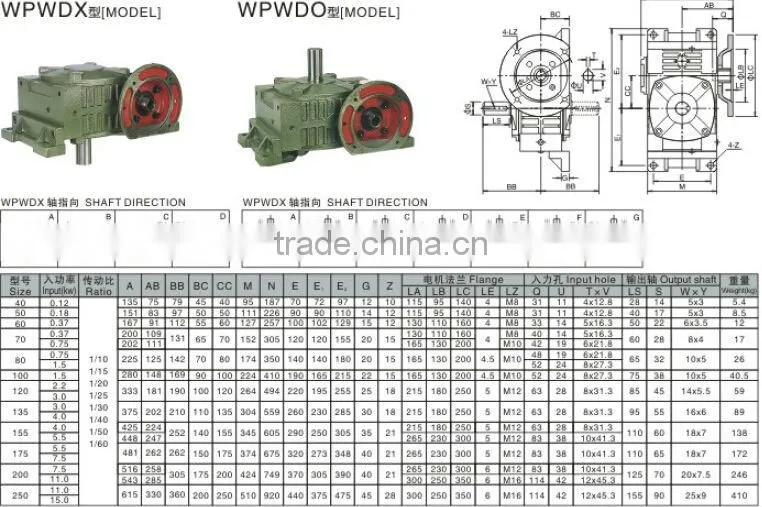

2.  product structural drawing of worm gear speed reducer





Item name:

WPWDX250



size number:

40,50,60,70,80,100,120,135,147,155,175,200,250



ratio:

1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60



color:

green,blue,silver,black and other customize color



material:

housing is made of HT200

worm wheel is made of aluminium bronze



packing:   Inner pack: use plastic bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request
bearing:

  NSK & Homemade bearing



seal:

 SKF

NAK seal from TAIWAN



input power:

 0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw



 shaft direction:  A,B,C,D
 input form:

  IEC flange for mounting motor,solid



 output form:  solid shaft,hollow shaft
 weight:  5.4-410 KGS
application:

In industrial machine:food stuff,ceramics,chemical,

packing,printing,dyeing,woodworking,glass and plastics



warranty: 1 year







 Worm Gear Speed Reducer WPWDX 250 gear box motor
