Arrow dripper Arrow Dripper Accessories Drip Irrigation Accessories Dripper

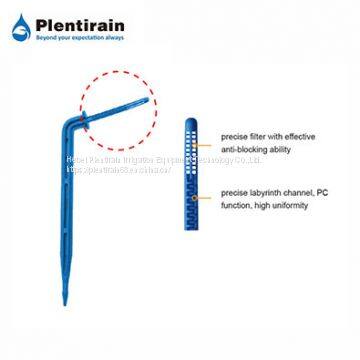

1. Arrow dripper has straight and bend types. The front arrow has length 10cm and 16cm available.The shaft , about 5cm long, has elaborate turbulent passageway and screen inlet.

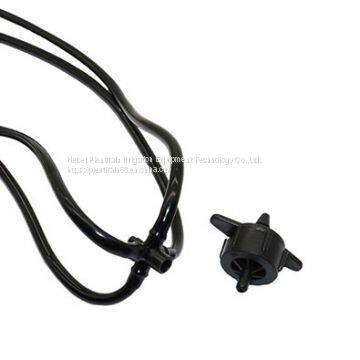

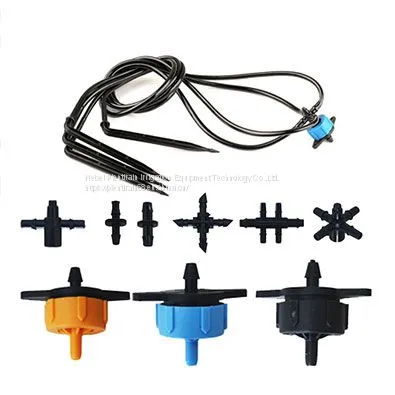

2. One arrow dripper is jointed to LDPE pipe Dn12-32mm with Dn5/3mm PVC soft pipe and adapter, and also can be jointed with multi-outlet connector to get 2 branches, 4 branches and 8 branches etc.
3. It's ideal for irrigation of flower, vegetable, and nurserygrown in pots due to its precision production and uniform emission.
Arrow Dripper Accessories Specifications:
S/N |
ITEM NO. |
NAME AND SPECIFICATION |
Bag QTY (Pc) |
Quantity (Pcs/Ctn) |
CARTON SIZE (CM) |
G. weight per carton(kg) |
1 |
2101 |
Straight Arrow Dripper, Blue color, length: 125mm, flow rate 1.8L/h, working pressure: 1.0bar |
100 |
5000 |
42*28*21 |
13 |
2 |
2102 |
Bend Arrow Dripper, Blue color, 100mmx50mm, flow rate 2.2L/H, Working pressure: 1.0bar |
100 |
4500 |
42*28*21 |
10 |
3 |
2103 |
Long Bend Arrow Dripper, Black color, 16cmx50mm, Flow rate: 2.2L/H, Working pressure: 1.0bar |
100 |
2500 |
54*35*28 |
9 |
4 |
2111 |
One Branch Arrow Dripper ( 1pc 2101+ 1pc 50 cm PVC soft Pipe + 1pc 5231A) |
50 |
1200 |
54*35*28 |
|
5 |
2112 |
One Branch Arrow Dripper ( 1pc 2102+ 1pc 50 cm PVC soft Pipe + 1pc 5231A) |
50 |
1200 |
54*35*28 |
13 |
6 |
2121 |
Two Branches Arrow Dripper ( 2pc 2101+ 2pc 50 cm PVC soft Pipe +1pc 5133A) |
50 |
700 |
54*35*28 |
15 |
7 |
2122 |
Two Branches Arrow Dripper ( 2pc 2102+ 2pc 50 cm PVC soft Pipe +1pc 5133A) |
50 |
600 |
54*35*28 |
13 |
8 |
2141 |
Four Branches Arrow Dripper ( 4 pc 2101+ 4pc 50 cm PVC soft Pipe + 1pc 5135A) |
50 |
350 |
54*35*28 |
14 |
9 |
2142 |
Four Branches Arrow Dripper ( 4 pc 2102+ 4pc 50 cm PVC soft Pipe + 1pc 5135A) |
50 |
250 |
54*35*28 |
13 |
10 |
2152 |
Long Four Branches bend Arrow Dripper ( 4 pc 2103+ 4pc 50 cm PVC soft Pipe + 1pc 5210) |
25 |
125 |
54*35*28 |
7.1 |
Technical data:
Item No. |
Working Pressure (Bar) VS Flow Rate (L/H) |
|
|||||||||
0.2bar |
0.4 bar |
0.6bar |
0.8bar |
1.0bar |
1.2 bar |
1.4bar |
1.6bar |
1.8bar |
2.0bar |
||
2101 |
0.6 |
1.1 |
1.4 |
1.6 |
1.8 |
2 |
2.3 |
2.4 |
2.5 |
2.6 |
Q=1.8H0.619 |
2102 |
0.9 |
1.5 |
1.7 |
2 |
2.2 |
2.4 |
2.7 |
2.9 |
3.2 |
3.4 |
Q=2.2H0.548 |
2103 |
0.9 |
1.4 |
1.7 |
2 |
2.2 |
2.4 |
2.6 |
2.7 |
2.9 |
3.1 |
Q=2.2H0.516 |
If you are finding Flat drip irrigation tape, Drip irrigation connector in China, we will be your best choose! We are a Arrow Dripper, Drip Irrigation and Main Line Accessories supplier in China. The company is devoted to supplying high-quality products and satisfactory service to the clients, our strength lies on high-quality product and on-time delivery!
If you want to know more, please click here.
/
