Tray Heating Freeze Dryer SJIA-5F

Tray Heating Freeze Dryer SJIA-5F thumbnail-1
Tray Heating Freeze Dryer SJIA-5F thumbnail-2
Tray Heating Freeze Dryer SJIA-5F thumbnail-3
Tray Heating Freeze Dryer SJIA-5F photo-1
Tray Heating Freeze Dryer SJIA-5F photo-2
Tray Heating Freeze Dryer SJIA-5F photo-3
US$ 4980 - 5500 MOQ: 1 Unit

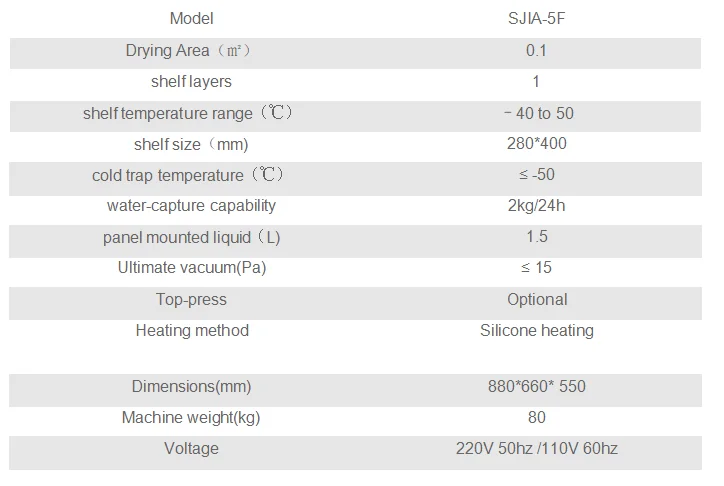

Key Specifications
Get Latest Price
Brand Name:
SJIALAB
Place of Origin:
China
Model Number:
SJIA-5F
Contact Supplier Request Quote Chat Now
Ningbo Sjia Lab Equipment Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SJIALAB
Place of Origin China
Model Number SJIA-5F
Certification CE；QA；MSDS
Type Vacuum Drying Equipment
After-sales Service Provided No overseas service provided
Warranty 1 Year
Weight 80kg
Dimension(L*W*H) 88*66*55cm
Condition New
Voltage 220V/110V
Power(W) 1100

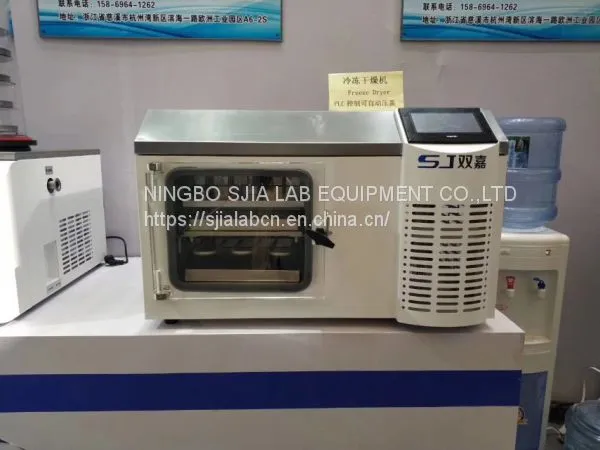

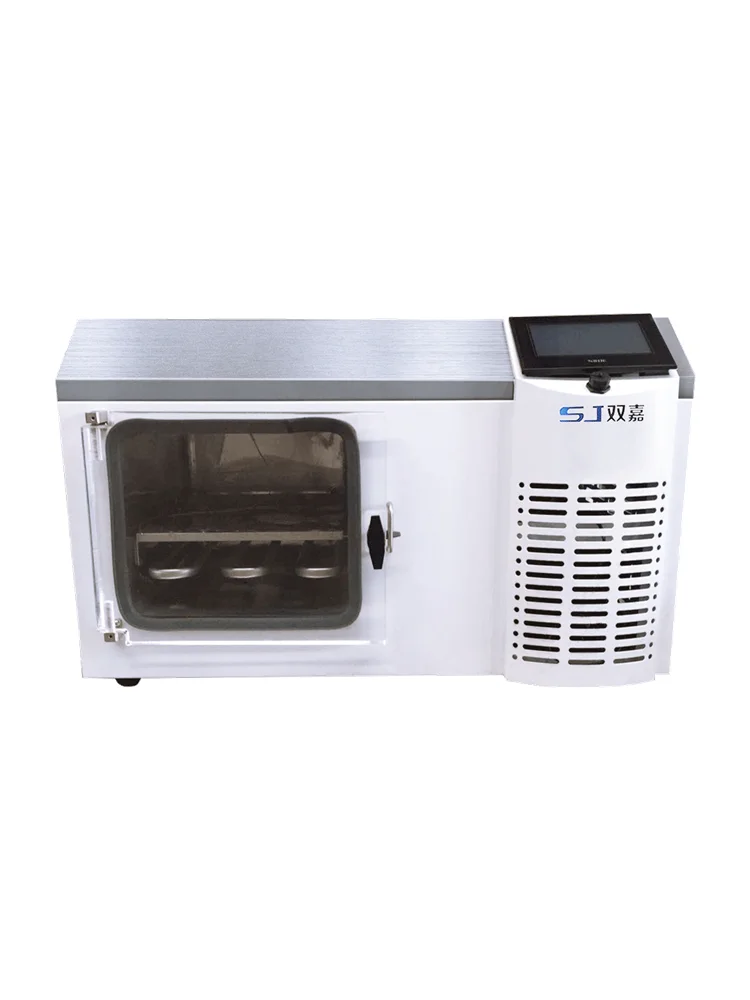

SJIA-5F Silicone Oil Heating Small Pharmaceutical Freeze Dryer
SJIA-5F Freeze Dryer is widely used in pharmaceutical industry and the Exploration of lyophilization technology of intermediate.
With great appearance Desktop design easy to operate，The machine is with shelf heating function, using PID technology which is accurate temperature control, human-computer interface using LCD screen and the data can be stored in USB flash disk. Smart control system,Every freeze dried process will be stored,and the resolution could be successfully applied next time.

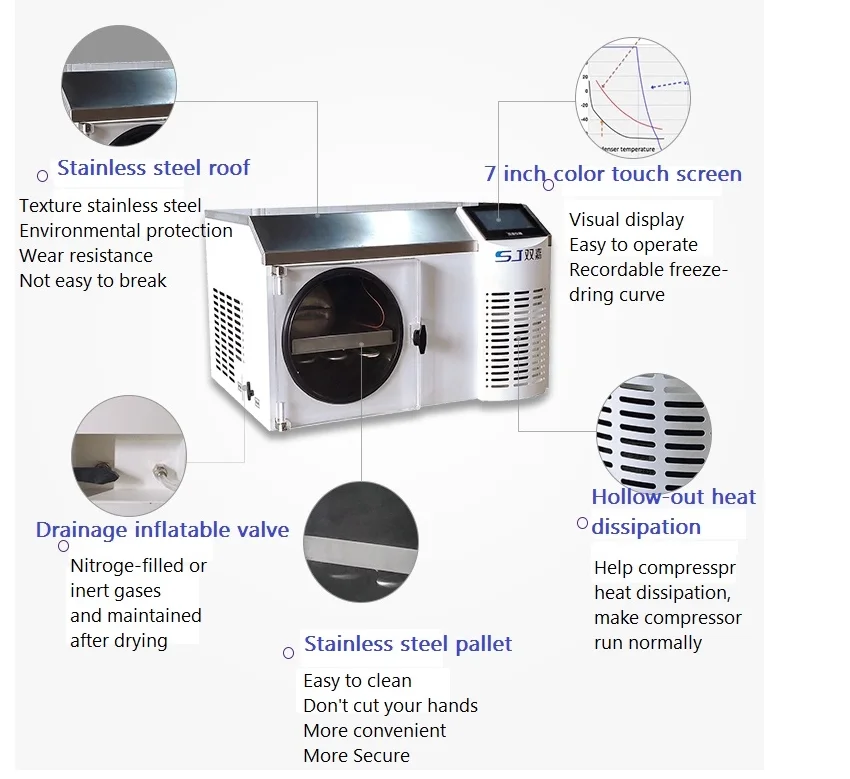

Main Feature
Silicone Oil heating model keep the shelf temperature more uniform
LCD display,PID control,the drying vurve;
Square tray is not easily deformed,easy to operate,easy to clean;
Can be configured inflation valve,ddsposable dry insert gas;

The LCD: shelf temperature curve,the cold trap temperature curve,

Sample temperture curve,the curve of the degree of vacuum and the composite curve,
16 programs can be steored,

Freeze dryer program parameters can be modified during operation,And record the final drying curves,

Circuit system using PID control,Can connect the computer real-time display of the freeze-dried curve.
