Home > Products > Laboratory Freeze Dryer > 6kg Capacity Freeze Dryer for Research Use SJIA-18N

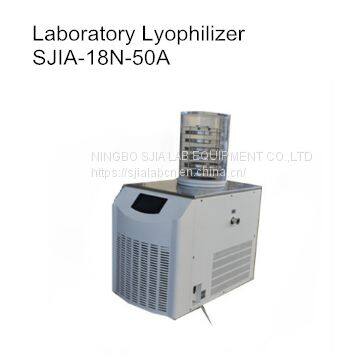

6kg Capacity Freeze Dryer for Research Use SJIA-18N
- Ningbo/Shanghai
- T/T Other
- 3 days
You May Like
Product Details
| Brand Name | SJIALAB | Place of Origin | China | |
| Model Number | SJIA-18N | Certification | CE;QA;MSDS | |
| Type | Vacuum Drying Equipment | After-sales Service Provided | No overseas service provided | |
| Warranty | 1 Year | Weight | 130kg | |
| Dimension(L*W*H) | 80.7*51.5*64cm | Condition | New | |
| Voltage | 220V/110V | Power(W) | 950 |
Product Description
SJIA-18N freeze dryer/ food freeze dryers sale is a cost effective and high performance vertical type freeze dryers.
Advantages of SJIA- N Freeze Dryer
1. Refrigeration uses Linde-hampson, the world's leading technology, with a refrigeratory (secondary cooling by refrigeration), high refrigeration efficiency;
2. The use of environmentally friendly refrigerants (absolutely does not contain the refrigerants banned by the state, some manufacturers still use the mixed refrigerant scheme with the ratio of R12 and R22 banned by the state);
3. Refrigeration temperature:
3.1 Temperature of cold trap up to standard (no load):<60 (DegC) and room temperature<28 (DegC)
3.2 Limit cold trap temperature (no load):<65 C, room temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy to operate, without defining the inexplicable button selection.

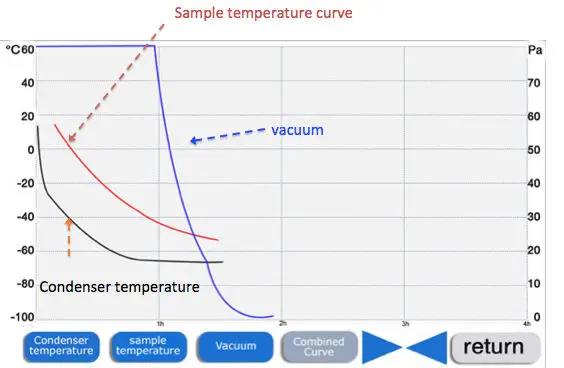

5. Support freeze-drying data curve recording function.
6. The requirement of cold trap temperature can be set when the vacuum pump starts, so as to avoid starting the vacuum pump when the cold trap temperature does not reach the effective low-temperature water catching performance, resulting in water entering the vacuum pump.
7. With an additional set of sensors, it can be used to measure sample temperature and record data.
8. Temperature and vacuum have correction function.
9. Switching unit with vacuum pressure display, supporting Mbar (millibar), Pa (Pascal), Torr (Toll).
10. Free upgrade of electric defrosting function

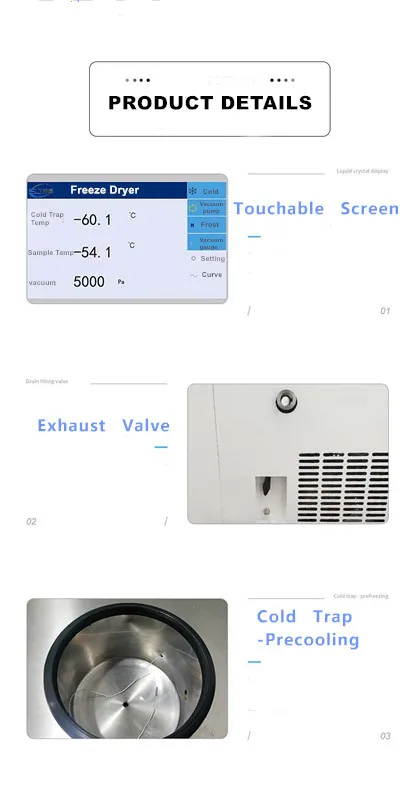

7’’ LCD touch control ,LCD display
parameters include vacuum,
condenser temperature
run time
ambient temperature.
For water based samples, the -55C condenser is the perfect choice with effective cost.
For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.
For labs that need quick turn-around, Heating element to defrost available.

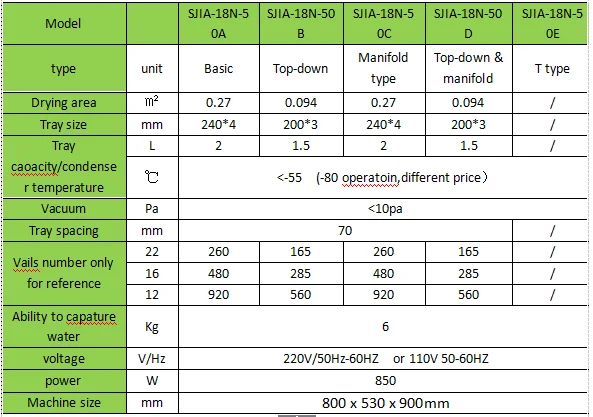

Main Technical Parameters:
The SJIA-18N lab scale freeze dryer can build with 5 common application different accessories.The versatile freeze dryer can meet customer’s various application.
accessories opt:

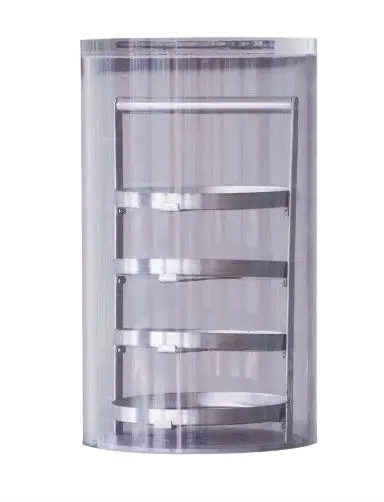

1.basic type:Transparent Acrylic Drum chamber with rack and 4 or 6 x Φ230mm trays.
The trays liquid load 2.7L ;
Drying area:0.27 square meters

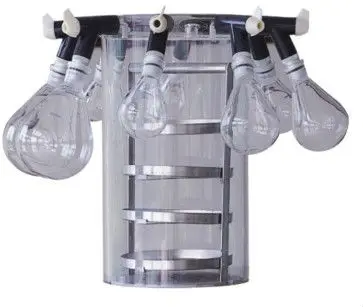

2.Acrylic Drum with Multi-manifolds:
8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory.
The trays liquid load 2.7L;
Drying area: 0.27 square meters
3.Top-stoper down type:
Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x 200mm shelves inside acrylic vacuum chamber.(5x200mm shelves is optional )
The trays liquid load 2L;Drying area: 0.2m2

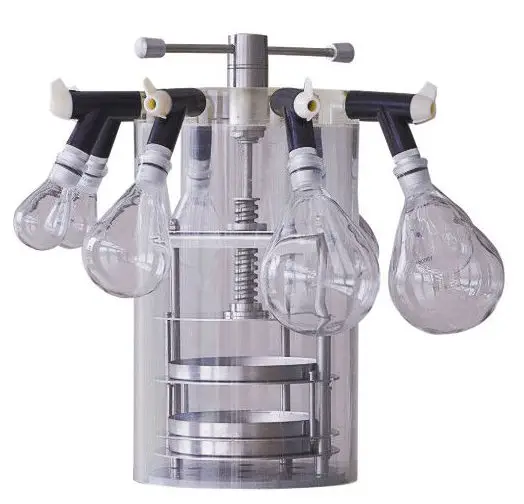

4. ( 8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf:)
The unit has movable ss 3x200 mm shelves inside acrylic vacuum chamber.(5x200mm shelves is optional )
The trays liquid load 2L;Drying area: 0.2m2

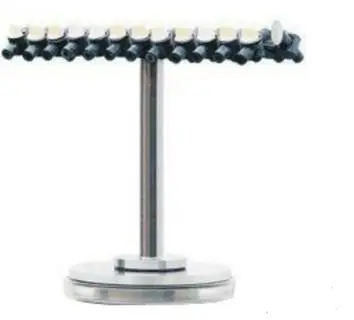

5.(24 or more ports) 24-Port Column Manifold T type
is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory
