Home > Products > EV Charger ,Cable > Charging Cable Mode 3 Type 1
Charging Cable Mode 3 Type 1
- Shanghai
- T/T PayPal Other
- 15 days
You May Like
Product Details
| Place of Origin | China |
Product Description

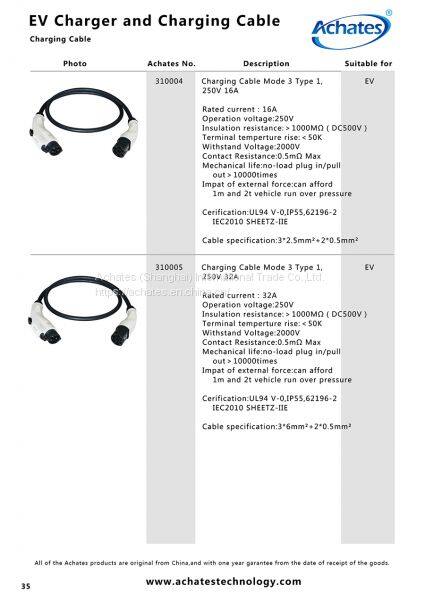

Model No.: | 310004 | Description: | Charging Cable Mode 3 Type 1,250V 16A |
Rated current : 16A Operation voltage:250V Insulation resistance:＞1000MΩ（DC500V） Terminal temperature rise:＜50K Withstand Voltage:2000V Contact Resistance:0.5mΩ Max Mechanical life: no-load plug in/pull out＞10000times Impact of external force: can afford 1m and 2t vehicle run over pressure Cerification:UL94 V-0,IP55,62196-2 IEC2010 SHEETZ-IIE Cable specification:3*2.5mm²+2*0.5mm² | |||
Model No.: | 310005 | Description: | Charging Cable Mode 3 Type 1,250V 32A |
Rated current : 32A Operation voltage:250V Insulation resistance:＞1000MΩ（DC500V） Terminal temperature rise:＜50K Withstand Voltage:2000V Contact Resistance:0.5mΩ Max Mechanical life: no-load plug in/pull out＞10000times Impact of external force :can afford 1m and 2t vehicle run over pressure Cable specification:3*6mm²+2*0.5mm² | |||
Packaging Details: | Cardboard packaging inside, carton packaging outside ,anti-static | ||
Shipping: | By Express: DHL,UPS,TNT ; By Air Cargo; By Sea | ||
Payment: | PayPal, Western Union, T/T | ||
