Help CenterHV DC Contactors 20A
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
Place of Origin
China
Model No.: |
110001 |
Description: |

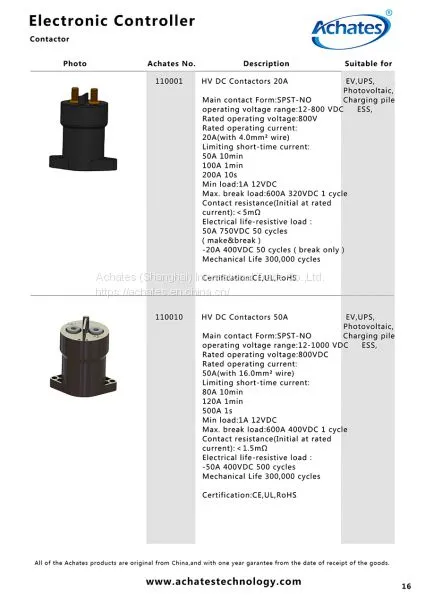

HV DC Contactors 20A |
|
Main contact Form:SPST-NO operating voltage range:12-800 VDC Rated operating voltage:800V Rated operating current:20A(with 4.0mm² wire) Limiting short-time current:50A 10min,100A 1min,200A 10s Min load:1A 12VDC Max. break load:600A 320VDC 1 cycle Contact resistance(Initial at rated current):＜5mΩ Electrical life-resistive load ：50A 750VDC 50 cycles（make & break）；-20A 400VDC 50 cycles（break only） Mechanical Life 300,000 cycles | |||
Packaging Details: |
Cardboard packaging inside, carton packaging outside ,anti-static |
||
Shipping: |
By Express: DHL,UPS,TNT ; By Air Cargo; By Sea |
||
Payment: |
PayPal, Western Union, T/T |
||
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2014
Factory Size
1,000-3,000 square meters
Annual Export Value
US$10 Million - US$50 Million
