Product Description

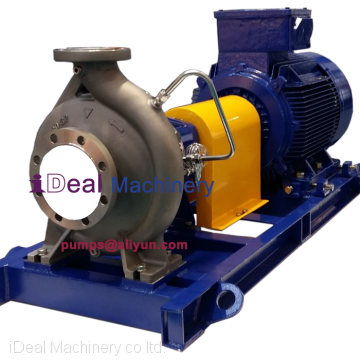

IES Ideal End Suction Pump
IES Series is single stage, single suction back pull out type
Dimensions are according to EN733 (DIN24255) standard
Flange can be drilled according to ISO, DIN, BS or ANSI standard
Shaft with mechanical seal as standard and gland packing optional
Materials available (Cast iron, Ductile iron and SS316 etc.)
Performance Range
Flow Rate (Q) Up to 1100 m3/h
Head (H) Up to 152m
Speed (RPM) 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
Temperature -10 Celsius to 105 Celsius, (Optional 130 Celsius)
Applications
● HVAC & Cooling Tower
● Fire Fighting
● Chemical Liquid Transfer
● Irrigation & Agriculture
● Booster & Pressurization Set
Definition of Model
IES 65/20
IES - Single Stage, End Suction Pump
65 - Discharge Diameter (mm)
20 - Impeller Nominal Diameter (mm)
