Aol Corrugated Cardboard Die Cutter
- 200 Set / Sets per Month
- qingdao,shandong
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
Product Details
Brand Name: | AOL | Place of Origin: | China | Model Number: | 1625 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Packaging industry uses a really wide range of materials, from cardboard and plastic to foam, wood and cork.Every AOL cutting and creasing tool has been industry-proven for all commonly used packaging materials, convert your ideas into reality, and present your customers with proposed designs in seconds!
The powerful, vacuum capability, and the strength of their structure and tools allow an accurate processing of materials up to 110 mm thick, while the systems modularity permits 45° cutting, kiss-cutting and creasing. AOL digital cutting table is your best choice for packaging.
Official website: /
Technical parameters / model | AOL-1625-ZS6 | AOL-1825-ZS8 | AOL-2125-ZS10 | Accept special model customization | ||
Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||

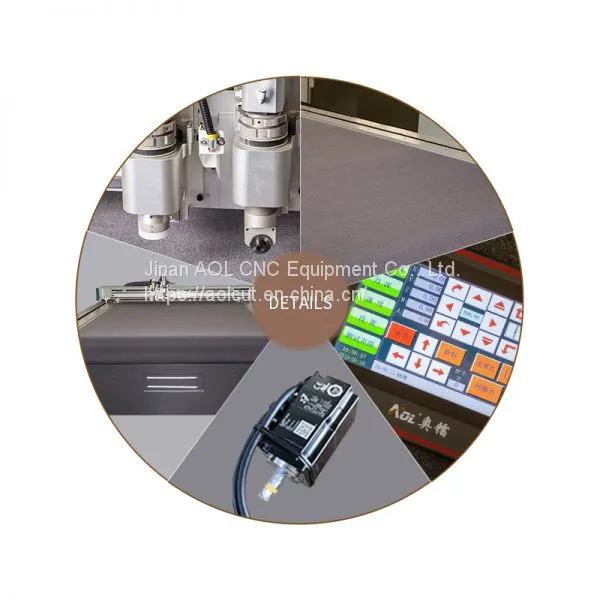

Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
safety devices | Safety devices use infrared sensing, safe and reliable | |||||
Cutting speed | 200-2000mm/s | |||||
Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
Applicable materials | Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material | |||||
Material fixing method | Vacuum partition adsorption | |||||
Transmission port | Network port | |||||

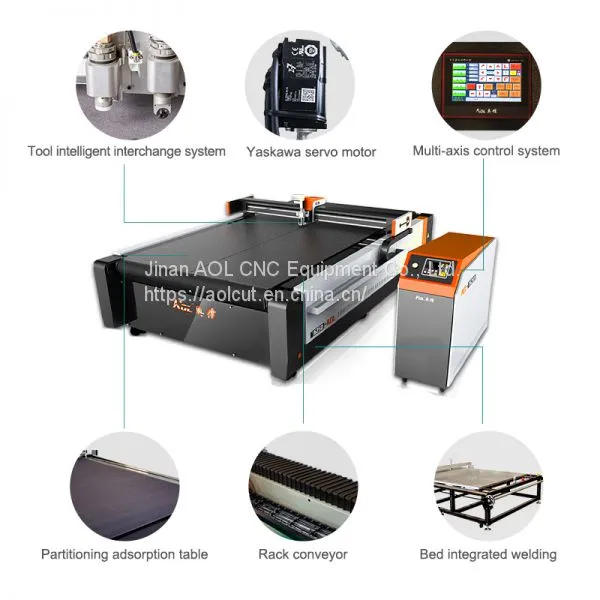

Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||||
rated power | 11kw | |||||
Rated voltage | 380V±10%/220V±10% Optional | |||||
Control System | Chinese and English LCD touch screen | |||||
Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
Software | Automatic nesting software, template entry software(Optional) | |||||
Support file format | AI,PLT,DXF,CDRetc | |||||
Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm |
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Question: How to operate this machine ?
Answer: We can provide operating video, user manual or telephone calls to help you. All these is written or speaking in English at present. On site service is also available.
There is no complicate operation nor special requirement for operator, operating is easy.
Question: What's the warranty policy?
Answer: Standard warranty is 12 month upon delivery.
Question: What is the shipping cost from China to my country?
Answer: It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder.
Question: How to judge if this cutting machine is suitable for me or not?
Answer: First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.
Question: Where is your factory located? How can I get there?
Answer: Our factory is based in jinan, shandong province,China. You can fly to beijing, jinan or qingdao. We can pick you up at the air station or train station.
Question: Is there any after sales service?
Answer: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
