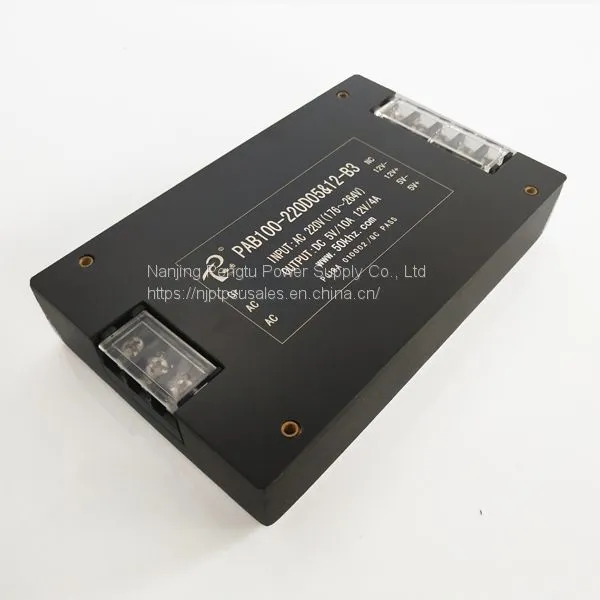

PAB-B3 series 50-150W single 5/12/24V dual 5&12V/5&24V/12&24V ac to dc converter.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176～264 VAC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Cross regulation …………±3%
●Output Current Limited ……120%(Type)
●Output current ………3-20A for optional
●Output voltage ………5-48V
●Power …………50-150W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
●Main-Vice: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military: -55-+105℃
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
※Model selection
Input V. (Vac) |
Input V. range (vac) |
Output V.(V) |
Output Curr. (A) |
Ripple &noise pk-pk (mv) |
Efficiency (Typ) |
Models |
|
SING |
220 |
176-264 |
05 |
20 |
80 |
83% |
PAB100-220S05-B3 |
220 |
176-264 |
12 |
10.4 |
120 |
84% |
PAB125-220S12-B3 |
|
220 |
176-264 |
24 |
6.25 |
200 |
85% |
PAB150-220S24-B3 |
|
220 |
176-264 |
28 |
5.36 |
280 |
85% |
PAB150-220S28-B3 |
|
220 |
176-264 |
48 |
3.1 |
300 |
85% |
PAB150-220S48-B3 |
|
DUAL |
220 |
176-264 |
05&12 |
10&4 |
100&120 |
83% |
PAB100-220D05&12-B3 |
220 |
176-264 |
05&24 |
4&4 |
80&200 |
83% |
PAB120-220D05&24-B3 |
|
220 |
176-264 |
12&24 |
6&3.25 |
120&200 |
84% |
PAB150-220D12&24-B3 |
|
220 |
176-264 |
05&28 |
2&5 |
50&280 |
83% |
PAB120-220D05&28-B3 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.

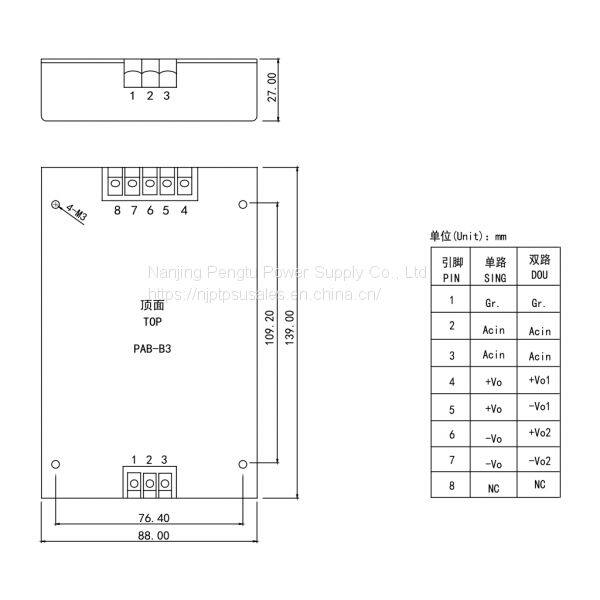

※Mechanical Drawing & Pin definition
