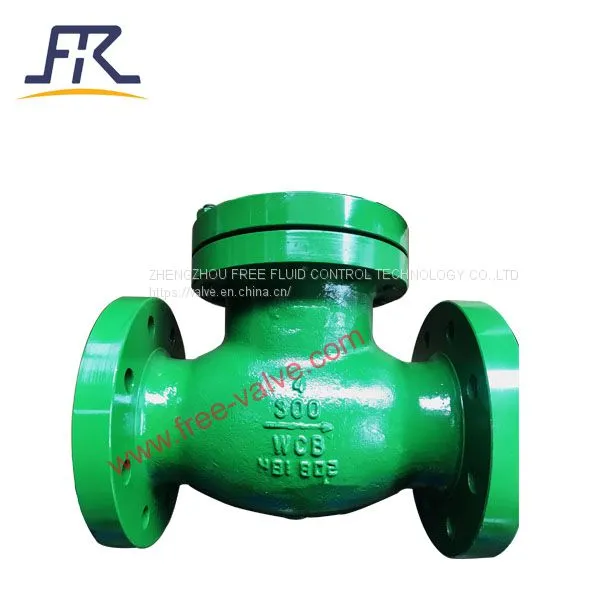

Swing Check Valve Class150-Class600 Cast Steel Flange End
- Shanghai
- T/T L/C
- 30 days
You May Like
-
Swing Check Valve
-
Pneumatic Ceramic Lined Wafer Type Butterfly Valve
-
Pneumatic Stainless Steel Ceramic Sealing Structure Butterfly Valve for Anti-Corrosion Project
-
Customized Zirconia and Alumina Ceramic Butterfly Valve
-
Manual Operated Concentric Wafer Type Ceramic Sealing Butterfly Valve
-
Bare Stem Stainless Steel Wafer Type Ceramic Butterfly Valve
Product Details
| Brand Name | FREE-VALVE | Place of Origin | China | |
| Model Number | FRH44H | Material | Casting | |
| Application | General | Structure | Check | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Other, medium | Port Size | DN50~DN900 | |
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
FREE-VALVE’s swing check valves are swing type and have a flat disc that swings about a hinge pin or shaft, installed in the piping system, their main function is to prevent medium from flowing backwards, the valves are normally designed for horizontal flow condition, but can also be installed in vertical pipeline, but in vertical pipeline, the flow should be in upwards direction and under the disc.
Features
1. The eccentric mounted hinge pin in combination with the disc seat guarantees a positive shut off of the returning medium.
2. The sealing surface of disc is ground and lapped for better finish and sealing
3. Bolt bonnet provides easy access to the disc and hinge pin without removing the valve from the pipeline in case of maintenance.
4. Disc nut secures the disc to the hinge and allows the disc to rotate about pin axis and assist in tight shut off.
Technical Specification:
1. Size Range: NPS2~NPS36,DN50~DN900
2. Applicable Temperature:-20~550℃
3. Connection Type: Flange,butt welding
4. Butt welding ends:GB/T12224,ASME B16.25
5. Body material：WCB,stainless steel
6. Test standard：GB/T13927,API598
7. Flange To Flange:ANSI B 16.10,GB/T12221
Application:
FREE-VALVE’s swing check valves are mainly used in water supply systems, petroleum, chemical and other industrial sector.
Model:FRH44H
Price:100-5000USD/set
Origin:China
Wechat:FreeValve
Email:sales@free-valve.com
