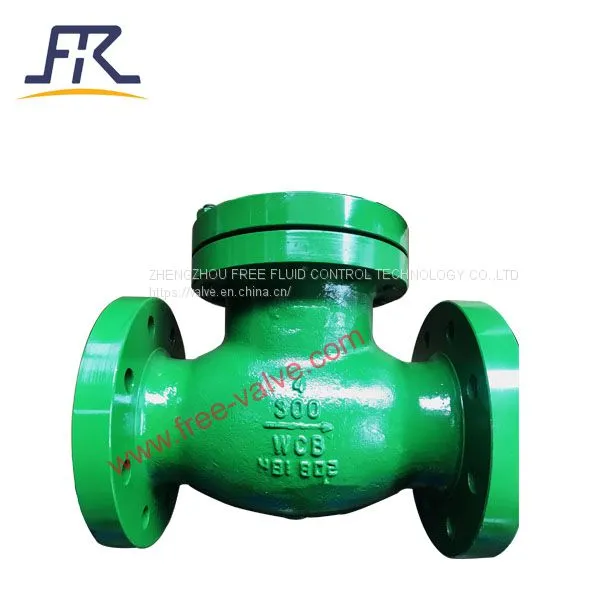

Help CenterIndustrial Stainless Steel CF8 CF8m SS304 SS316 Carbon Steel WCB Non Return Flange Swing Check Valve H44H
Related Products
-
Swing Check Valve Class150-Class600 Cast Steel Flange EndUS$ 100 - 5000MOQ: 1 Piece -
Swing Check ValveUS$ 100 - 5000MOQ: 1 Piece
-
API 598 Ductile Casting Iron Foot ValveUS$ 100 - 1000MOQ: 1 Piece
-
Stainless Steel Bottom Valve Lift Check Valve Flange Foot Valve for Chemical IndustryUS$ 100 - 1000MOQ: 1 Piece
-
DN25-DN300 Swing Insulation Check ValveUS$ 100 - 2000MOQ: 1 Piece
FREE-VALVE’s Industrial Stainless Steel CF8 CF8m SS304 SS316 Carbon Steel WCB Non Return Flange Swing Check Valve are swing type and have a flat disc that swings about a hinge pin or shaft, installed in the piping system, their main function is to prevent medium from flowing backwards, the valves are normally designed for horizontal flow condition, but can also be installed in vertical pipeline, but in vertical pipeline, the flow should be in upwards direction and under the disc.
Features
1. The eccentric mounted hinge pin in combination with the disc seat guarantees a positive shut off of the returning medium.
2. The sealing surface of disc is ground and lapped for better finish and sealing
3. Bolt bonnet provides easy access to the disc and hinge pin without removing the valve from the pipeline in case of maintenance.
4. Disc nut secures the disc to the hinge and allows the disc to rotate about pin axis and assist in tight shut off.
Technical Specification:
1. Size Range: NPS2~NPS36,DN50~DN900
2. Applicable Temperature:-20~550℃
3. Connection Type: Flange,butt welding
4. Butt welding ends:GB/T12224,ASME B16.25
5. Body material：WCB,stainless steel
6. Test standard：GB/T13927,API598
7. Flange To Flange:ANSI B 16.10,GB/T12221
Application:
FREE-VALVE’s Industrial Stainless Steel CF8 CF8m SS304 SS316 Carbon Steel WCB Non Return Flange Swing Check Valve are mainly used in water supply systems, petroleum, chemical and other industrial sector.
Model:FRH44H
Price:100-5000USD/set
Origin:China
Wechat:FreeValve
Email:sales@free-valve.com
