Home > Products > Pure Sine Wave Inverter > 1500W 3000W Pure Sinus voltage converter 12V 230V remote control

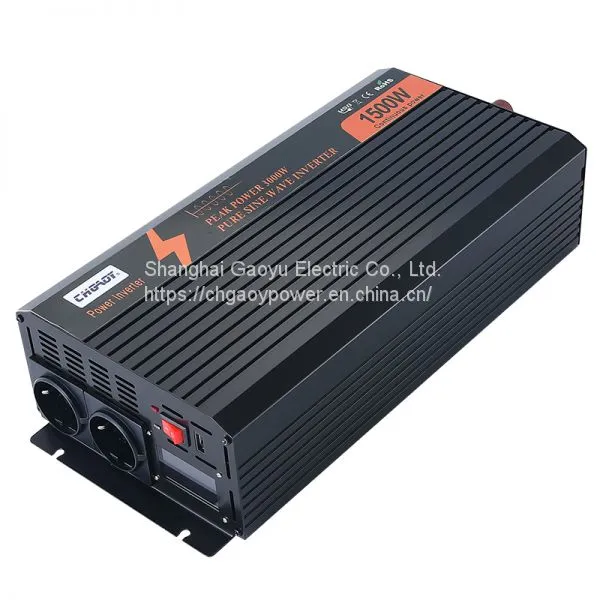

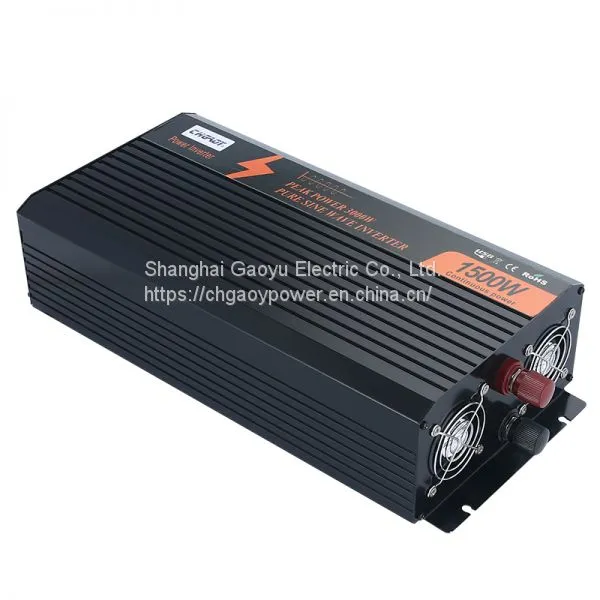

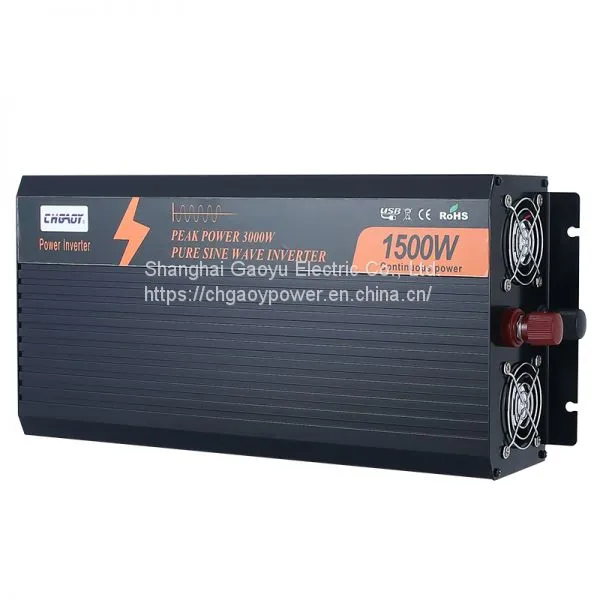

1500W 3000W Pure Sinus voltage converter 12V 230V remote control
CNY 580 - 581
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- shnaghai / ningbo
- T/T
- 10 days
You May Like
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Brand Name: | CHGAOY | Place of Origin: | China | Model Number: | P-1500W |
| Type: | DC/AC Inverters | Size: | 350*180*90 mm | Weight: | 4.5 Kg |
| Output Power: | Other, 1500W | Output Type: | Other, Pure sine wave | Output Current: | 8A |
| Output Frequency: | 50Hz | Output Voltage: | 230V | Input Voltage: | 12V or 24V |
Product Description
Output power: 1500W
Peak power: 3000W
Input voltage ( range ): DC 12V ( 9.5 - 15.5V ), DC 24V ( 19 - 31V ), DC 48V ( 40 - 61V )

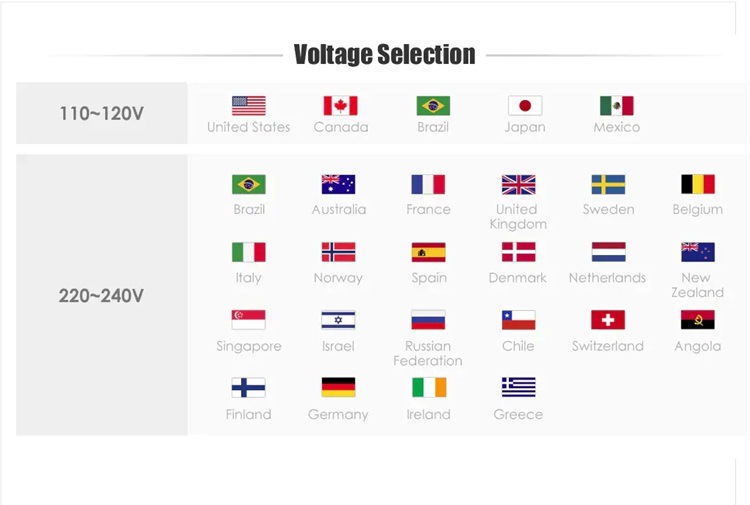

Output voltage ( single choice ): 100V AC / 110V AC / 120V AC / 220V AC / 230V AC / 240V AC
No-load current: Less than 0.6A / 0.3A / 0.2A
Output frequency 50Hz or 60Hz
Output waveform: Pure sine wave
Output waveform harmonic component THD less than 3 percent ( pure resistive load )

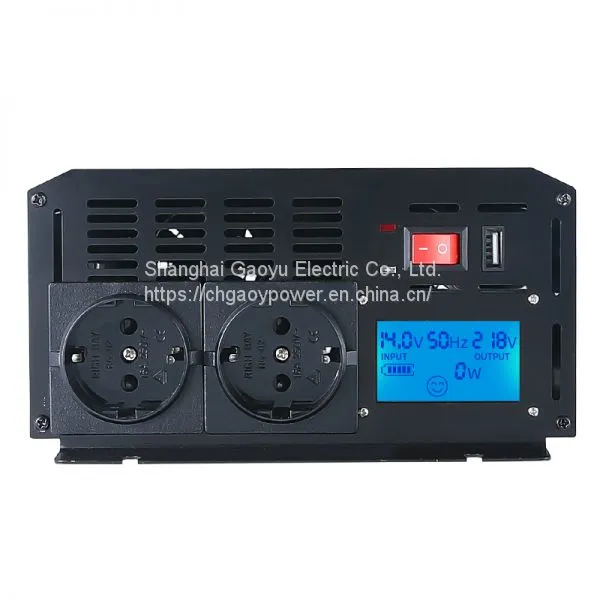

Display Type LCD / LED Optional
USB 5V, 2.1A
The highest output efficiency more than 85 percent.
Undervoltage protection first alarm ( breaking alarm sound is one ), LED red light flashes, voltage continues to decrease off.
Overvoltage protection alarm ( breaking alarm sound is two ) LED red light flashing, off.
Overload protection: Continuous alarm, LED red flashing, shutdown.
Over-temperature protection First alarm ( broken alarm sound is two ), the temperature continues to rise LED red light flashes and turns off.
Short-circuit protection, short-circuit protection without breaking the circuit.
Reverse protection fuse blown.
Undervoltage alarm range 21
Undervoltage protection range 19
Overvoltage protection range 31
Undervoltage recovery range 24
Overvoltage recovery range 28V
Working environment temperature -10 - 50 Deg.c
Cooling method, intelligent air cooling.
Peak power: 3000W
Input voltage ( range ): DC 12V ( 9.5 - 15.5V ), DC 24V ( 19 - 31V ), DC 48V ( 40 - 61V )
Output voltage ( single choice ): 100V AC / 110V AC / 120V AC / 220V AC / 230V AC / 240V AC
No-load current: Less than 0.6A / 0.3A / 0.2A
Output frequency 50Hz or 60Hz
Output waveform: Pure sine wave
Output waveform harmonic component THD less than 3 percent ( pure resistive load )
Display Type LCD / LED Optional
USB 5V, 2.1A
The highest output efficiency more than 85 percent.
Undervoltage protection first alarm ( breaking alarm sound is one ), LED red light flashes, voltage continues to decrease off.
Overvoltage protection alarm ( breaking alarm sound is two ) LED red light flashing, off.
Overload protection: Continuous alarm, LED red flashing, shutdown.
Over-temperature protection First alarm ( broken alarm sound is two ), the temperature continues to rise LED red light flashes and turns off.
Short-circuit protection, short-circuit protection without breaking the circuit.
Reverse protection fuse blown.
Undervoltage alarm range 21
Undervoltage protection range 19
Overvoltage protection range 31
Undervoltage recovery range 24
Overvoltage recovery range 28V
Working environment temperature -10 - 50 Deg.c
Cooling method, intelligent air cooling.
Specification
SpecificationsDimension and WeightPackage Contents
| Input ( Car Charger ): 12V Output ( Car Charger ):230vAC ±5% Working Temp.(℃): -10~50°C Material ( Cable&Adapter): ABS,Brass |
| Product weight: 3.8000 kg Package weight: 4.5000 kg Package size (L x W x H): 54.0 x 15.50 x 22.50 cm /21.26 x 6.1 x 8.86 inches |
| Package Contents: 1 x Car Inverter, 2 x Pure Copper Cable, 4 x Spare Fuse |
