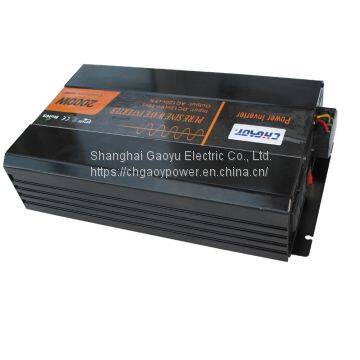

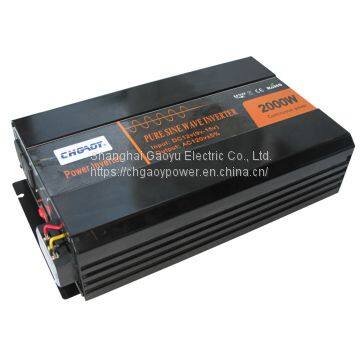

CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display

CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display thumbnail-1
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display thumbnail-2
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display thumbnail-3
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display thumbnail-4
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display thumbnail-5
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display photo-1
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display photo-2
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display photo-3
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display photo-4
CHGAOY Pure Sine Wave Solar Power Inverter 2000W 12V DC to 120V±5% AC 60HZ Converter Off Grid With LCD Display photo-5
US$ 127 - 127 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHGAOY
Place of Origin:
China
Model Number:
P-121-2000
Contact Supplier Request Quote Chat Now
Shanghai Gaoyu Electric Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shnaghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHGAOY
Place of Origin China
Model Number P-121-2000
Type DC/AC Inverters
Size 355*205*80mm
Weight 8 kg
Output Power Other, 2000W
Output Type Other, Pure Sine Wave
Output Current 17A
Output Frequency 60Hz
Output Voltage 120v AC
Input Voltage 12v DC



  • 🎁 2000W continuous 4000W peak true pure sine wave solar power inverter, as good as grid power, power backup for home power supply.

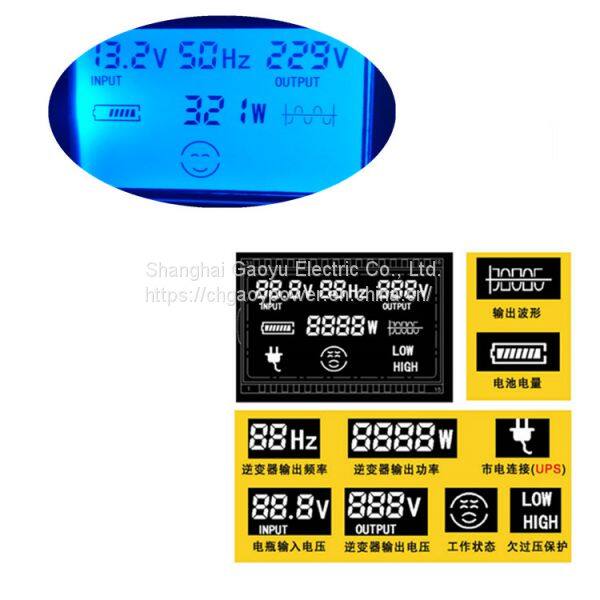

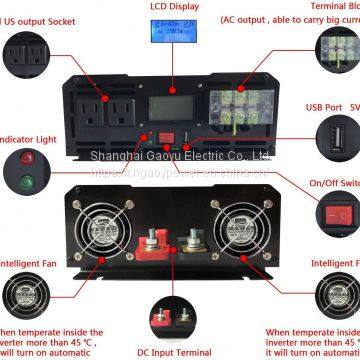

  • 🎁 Transfer DC 12V(9V-15V) to AC 120V±5%, 60Hz frequency, dual US outlets,one big power wirebox output ( can bear more than 2000w output). Intelligent temperature control cooling fan , when temperature inside the inverter more than 45 centi degree, will turn on automatic. Earth connection for both PCB board and output.LCD display.

  • 🎁 High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity.

  • 🎁 Thick PCB, allow the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output.

  • 🎁 Free standard battery cables ( 50cm length ) and spare fuse for replacement.


Product details:

DC input: 12V
DC input range: 9V-15V
No Load Current Draw: 1A
Efficiency:90%
AC output: 110V~120V
AC Regulation:3%
Frequency: 60Hz
Socket:15A USA type
Low Voltage Alarm:10V-11V
Low Voltage Shut Down: 9V-10V
Over Load: shut off, recover manually
Over Voltage Shut Down:16V
Over Thermal: Shut Off Output Automatically, Over voltage protection
Cooling Ways: Cooling Fan will run when the temperature is over 45 centi degree

Precautions:
1. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.
2. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
3. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. If you want to power up a refrigerator, we suggest you use 10 times higher power inverter.
4. Please turn off the load first then turn off the inverter. And as there is a soft start function, please turn on the inverter first then turn on your loads, or the output may not stable at the first seconds.
5. For a red light flashing, it is a kind reminder to note you the input voltage is a bit high, you can regardless of it. If the input is too high, the inverter will shut down automaticly.Please make sure your battery is fully charged before using.
6. The output voltage can be adjusted in a little range.

If you receive our inverter , any problem, please letter us.
