8CH 1.0MP/2.0MP CCTV Home Security Video Suveillance Wireless WiFi NVR Kits With 10 Inch LCD Screen
US$ 226 - 268
MOQ: 50 Sets
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-NKITR08HWL-10
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4CH Wireless WiFi IP Camera Security Recording System CCTV for Home Security Built-in 10 InchUS$ 163 - 163MOQ: 20 Pieces -
4chs 1.3/2.0MP Home Wireless Security WiFi NVR Alarm System With 10.1 Inch LCD ScreenUS$ 128 - 156.8MOQ: 10 Pieces
-
8chs 1.3/2.0MP Home Wireless Security Camera WiFi NVR Alarm System With 10.1 Inch LCD ScreenUS$ 208 - 226.4MOQ: 20 Pieces
-
CCTV H. 264+ 4chs Home Wireless Security WiFi NVR Alarm KitsUS$ 76.8 - 107.2MOQ: 10 Pieces
-
8chs 1.0MP/2.0MP Home Wireless Security Camera WiFi NVR Alarm SystemsUS$ 145.6 - 184MOQ: 10 Pieces
Brand Name
Wardmay/OEM
Place of Origin
China
Model Number
WDM-NKITR08HWL-10
Hot Sale 8chs WiFi NVR Kits CCTV Surveillance System IP Camera
Features

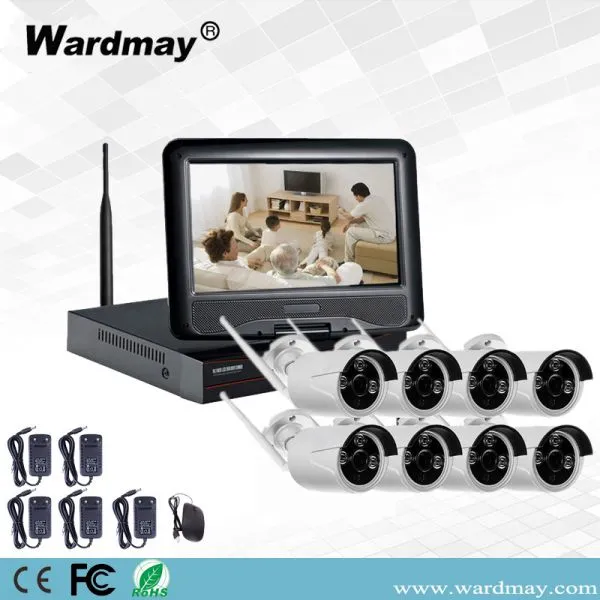

Complete kit including:

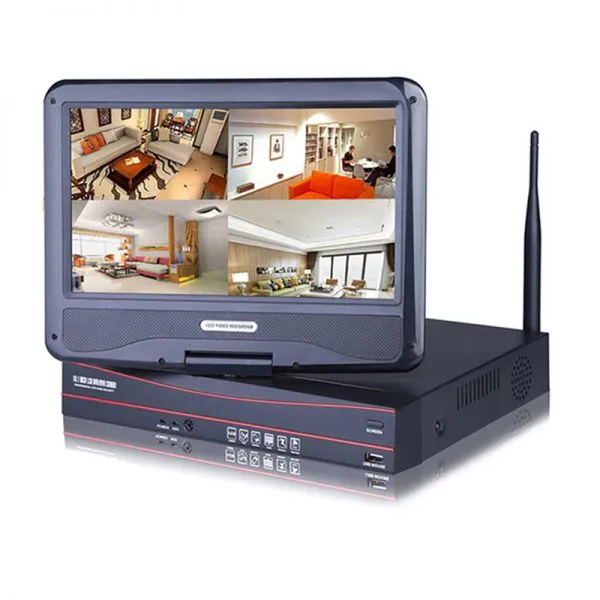

1*8chs Wifi NVR with 10 inch LCD screen;

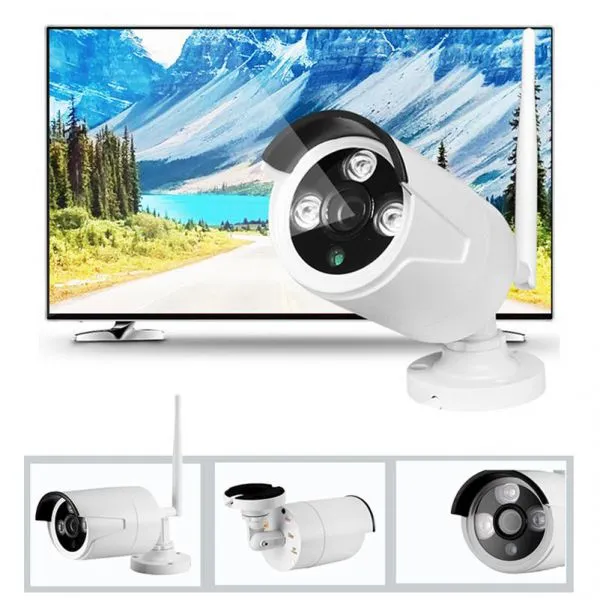

8*outdoor 30m WIFI 2.0Megapixel IR waterproof IP cameras with adaptor.
Plug and Play,no need network paring;
strong ability of singnal transmit up to crossing 1 to 4 walls,wifi distance:80-300 meters.
APP: IPPRO
support P2P, App is IP Pro..Available to send P2P ID for testing if you need.
Specification
| IP Cameras specifications | |||
| Operating System | Embedded linux | ||
| Image Sensor | AK39E+SC1045 1/4'' Progressive Scan Sensor | HI3516EV100+SC2235P 1/3" Progressive Scan Sensor | |
| Resolution | 720P | 1080P | |
| Frame Specification | H.264 1280*720@25fps | H.265 1920x1080@25fps | |
| S/N Ratio | >39.1dB | ||
| Minimum Illumination | Color:0.1 Lux; B/W:0.01 Lux | ||
| Lens | 3.6MM | ||
| Infrared distance | 20-30m | ||
| Waterproof | IP66 | ||
| White Balance | Auto | ||
| Day&Night | IR cut filter with auto switch | ||
| 3D-DNR | Auto | ||
| Privacy Masking | 4 Zone Selectable | ||
| Infrared lamp | 3pcs X ¢20 Lamp beads | ||
| Power Input | DC12V1A(4pcs) | ||
| Consumption | max 6W | ||
| Interface | RJ45/WIFI 802.11b/g/n | ||
| Operation temperature | -10ºC to +50ºC /30% to 80% RH | ||
| WIFI NVR Specifications | |||
| System | |||
| Operating System | Embedded linux OS | ||
| Main processor | Hi 3520D | Hi 3536D | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||
| Interface | |||
| Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | ||
| Preview | 1/4 | ||
| Video input (IP) | 4*720P | 4*1080P | |
| Access bandwidth | 24Mbps | ||
| Forwarding bandwidth | 25Mbps | ||
| Video compression | H.264 | H.265+ | |
| Display quality | Max 720P | Max 1080P | |
| Playback quality | 720P | 1080P | |
| Decode | 4*720P | 4*1080P | |
| VR | Unsupport | ||
| Motion detection | Support(depend on camera) | ||
| Audio | |||
| Audio compression | G.711A | ||
| Intercom | Unsupport | ||
| Record & playback | |||
| Recording mode | Manual>Alarm>Dynamic Detection>Timing | ||
| Local payback | 4*720P | 4*1080P | |
| Search mode | Search by Time/Calendar/Event/Channel | ||
| Record storage | HDD,Network | ||
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | ||
| External Interface | |||
| Video output | 1ch VGA,1ch HDMI HD output | ||
| Audio I/O | 0/0 | ||
| Alarm I/O | 0/0 | ||
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | ||
| USB interface | 2*USB2.0 ports | ||
| HDD | 1* SATA(Up to 8TB for each disk) | ||
| ESATA | No | ||
| Serial interface | No | ||
| Other | |||
| ONVIF | No | ||
| Power supply | 12V/3A | ||
| Power Consumption | |||
| Work environment | Temperature:0ºC-+55ºC , Humidity:10%-90%RH , Atm:86kpa-106kp | ||
| Package Informations | |||
| Wifi NVR | 1 set | ||
| Camera | 4 pieces | ||
| Network line | 1m*1 | ||
| Power adapter | DC12V3A(1 pcs); DC12V1A(4 pcs) | ||
| USB Mouse | 1 piece | ||
| User Manual | 1 piece | ||
| Screw bag | 4 pieces | ||
| Weight | 5.05KG | ||
| Package Size | 35x34x25cm | ||
