10.1 Inch LCD Screen CCTV Wifi NVR IP Camera systems
Features

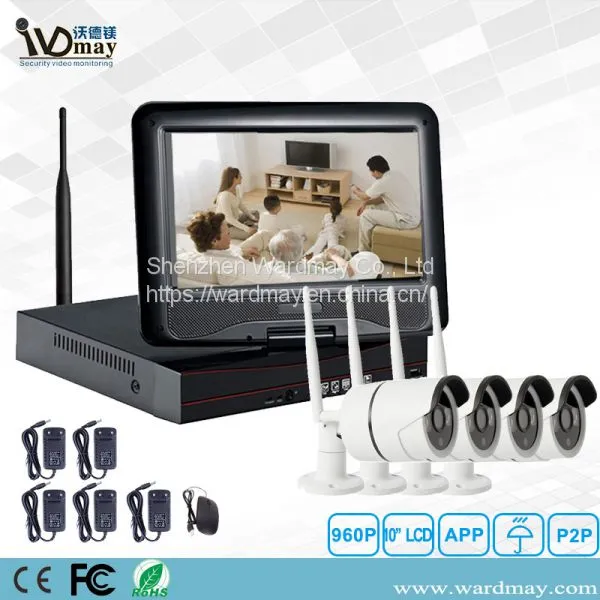

Complete kit including:

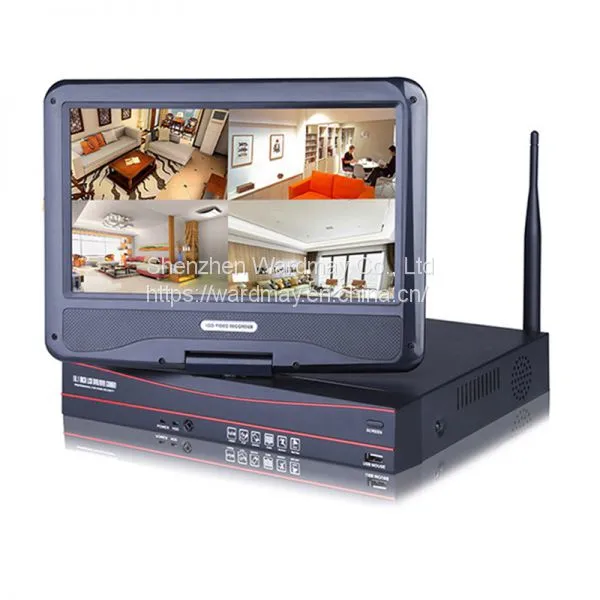

1*4chs Wifi NVR with 10.1 inch LCD Screen;
4*outdoor 30m WIFI 1.3 Megapixel IR waterproof IP cameras with adaptor.
Plug and Play,no need network paring;
strong ability of singnal transmit up to crossing 1 to 4 walls,wifi distance:80-300 meters.
support P2P, App is IP Pro..Available to send P2P ID for testing if you need.
Specification
IP Cameras specifications
| Operating System | Embedded linux | ||
| Image Sensor | 1.3MP 1/3'' Progressive Scan Sensor | ||
| Resolution | 960P | ||
| Frame Specification | H.264 1280*960 25fps | ||
| S/N Ratio | >39.1dB | ||
| Minimum Illumination | Color:0.1 Lux; B/W:0.01 Lux | ||
| Lens | 3.6mm | ||
| IR Distance | 6pcs Laser light leds; 30m Night view | ||
| Waterproof | IP66 | ||
| White Balance | Auto | ||
| Day&Night | Auto/Color/BW | ||
| 3D-DNR | Auto | ||
| Privacy Masking | 4 Zone Selectable | ||
| Anti-thunder Level | Standard IEC61000-4-5 | ||
| Power Input | DC12V-1A | ||
| Consumption | ≤6W | ||
| Interface | RJ45/WIFI 802.11b/g/n | ||
| Working Temperature | -10ºC to +50ºC/30% to80% RH | ||
| Humidity | |||
| Size | 205(L)x70(W)X50(H)mm | ||
| Weight | 500g | ||
WIFI NVR Specifications
| Operating System | Embedded linux OS | ||
| Video input | Network Video | 4CH | |
| Video output | HDMI input | 1ch, resolution: 1024x768, 1366x768, | |
| 1440x900,1920x1080P | |||
| VGA output | 1ch, resolution: 1024x768, 1366x768, | ||
| 1440x900,1920x1080P | |||
| AV CODEC | Video Resolution | 720P/960P/1080P | |
| Specification | synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm | |
| Playback mode | Real time ,Routine,Event | ||
| Backup | USB backup | ||
| HDD | Type | 1*SATA interface | |
| Max Capacity | 4 TB at most for each | ||
| External Interface | Network Interface | 1/4 adaptable RJ45 10M/100M, | |
| 2 WIFI interface | |||
| USB port | USB Interface | 1/2 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug), SMTP(email survice), | |
| PPPoE (dial-up), | |||
| DHCP (Automatically Obtain an Ip address) | |||
| Others | Wifi | 802.11b/g/n | |
| Power | DC 12V 3A | ||
| Consumption(excluding HDD) | 5W | ||
| Working Temperature | -10ºC-55ºC | ||
| Working Humidity | 10%-90% | ||
| Size | 257x210x45mm | ||
| Weight(excluding HDD) | Around 1Kg | ||
Product Pictures
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
