Ahd DVR 4CH 5.0MP IR Night Vision Outdoor CCTV Camera Home Security CCTV System Surveillance DVR Kit
US$ 98 - 98
MOQ: 50 Sets
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-CAHD04M-C
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot CCTV DVR Camera Kit for Sale Good Price 8CH 4.0MP Complete Ahd Camera Full Set From CCTV Cameras SuppliersUS$ 156 - 156MOQ: 50 Sets -
Home Security CCTV System 4CH Full Bullet Waterproof Camera DVR Kit HD 4K 8.0MP 4 Channel Ahd CCTV SetUS$ 185 - 185MOQ: 50 Sets
-
Motion Alert 4K Night Vision 8CH CCTV DVR Kit 8PCS IR Bullet Camera 8MP DVRUS$ 348 - 348MOQ: 50 Sets
-
Wdm New Selling 4chs 1.0MP CCTV Security Surveillance Alarm DVR SystemsUS$ 68.2 - 68.2MOQ: 10 Sets
-
Wdm 8chs 1.0MP CCTV Home Alarm HD Security Video Surveillance DVR KitsUS$ 118.8 - 118.8MOQ: 10 Sets
Brand Name
Wardmay/OEM
Place of Origin
China
Model Number
WDM-CAHD04M-C
Wdm 4CH HD CCTV DVR KIT Complete 5.0MP AHD Cameras System
Features

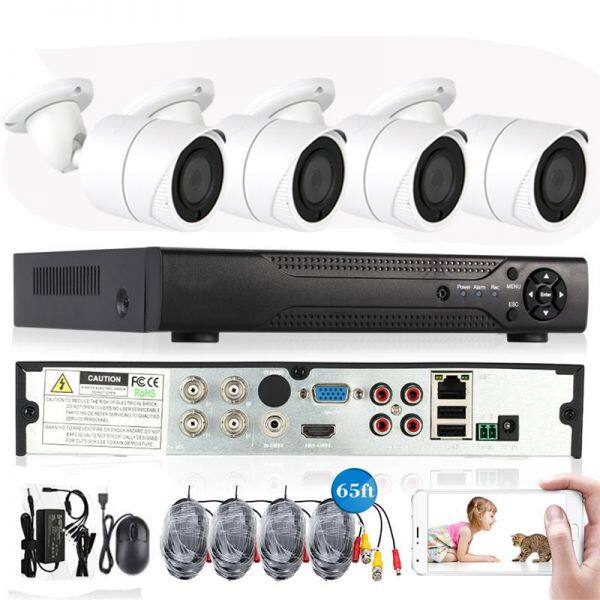

Complete kit including:
- 1*4chs 5.0MP HD Dvr,4chs video/network;
- 4*indoor/outdoor 30m 5.0Megapixel IR waterproof AHD cameras.
-4*18.3m(60 feet) Video+power cable
- 1* 12v 5a Power supply with 1 to 4 DC cable
Specifications
| Model Number | WDM-CAHD04M-C |
| AHD Cameras specifications | |
| Video | |
| Sensor | FH8538M+SOI K03 |
| Resolution | 5.0MP (3072×1728) |
| Minimum Illumination | 0.000LUX/F1.2(Led on) |
| Day/Night Mode | Color During day/switches to B&W at night |
| Signal System | PAL/NTSC |
| Effective Pixel | PAL:(3072×1728)@25fps ; PAL:(3072×1728)@30fps |
| Video Standard | AHD/TVI/CVI/1200TVL CVBS Standard |
| Lens and IR | |
| Lens | 3.6mm |
| IR Distance | Up to 30m |
| IR Cut Filter | yes |
| General | |
| Waterproof | IP66 |
| Indoor / Outdoor | Suitable for Indoor or Outdoor use |
| Power Input | DC12V1A(4pcs) |
| Working Temperature | -10°C ~+60°C |
| DVR Specifications | |
| Operating System | Embedded linux |
| Video&Audio | |
| Video compression | H.264 |
| Encode | 4CH*5.0MP@15fps/ 4M@18fps/1080P Realtime |
| Analog input | 4CH*5.0MP |
| Hybrid input | 4*4M(Analog)+4*5M(IP) |
| Audio Input | 4 RCA Input |
| Audio Output | 1 RCA Output |
| Audio compression | G.711A |
| Recording | |
| Compression Format | H.264 |
| Recording Modes | Manual/Motion/Schedule |
| Hard drive | Internal SATA hard drive required for recording,support up to 4TB |
| Network | |
| LAN Connection | YES |
| Network Interface | RJ45 |

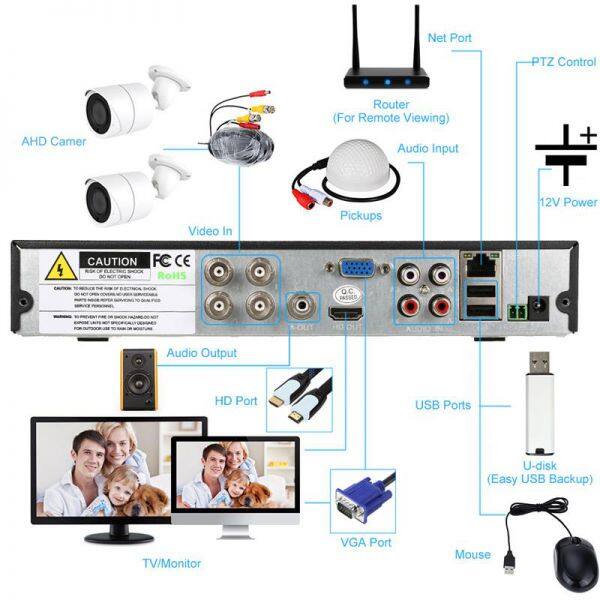

| Interface | |
| Video input | 4ch BNC |
| Video output | 1ch VGA, 1ch HDMI |
| USB | 2* USB 2.0 |
| HDD | 1*SATA port (Max 4TB/per) |
| General | |
| Power Supply | DC 12V |
| Back up method | External storage via USB |
| Temperature/Humidity | -20ºC+50ºC; -10%-90% |
| Remote Control | YES |
| DVR Language | |
| Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on | |

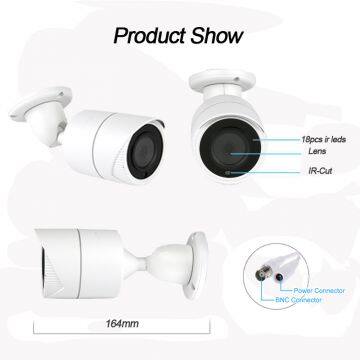

Product Show
Product Show
Contact us:
------------------------------------------------------------
Mary Lee
Tel: +86-075584575180 Mobile/Whatsap:+86-15915495854
Compay Web: Web
Retail Web: /store/5125026
Address:403, 4 Floor, MaYi Pioneer Park, Ru Yi Road, Ai Lian, Long Gang, ShenZhen, China, 518100
