Motion Alert 4K Night Vision 8CH CCTV DVR Kit 8PCS IR Bullet Camera 8MP DVR
US$ 348 - 348
MOQ: 50 Sets
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-CAHD08X-C
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wdm New Selling 4chs 1.0MP CCTV Security Surveillance Alarm DVR SystemsUS$ 68.2 - 68.2MOQ: 10 Sets -
Wdm 8chs 1.0MP CCTV Home Alarm HD Security Video Surveillance DVR KitsUS$ 118.8 - 118.8MOQ: 10 Sets
-
Wdm CCTV 16chs 1.0MP Day and Night Security Alarm DVR SystemsUS$ 239.8 - 239.8MOQ: 10 Sets
-
Wdm CCTV 4chs 2.0MP Security Video Surveillance Alarm DVR SystemsUS$ 74.8 - 129.8MOQ: 10 Sets
-
Wdm 8chs 2.0MP CCTV Home Alarm HD Security Video Surveillance System DVR KitsUS$ 130.9 - 237.6MOQ: 10 Sets
Brand Name
Wardmay/OEM
Place of Origin
China
Model Number
WDM-CAHD08X-C

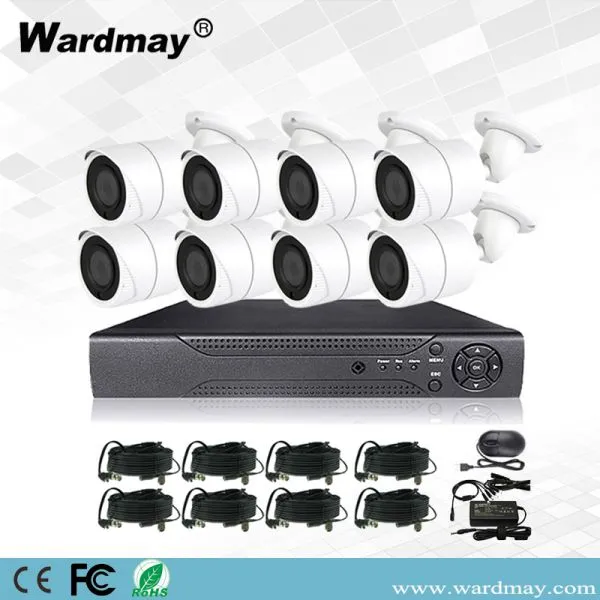

Wdm 8CH HD CCTV DVR KIT Complete 8.0MP AHD Cameras System
Features

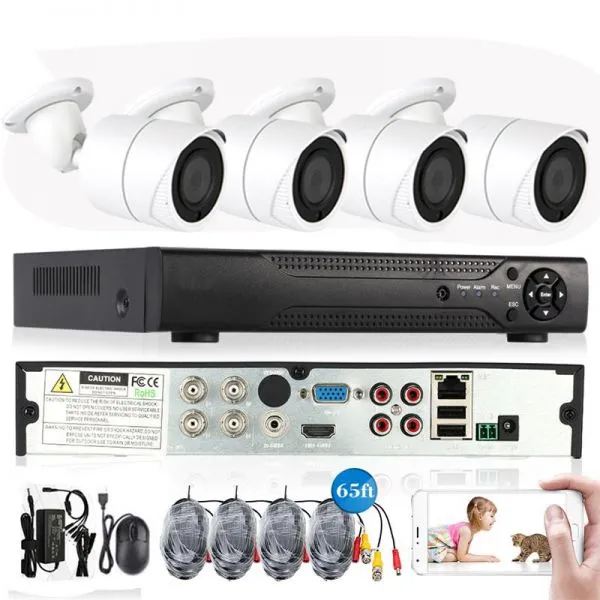

Complete kit including:
- 1*8chs 8.0MP HD Dvr,4chs video/network;
- 8*indoor/outdoor 30m 8.0Megapixel IR waterproof AHD cameras.
-8*18.3m(60 feet) Video+power cable
- 2* 12v 5a Power supply with 1 to 4 DC cable
Specifications
| Model Number | WDM-CAHD08X-C | |

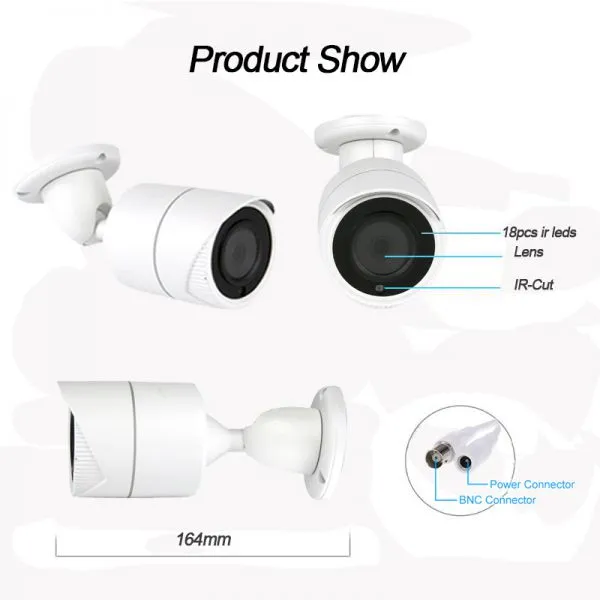

| AHD Cameras specifications | ||
| Video | ||
| Sensor | Nextchip2481+OS12895 | |
| Resolution | 8.0MP (3840×2160) | |
| Minimum Illumination | 0.01LUX / F1.2 | |
| Day/Night Mode | Color During day/switches to B&W at night | |
| Signal System | PAL/NTSC | |
| Effective Pixel | PAL:(3840×2160)@25fps ; PAL:(3840×2160)@30fps | |
| Video Standard | AHD/TVI/CVI/1200TVL CVBS Standard | |
| Lens and IR | ||
| Lens | 3.6mm | |
| IR Distance | Up to 30m | |
| IR Cut Filter | yes | |
| General | ||

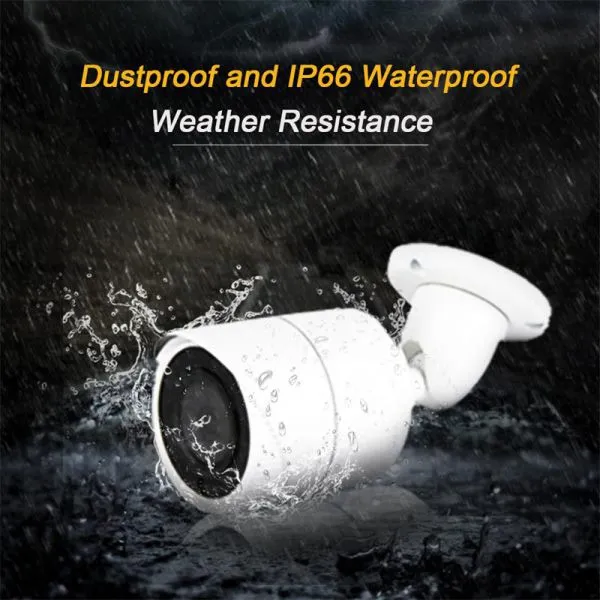

| Waterproof | IP66 | |
| Indoor / Outdoor | Suitable for Indoor or Outdoor use | |
| Power Input | DC12V1A(8pcs) | |
| Working Temperature | -10°C ~+60°C | |
| DVR Specifications | ||
| Operating System | Embedded linux | |
| Video&Audio | ||
| Video compression | H.264 | |
| Encode | 8CH*8.0MP@15fps/ 4M@18fps/1080P Realtime | |
| Analog input | 8CH*8.0MP | |
| Hybrid input | 4*8M(Analog)+4*5M(IP) | |
| Audio Input | 8 RCA Input | |
| Audio Output | 1 RCA Output | |
| Audio compression | G.711A | |
| Recording | ||
| Compression Format | H.264 | |
| Recording Modes | Manual/Motion/Schedule | |
| Hard drive | Internal SATA hard drive required for recording,support up to 4TB | |
| Network | ||
| LAN Connection | YES | |
| Network Interface | RJ45 | |

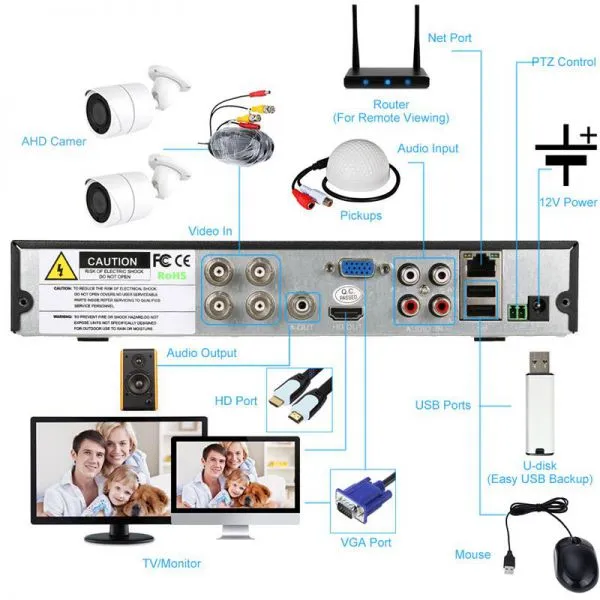

| Interface | ||
| Video input | 8ch BNC | |
| Video output | 1ch VGA, 1ch HDMI | |
| USB | 2* USB 2.0 | |
| HDD | 1*SATA port (Max 4TB/per) | |
| General | ||
| Power Supply | DC 12V | |
| Back up method | External storage via USB | |
| Temperature/Humidity | -20ºC+50ºC; -10%-90% | |
| Remote Control | YES | |
| DVR Language | ||
| Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on | ||
