Automatic Commercial Vacuum Meat Tumbler

Automatic Commercial Vacuum Meat Tumbler photo-1

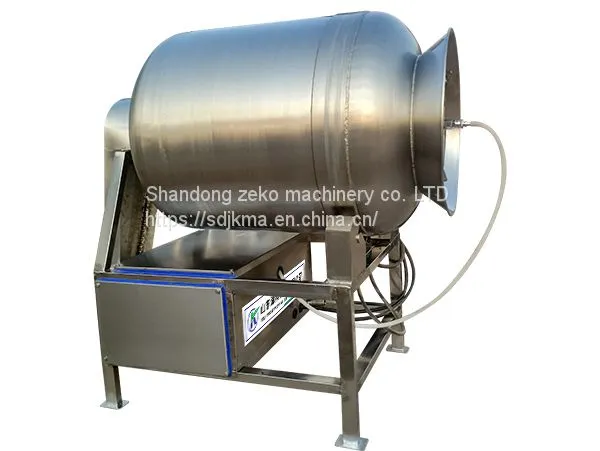

Automatic Commercial Vacuum Meat Tumbler photo-2
US$ 3270 - 3290 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Zeko
Place of Origin:
China
Model Number:
120L
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
60 days
Brand Name Zeko
Place of Origin China
Model Number 120L
Type Kebab
After-sales Service Provided Engineers available to service machinery overseas
Warranty One year warranty and lifetime service
Weight 800kg
Dimension(L*W*H) 2350 x 1330 x 1990mm
Production Capacity 900kg
Voltage 220/380
Application Meat processing
Condition New
Power(W) 5.1
Automatic Grade Automatic

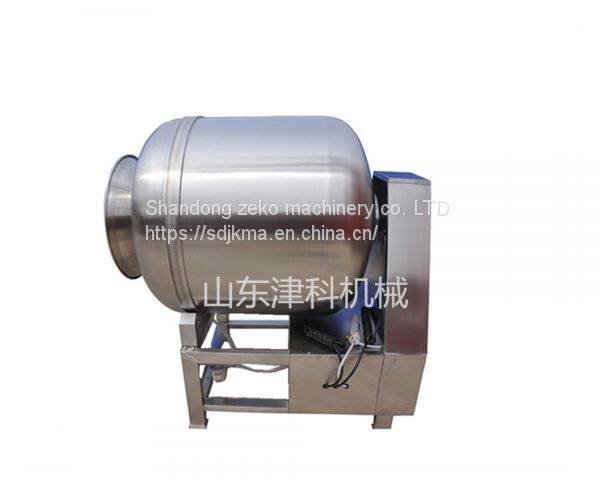

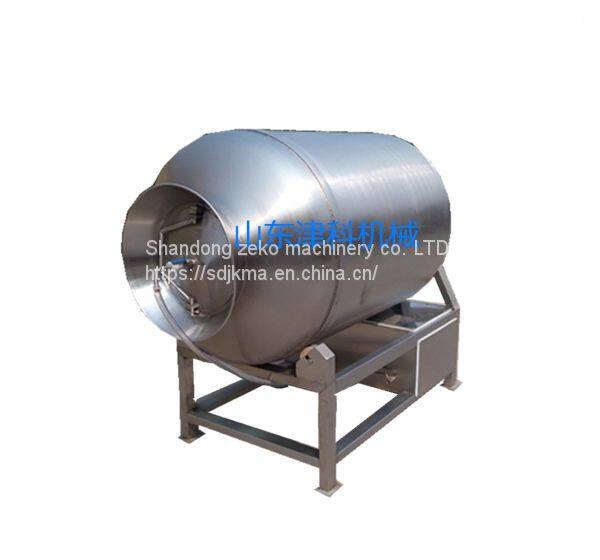

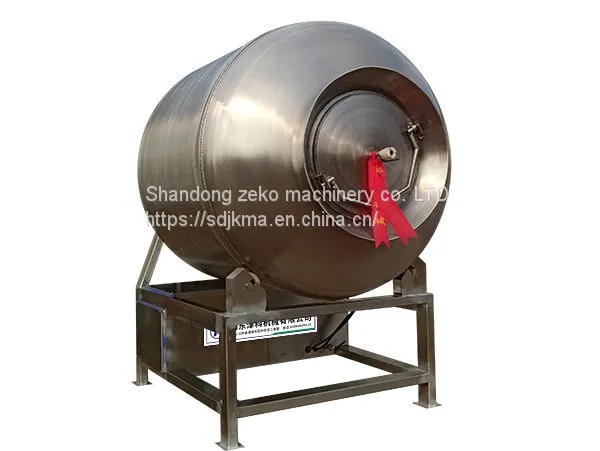

The automatic vacuum tumbler is to roll the meat up and down in the drum under a vacuum state, and the impact will increase the physical volume of the meat, increase the elasticity and water retention of the product, and improve the quality and taste of the product.
The automatic vacuum tumbler has a forward and reverse function. Discharge thoroughly and clean. Changed the pickling time of the product and improved production efficiency.
Automatic vacuum tumbler roller adopts pressure-type capping structure at both ends, which increases the internal space of the roller and makes the material evenly pickled.
Shandong Zeko Machinery Co., Ltd. is a food machinery manufacturer integrating consulting, production, sales and service. The product specifications are complete and can meet the needs of different customers. Customized according to the customer's production capacity, product warranty for one year, lifetime service. Inquiries + 86-15094949111.



Technical parameters

The cylinder volume

50L

300L

500L

600L

800L

1000L

1200L

1400L

1800L

Charge (Kg)

30

225

375

450

600

750

900

1050

1350

Vacuum (MPa)

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

0.04-0.08

Drum speed (r/min)



35

7.5

7

7

6.5

6

4

4

4

Total power (Kw)



1.21

2.25

2.95

2.95

3.75

4.75

5.1

5.1

6.6

Overall dimension (L x W x H)mm



840 x 500 x 930

1420 x 920 x 1450

1780 x 1020 x 1550

1980 x 1020 x 1550

2000 x 1230 x 1800

2140 x 1330 x 1900

2350 x 1330 x 1990

2400 x 1440 x 2100

2700 x 1540 x 2220

The total weight (Kg)

100

440

500

530

600

630

800

980

1300
