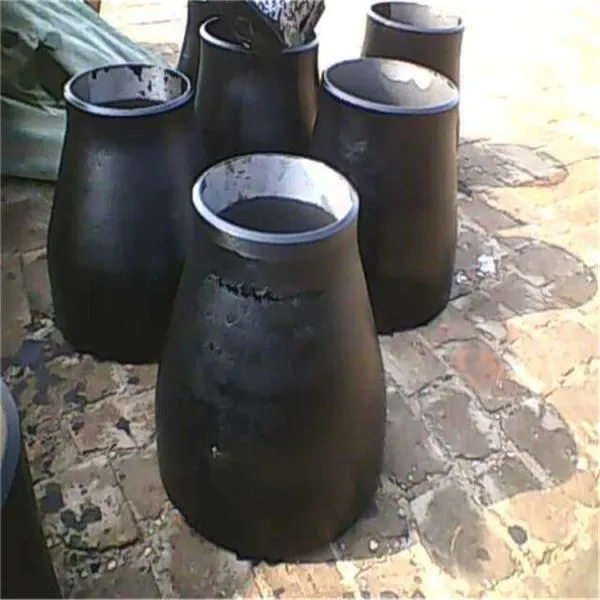

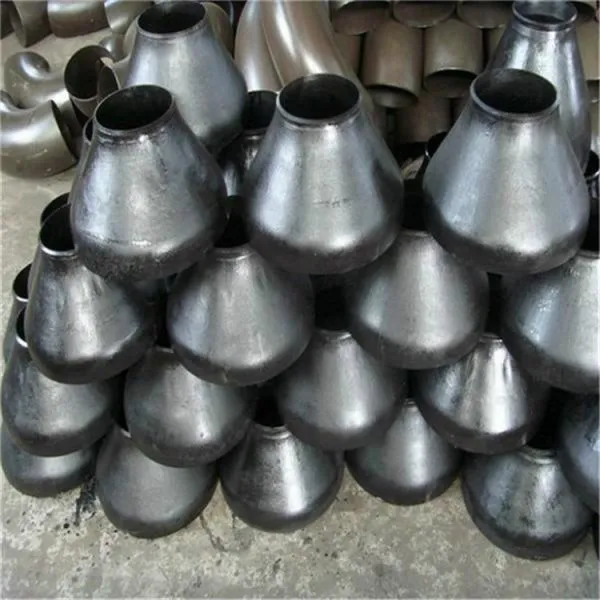

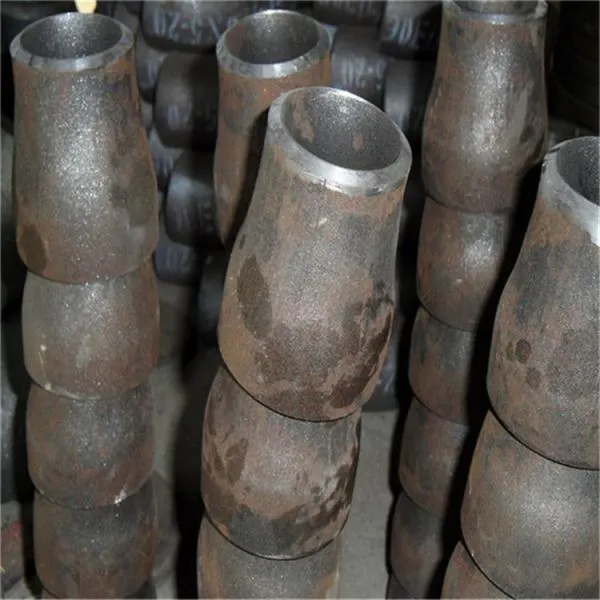

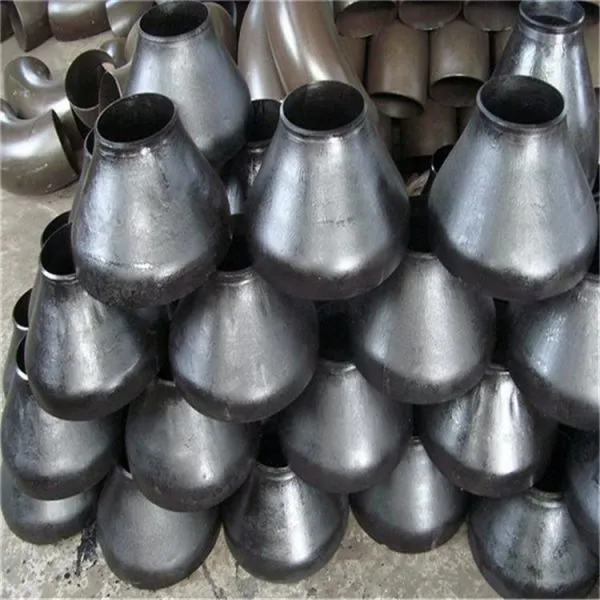

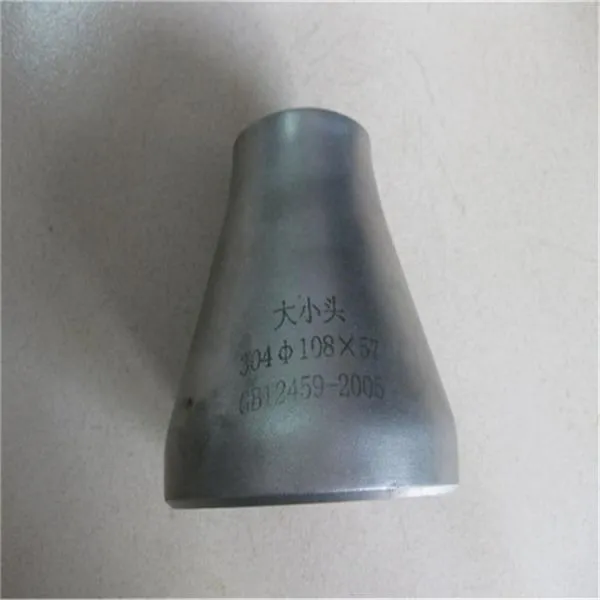

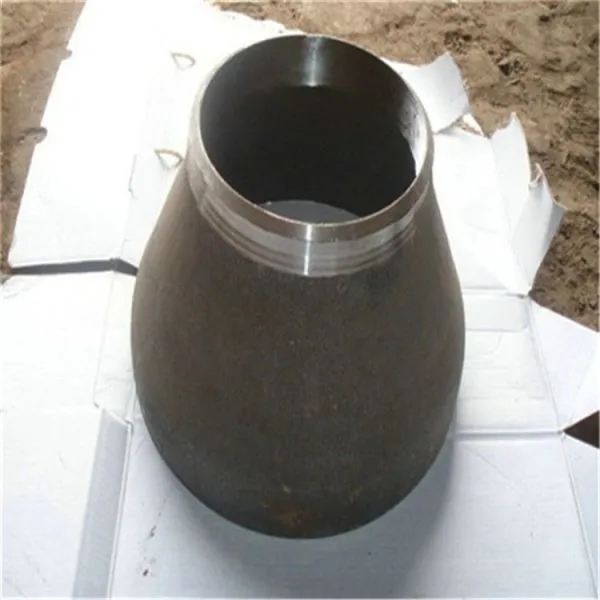

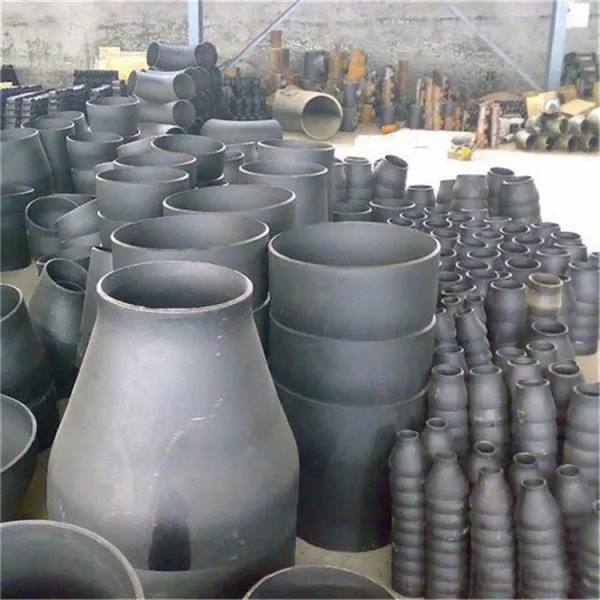

For Water Supplying System Carbon Steel Seamless Concentric Reducer
- 0 per Month
- He Bei
- T/T L/C
- 20 days
You May Like
-
Stainless Steel Concentric Reducer Sand Blast Stub End
-
For Join Tube Sections Sanitary Eccentric Reducer Pipe Fitting
-
Grooved And Grooved Fittings Carbon Steel Pipe Fittings Concentric Reducer
-
For Water Line Astm/asme A403 Wp 316-316l Precision Elbow Pipe Fitting
-
For Garden Hose Astm/asme A403 Wp 347 Alloy Steel Pipe Elbow
-
For Water Supply Astm/asme Wp 22,wp5,wp9 Stainless Steel Elbow
Product Details
Thickness | Sch80 | |
Application | Chemical, Water, Oil And Gas, Electricity | |
Model Number | 10"x6" | |
Brand Name | Di Ruike | |
Product Description
Nominal | D1 | D2 | Lenght | Nominal | D1 | D2 | Lenght | ||||
A series | B series | A series | B series | A series | B series | A series | B series | ||||
25×20 | 33.7 | 32 | 26.9 | 25 | 51 | 500×350 | 508 | 529 | 355.6 | 377 | 508 |
25×15 | 33.7 | 32 | 21.3 | 18 | 550×550 | 559 | - | 508 | 529 | 508 | |
32×25 | 42.4 | 38 | 33.7 | 32 | 51 | 550×450 | 559 | - | 457 | 478 | |
32×20 | 42.4 | 38 | 26.9 | 25 | 550×400 | 559 | - | 406 | 426 | ||
32×15 | 42.4 | 38 | 21.3 | 18 | 600×500 | 610 | 630 | 508 | 529 | 508 | |
40×32 | 48.3 | 45 | 42.4 | 38 | 64 | 600×450 | 610 | 630 | 457 | 478 | |
40×25 | 48.3 | 45 | 33.7 | 32 | 600×400 | 610 | 630 | 406 | 426 | ||
40×20 | 48.3 | 45 | 26.9 | 25 | 650×600 | 660 | - | 610 | 630 | 610 | |
50×40 | 60.3 | 57 | 48.3 | 45 | 76 | 650×500 | 660 | - | 508 | 529 | |
50×32 | 60.3 | 57 | 42.4 | 38 | 650×450 | 660 | - | 457 | 478 | ||
50×25 | 60.3 | 57 | 33.7 | 32 | 700×600 | 711 | 720 | 610 | 630 | 610 | |
65×50 | 76.1 | 76 | 60.3 | 57 | 89 | 700×500 | 711 | 720 | 508 | 529 | |
65×40 | 76.1 | 76 | 48.3 | 45 | 700×450 | 711 | 720 | 457 | 478 | ||
65×32 | 76.1 | 76 | 42.4 | 38 | 750×700 | 762 | - | 711 | 720 | 610 | |
80×65 | 88.9 | 89 | 76.1 | 76 | 89 | 750×600 | 762 | - | 601 | 630 | |
80×50 | 88.9 | 89 | 60.3 | 57 | 750×500 | 762 | - | 508 | 529 | ||
80×40 | 88.9 | 89 | 48.3 | 45 | 800×700 | 813 | 820 | 711 | 720 | 610 | |
100×80 | 88.9 | 108 | 88.9 | 89 | 102 | 800×600 | 813 | 820 | 610 | 630 | |
100×65 | 114.3 | 108 | 76.1 | 76 | 800×500 | 813 | 820 | 508 | 529 | ||
100×50 | 114.3 | 108 | 60.3 | 57 | 850×700 | 864 | - | 711 | 720 | 610 | |
125×100 | 114.3 | 133 | 114.3 | 108 | 127 | 850×600 | 864 | - | 610 | 630 | |
125×80 | 139.7 | 133 | 88.9 | 89 | 850×500 | 864 | - | 508 | 529 | ||
125×60 | 139.7 | 133 | 76.1 | 76 | 900×800 | 914 | 920 | 813 | 820 | 610 | |
150×125 | 139.7 | 159 | 139.7 | 133 | 140 | 900×700 | 914 | 920 | 711 | 720 | |
150×100 | 168.3 | 159 | 114.3 | 108 | 900×600 | 914 | 920 | 610 | 630 | ||
150×80 | 168.3 | 159 | 88.9 | 89 | 1000×900 | 1016 | 1020 | 914 | 920 | 610 | |
200×150 | 168.3 | 219 | 168.3 | 159 | 152 | 1000×800 | 1016 | 1020 | 813 | 820 | |
200×125 | 219.1 | 219 | 139.7 | 133 | 1000×700 | 1016 | 1020 | 711 | 720 | ||
200×100 | 219.1 | 219 | 114.3 | 108 | 1050×1000 | 1067 | - | 1016 | 1020 | 610 | |
250×200 | 219.1 | 273 | 219.1 | 219 | 178 | 1050×900 | 1067 | - | 914 | 920 | |
250×125 | 273 | 273 | 168.3 | 159 | 1050×800 | 1067 | - | 813 | 820 | ||
250×150 | 273 | 273 | 139.7 | 133 | 1100×1000 | 1118 | 1120 | 1016 | 1020 | 610 | |
300×250 | 273 | 325 | 273 | 273 | 203 | 1100×900 | 1118 | 1120 | 914 | 920 | |
300×200 | 323.9 | 325 | 219.1 | 219 | 1100×800 | 1118 | 1120 | 813 | 820 | ||
300×150 | 323.9 | 325 | 168.3 | 159 | 1200×1100 | 1220 | 1220 | 1118 | 1120 | 711 | |
350×300 | 323.9 | 377 | 323.9 | 325 | 330 | 1200×1000 | 1220 | 1220 | 1016 | 1020 | |
350×250 | 355.6 | 377 | 273 | 273 | 1200×900 | 1220 | 1220 | 914 | 920 | ||
400×200 | 355.6 | 377 | 291.1 | 219 | 1300×1200 | 1321 | 1320 | 1120 | 1120 | 711 | |
400×350 | 355.6 | 426 | 355.6 | 377 | 356 | 1300×1100 | 1321 | 1320 | 1118 | 1120 | |
400×300 | 406.4 | 426 | 323.9 | 325 | 1300×1000 | 1321 | 1320 | 1016 | 1020 | ||
400×250 | 406.4 | 426 | 273 | 273 | 1400×1300 | 1420 | 1420 | 1321 | 1320 | 711 | |
450×400 | 406.4 | 478 | 406.4 | 426 | 381 | 1400×1200 | 1420 | 1420 | 1220 | 1220 | |
450×350 | 457 | 478 | 355.6 | 377 | 1400×1100 | 1420 | 1420 | 1118 | 1120 | ||
450×300 | 457 | 478 | 323.6 | 325 | 1500×1400 | 1524 | 1520 | 1420 | 1420 | 711 | |
500×450 | 457 | 529 | 457 | 478 | 508 | 1500×1300 | 1524 | 1520 | 1321 | 1320 | |
500×400 | 508 | 529 | 406.4 | 426 | 1500×1200 | 1524 | 1520 | 1220 | 1220 |
Model No.: 10"x6"
Type: Concentric, ASME B16.5 Pipe Fittings Stainless Steel
Material: Carbon Steel
Customized: Non-Customized
Thickness: Sch80
Certification: ISO.UKS.SGS.BV
Application: Chemical, Water, Oil And Gas, Electricity
Size: 4x3" Sch40
Materials: A234 WBP-WP1-WP12-WP11, A403 WP 304-304L-316-316L
Standard: GB/ANSI/ GOST/ JIS/ DIN
Package: Wooden Boxes, Wooden Pallets
Crafts: Cold Extrusion, Thermoforming

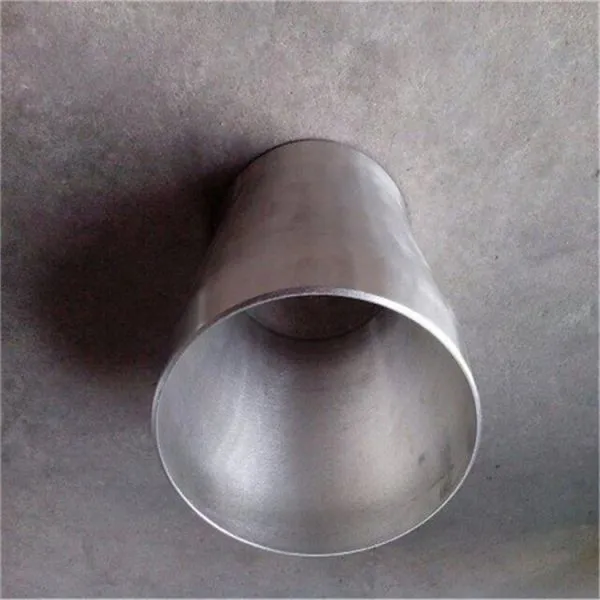

Concentric Reducers are used to join pipe or tube sections on the same axis. They provide an in-line conical transition between pressurized pipes of differing diameters. A pipe reducer can be a single diameter change or a multiple diameter change. The pipes cannot recognize what the outside configuration of the pipe reducer looks like.
The pipe flow is affected by the inside diameter conical transition configuration which can be axially moved and externally reconfigured to provide for more economical reducer fittings. Thus, concentric reducers connect pipes of unequal size but have a common centerline. In other words, it is a type of pipe fitting with different size ends to join pipes of different diameter that joins pipe sections on the same axis.
