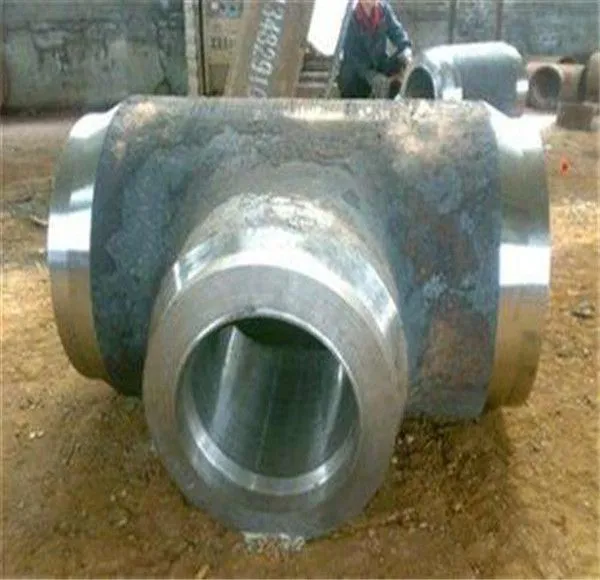

For Oil And Gas Seamless Welding Equal Tee Din2615 Sand Blasting

Hot Cheaper Din2615 Seamless Tee . It is mainly used to either combine or split a fluid flow. Most common tees have the same inlet and outlet sizes, but reducing tees are also available. As a professional pipe tee manufacturer in China, we can provide high quality straight tees and reducing tees to worldwide customers. According to the type of raw material, our product can be sorted into carbon Steel Tee, Stainless Steel Tee, alloy steel tee, high-strength steel tee(Line pipe tee), low-temperature steel tee, and so on. Relying on superior quality and low price, our products are very popular in Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and some other countries.

Buttweld Pipe Tee Production Range – Equal Tee, Unequal Tee (Reducing Tee)

oduction Range – Equal Tee, Unequal Tee (Reducing Tee)

Outside Diameter: Seamless Pipe Tee ( 1/2″~24″), ERW / Welded / Fabricated Pipe Tee (1/2″~48″)

Types: Equal Tees, Reducing Tees

Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards – Pipe Tee

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Fittings Buttwelding

ASME B16.25 – Buttwelding Ends ASME B16.28 – `Wrought Steel Short Radius Elbows and Buttwelding Returns`

MSS SP-43 – `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

A234 WPB XS 18x14 Steel Tee mechanical properties testing should be consistent with the relevant technical requirements. The base metal, weld, and heat affected zone of finished pipe fittings shall be subjected to a Charpy V-notch impact test and provided with shear area values at the fracture point at the temperatures required for the technical specifications. (Charpy impact test, take a group of three full-size specimen, specimen notch orientation should be vertical wall thickness surface)
