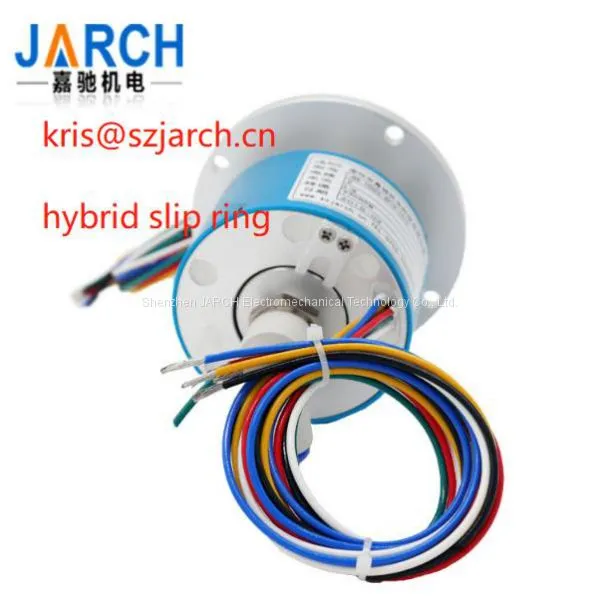

JARCH 1-way gas multi-channel electric slip ring gas rotary joint electric combination slip ring gas electric integrated slip ring
Feature:
**** ID/OD:10/78mmARCH
**** 1 passage with 10-12 tubeJARCH
**** Rugged anodized aluminum constructionARCH
**** Precision ball bearings for long life
**** Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
**** Custom modifications to our stock products significantly reducing lead times and costs
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY025-6E-1G provide 1 passage 10 ~12mm rotary union combine 36 circiuts 2A signal or 15A Power electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
Dimensions & Electrical Specifications:
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
Benefits:
***Unique signal handling performance with minimal electrical circuit noise
***Tight packaging to fit in the most demanding space constraints
***Fully compatible with both analog and TTL control level signals
***Precision ball bearings for long life
***Sealed units available,IP67 optional
***Rugged anodized aluminum construction
***Low Cost ,Preferential prices
***Small size
***Rapid delivery
Installation Instructions--Flange mounted:
Applications:
-
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
