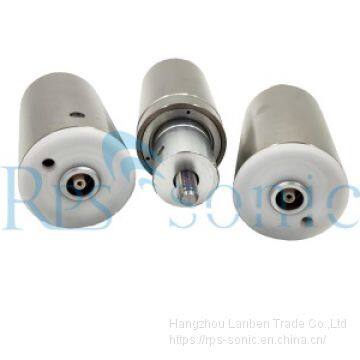

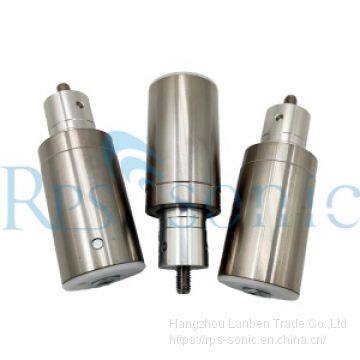

Help CenterPacking Ultrasonic Transduce Ultrasound Transducer Types With Ceramic Discs 4pcs
Related Products
-
20 Khz Ultrasonic Transducer With Horn For Ultrasonic Mask MachineNegotiableMOQ: 1 Piece -
Welding Earloop Automated Disposable Mask Making Machine 20K 2000W Ultrasonic Welding TransducerUS$ 150 - 250MOQ: 5 Pieces
-
Dukane Type Replacement High Power Ultrasonic Transducer For Plastic WeldingNegotiableMOQ: 1 Piece
-
High Power Ultrasonic Transducer 20khz Replacement Dukane Type 110-3122NegotiableMOQ: 1 Piece
-
High Quality 20kHz 3000watt Replacement Dukane Type Ultrasonic TransducerNegotiableMOQ: 1 Piece

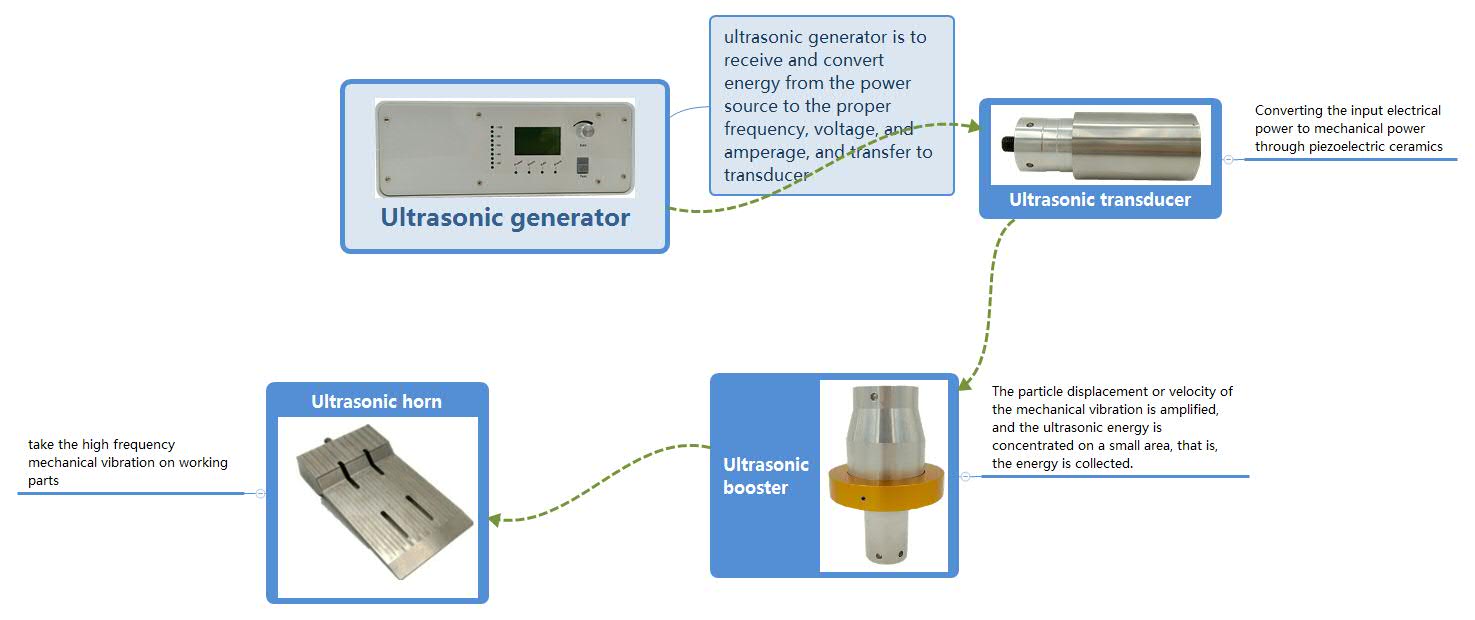

What is ultrasonic transducer
Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.

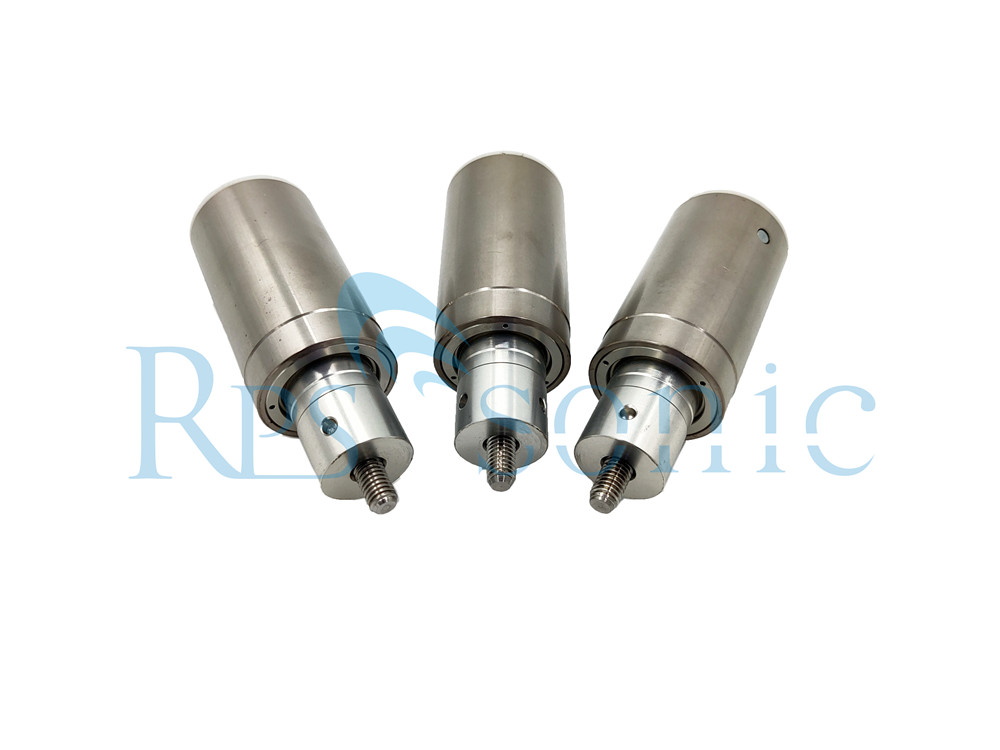

Parameter of C35-10 Rinco Ultrasonic Transducer 35Khz Made in China
Specifications:
-
Piezo converter converts 35kHz electrical signal from ultrasonic welding device power supply into mechanical vibration. That is why converter is very essential part of ultrasonic welding.
Piezoelectric transducer technical information:
Operating frequency:
35kHz
Model:
C35-10
Housing:
closed steel housing
Electrical connector:
Female coaxial cable connector Lemo ERA.1S
Air cooling:
Possible to add a connector which fits into a M5 threads. This connector can be connected into cooling air supply.
Max operating temperature:
50°C, if used in warmer temperature or at constant use then converter requires air coolin.
Compatibility:
All Rinco ultrasonic generators (power supplies) which operate at 35kHz.
Ultrasonic booster amplifier connection:
M8x1.25 attachment
This transducer made by RPS-SONIC, can work on rinco welding machine well. All transducer 24hours test on rinco machine before shippment.
Service and shipment
l Warranty one year for transducer.
l You can contact us for technical inquiry any time.
l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
l We supply customized products service for small quantity also.
l Shipment by FED-EX /DHL
