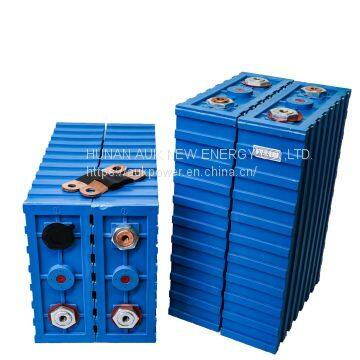

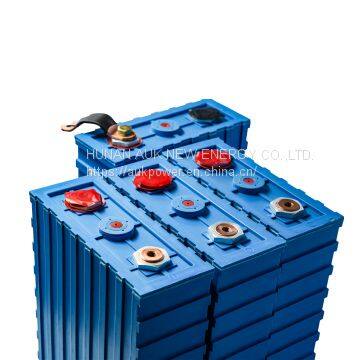

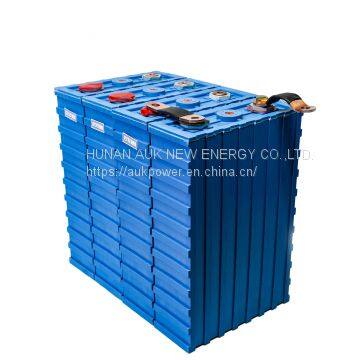

Newest SE200 Class A CALB 3.2V 200ah lifepo4 battery cell
SE200 CALB 3.2v 200ah lifepo4 battery size:
Items |
Description |
Dimensions (mm) |
L |
Length |
182 ± 1 |
W |
Width |
71 ± 1.5 |
H |
Height |
279 ± 2 |
Technical Parameters
NO. |
Items |
Parameter |
Remarks |
|
1 |
Nominal Capacity |
200Ah |
Standard Discharge |
|
2 |
Minimal Capacity |
200Ah |
Standard Discharge |
|
3 |
Work Voltage |
2.5~3.65V |
||
4 |
Internal Resistance(Ac. 1kHz) |
0.1~0.5mΩ |
Fresh Cell,30%SOC |
|
5 |
Charging Time |
Standard Charge |
~4h |
Reference Value |
Fast Charge |
~1h |
|||
6 |
Recommended SOC Window |
SOC :10%~90% |
||
7 |
Operating Temperature |
Charging Temperature |
0~45°C |
Refer to section 4.2 |
Discharging Temperature |
-20~55°C |
Refer to section 4.4 |
||
8 |
Weight |
5.7±0.3kg |
||
9 |
Shell Material |
Plastic |
||
Discharging Model
NO. |
Parameter |
Specifications |
Remarks |
4.4.1 |
Standard Discharging Model |
At room temperature, discharged to 2.5V at a constant current of 200A. |
|
4.4.2 |
Maximum Constant Discharging Current |
200A |
|
4.4.3 |
Maximum Pulse Discharging Current(Long Pulse) |
400A |
Maximum duration: 3min |
4.4.4 |
Maximum Pulse Discharging Current(Short Pulse) |
600A |
When battery temperature is below 50 ℃, the maximum discharge can last 10s |
4.4.5 |
Standard Discharging Temperature |
25±2℃ |
Cell Temperature |
4.4.6 |
Absolute Discharging Temperature |
-20~55℃ |
No matter what the discharging model is, once the temperature of the cell is above the absolute discharging temperature, discharging should be stopped. |
Battery Shipping Way:
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantitie
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment
or other specification to place an order.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
(5). What kind of guarantee you give?
Our battery the warranty time is 1year .
