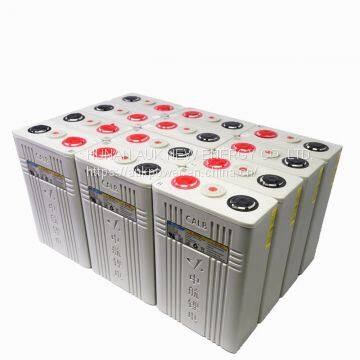

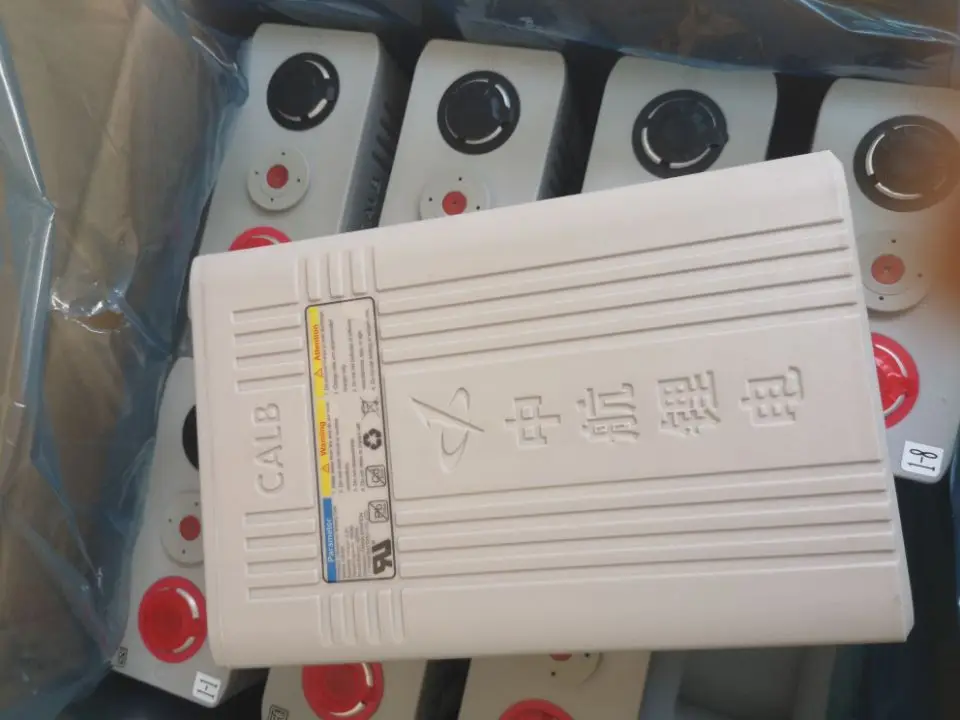

CALB CA100 3.2v 100ah lifepo4 battery cell
CA100 3.2v 100ah lifepo4 battery specification:
Items |
Description |
Dimensions |
L |
Length |
142mm ±1.0mm |
W |
Width |
67mm±1.0mm |
H |
Height |
215.5mm±2.0mm |
Technical Parameters
NO. |
Items |
Parameter |
Remark |
|
1 |
Nominal Capacity |
100Ah |
Standard Discharge |
|
2 |
Minimal Capacity |
100Ah |
Standard Discharge |
|
3 |
Work Voltage |
2.5~3.65V |
||
4 |
(Ac. 1kHz) Internal Resistance(Ac. 1kHz) |
0.1~0.6mΩ |
30%SOC Fresh Cell,30%SOC |
|
5 |
Charging Time |
Standard Charge |
~4h |
Reference Value |
Fast Charge |
~1h |
|||
6 |
Recommended SOC Window |
SOC :10%~90% |
||
7 |
Operating Temperature |
Charging Temperature |
0~45°C |
|
Discharging Temperature |
-20~55°C |
|||
8 |
Weight |
3.3±0.2 kg |
||
9 |
Shell Material |
Plastic |
||
Charging Model
NO. |
Parameter |
Values |
Notice |
4.2.1 |
Standard Charging Model |
At room temperature, charged to 3.65V at a constant current of 30A, and then, changed continuously with constant voltage of 3.65V until the current was not more than 5±0.5A. |
|
4.2.2 |
Standard Charging Temperature |
25±2℃ |
Cell Temperature |
4.2.3 |
Absolute Charging Temperature |
0~45℃ |
No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped. |
4.2.4 |
Absolute Charging Voltage |
Maximum 3.75V |
No matter what the charging model is, including pulse charging, once the voltage of the cell is above the absolute charging voltage, charging should be stopped. |
Discharging Model
NO. |
Parameter |
Specifications |
Notice |
4.4.1 |
Standard Discharging Model |
At room temperature, discharged to 2.5V at a constant current of 100A. |
|
4.4.2 |
Maximum Constant Discharging Current |
100A |
|
4.4.3 |
Maximum Pulse Discharging Current(Long Pulse) |
200A |
Maximum duration: 3min |
4.4.4 |
Maximum Pulse Discharging Current(Short Pulse) |
300A |
When battery temperature is below 50 ℃, the maximum discharge can last 30s |
4.4.5 |
Standard Discharging Temperature |
25±2℃ |
Cell Temperature |
4.4.6 |
Absolute Discharging Temperature |
-20~55℃ |
No matter what the discharging model is, once the temperature of the cell is above the absolute discharging temperature, discharging should be stopped. |

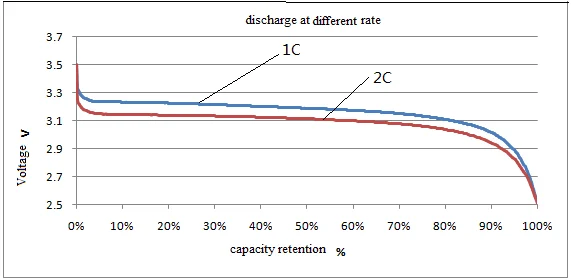

A typical curve of single cell discharged at room temperature.

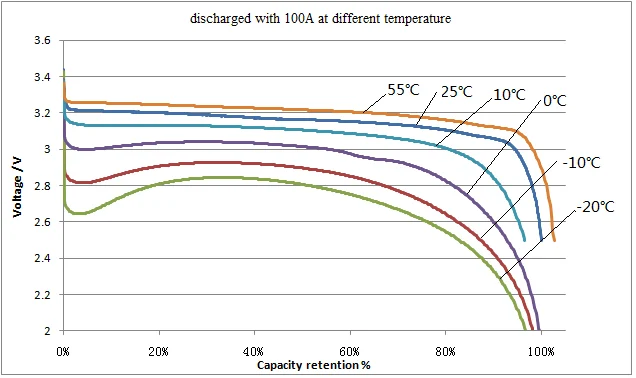

A typical curve of single cell discharged with 100A at different temperature.

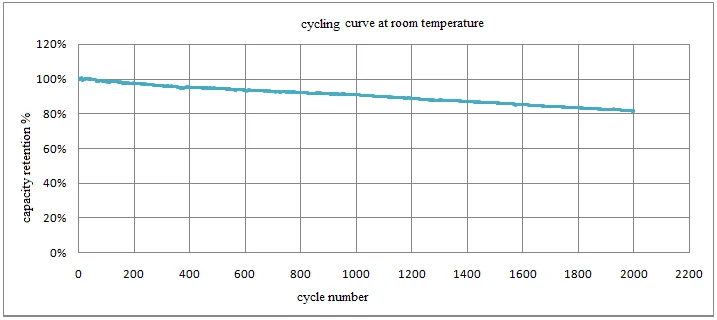

2000 times cycling curve of single cell
(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
(5). What kind of guarantee you give?
Our battery the warranty time is 1year .More details info,pls kindly feel free to contact with us!
