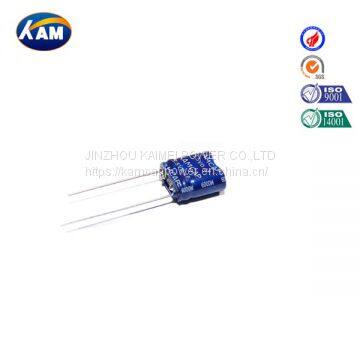

5.5V Combined Type Seires Super Capacitors
- 100000 Bag / Bags per Month
- T/T
You May Like
Product Details
| Brand Name | KAMCAP | Place of Origin | China |
Product Description
SE series Performance characteristics: standard energy series.
SE series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE Series specification sheet
Series name | SE Series |
Type name | SE -5R5 |
Rated voltage | 5.5V |
VR | |
Surge voltage | 5.8V |
Capacity range | 0.33F~7.5F |
Operating temperature range | -25~ +70°C |
Product life | Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
High temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
SP Series Performance characteristics：Standard power series
SP Series Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SP Series specification sheet
Series name | SP Series |
Type name | SP -5R5 |
Rated voltage | 5.5V |
VR | |
Surge voltage | 5.8V |
Capacity range | 0.1F~8F |
Operating temperature range | 40 ~ +70°C |
Product life | Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
High-temperature endurance life: 70 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 3 times |
Are you looking for 7.5 v super capacitor? As one of the most professional supercapacitor manufacturers in China, Kamcap works to provide high-quality supercapacitor ultracapacitor to our customers. Different types of supercapacitors can be chosen to meet different requirements.
