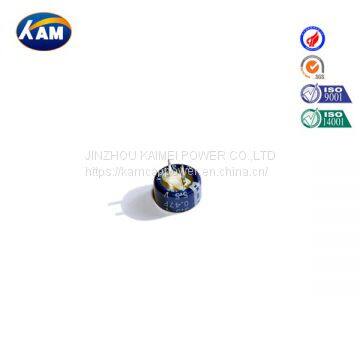

Brief introduction of coin cell supercapacitor
Supercapacitor or double layer capacitor is a brand a new type of energy storage device. It is one of the most advanced inventions in recent years, which is much better than conventional capacitor from many aspects. Supercapacitor or ultracap is now widely used, of which coin cell supercapacitor plays an important role in the application of supercap capacitor. Kamcap is one of the most professional supercapacitor suppliers from China. Kamcap strictly controls the production lines of small supercapacitor and our coin capacitor meets the ISO 9001 Standard and ISO 14001 Standard.
The performance of coin cell supercapacitor
The types of supercapacitor are from 0.047 Frad 5.5V to 1.5 Frad 5.5V, of which the Kamcap 5.5V 1.5F type super cap is one of the most popular products. We also have type C, type H and type V these three coin cell supercapacitor types. The performance characteristics of 0.047F~1.5F super capacitor 5.5 v are standard energy series. Our products perform excellent voltage holding characteristics and can be applied to many important areas.
The typical application of coin cell supercapacitor
The typical application of our 0.047F~1.5F 5.5 V ultracapacitor,such as 5.5 v 1f capacitor is as the follows: RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
If you are interested in Kamcap supercapacitor and want to buy super capacitor, please contact our professional team through info@kamcap.com.
Coin Type Series 0.1F~1.5F 5.5V Super Capacitor Specification Sheet：
Series name | SE Series |
Type name | SE -5R5-D |
Rated voltage VR | 5.5V |
Surge voltage | 5.8V |
Capacity range | 0.1F~1.5F |
Operating temperature range | -25~ +70℃ |
Product life | Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR, Capacity attenuation≤30%, ESR change≤4 times. |
High temperature endurance life：70℃, maintain VR, 1000 hours. Capacity attenuation≤30%, ESR change≤4 times |
SE-5R5-D （Coin type series ultra super capacitor）Product performance list
Model | Capacity F | ESRΩ | Product size（mm） | |||
DC | AC 1kHz |
Diameter
| Height |
Pin distance | ||
SE-5R5-D104VYC3H | 0.1 | 100 | 50 | 13.0 | 6.5 | 5 |
SE-5R5-D104VYH3E | 0.1 | 100 | 50 | 11.5 | 6.4 | 10.5 |
SE-5R5-D104VYV3C | 0.1 | 100 | 50 | 11.5 | 12.33 | 4.7 |
SE-5R5-D224VYC3H | 0.22 | 80 | 40 | 13.0 | 6.5 | 5 |
SE-5R5-D224VYH3E | 0.22 | 80 | 40 | 11.5 | 6.4 | 10.5 |
SE-5R5-D224VYV3C | 0.22 | 80 | 40 | 11.5 | 12.3 | 4.7 |
SE-5R5-D334VYC3H | 0.33 | 80 | 40 | 13.0 | 6.5 | 5 |
SE-5R5-D334VYH3E | 0.33 | 80 | 40 | 11.5 | 6.4 | 10.5 |
SE-5R5-D334VYV3C | 0.33 | 80 | 40 | 11.5 | 12.3 | 4.7 |
SE-5R5-D474VYC3H | 0.47 | 80 | 40 | 13.0 | 6.5 | 5 |
SE-5R5-D474VYH3E | 0.47 | 80 | 40 | 11.5 | 6.4 | 10.5 |
SE-5R5-D474VYV3C | 0.47 | 80 | 40 | 11.5 | 12.3 | 4.7 |
SE-5R5-D684VYC3G | 0.68 | 30 | 15 | 20.5 | 7 | 6 |
SE-5R5-D684VYC3H | 0.68 | 30 | 15 | 20.5 | 7.4 | 5 |
SE-5R5-D684VYH3C | 0.68 | 30 | 15 | 18.7 | 5.5 | 20 |
SE-5R5-D684VYV3C | 0.68 | 30 | 15 | 18.7 | 20.2 | 5 |
SE-5R5-D105VYC3G | 1 | 30 | 15 | 20.5 | 7 | 6 |
SE-5R5-D105VYC3H | 1 | 30 | 15 | 20.5 | 7.4 | 5 |
SE-5R5-D105VYH3C | 1 | 30 | 15 | 18.7 | 5.5 | 20 |
SE-5R5-D105VYV3C | 1 | 30 | 15 | 18.7 | 20.2 | 5 |
SE-5R5-D155VYC3G | 1.5 | 20 | 10 | 20.5 | 7 | 6 |
SE-5R5-D155VYC3H | 1.5 | 20 | 10 | 20.5 | 7.4 | 5 |
SE-5R5-D155VYH3C | 1.5 | 20 | 10 | 18.7 | 5.5 | 20 |
SE-5R5-D155VYV3C | 1.5 | 20 | 10 | 18.7 | 20.2 | 5 |
Typical Application
Series | Application range | Instance |
SP, LR, HP, HT | Backup power | RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
SE, HP, HE | Energy storage | Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
SE Coin type, HE | Energy storage | Flashlights, water meters, gas meters, taillights, small appliances, etc. |
HP、LR | High power support | Wind power, locomotive start, ignition, electric vehicles, etc. |
MK | Backup power High current operation | Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
