GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine

GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine photo-1
GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine photo-2
GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine photo-3
GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine photo-4
GL- 500B Self Adhesive Tape Packing Tape Sealing Tape Making and Printing Machine photo-5
US$ 6500 - 9500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Guolian
Place of Origin:
China
Model Number:
GL-500B
Payment & Shipping
Payment Methods:
Port of Shipment:
self adhesive tape packing taep making machine delivery port according to customer demond
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Guolian
Place of Origin China
Model Number GL-500B
Certification CCC
After-sales Service Provided Engineers available to service machinery overseas
Weight 2000KG
Dimension(L*W*H) 7.6M*1M*2.4M
Voltage 380v
Power 15kw
Condition New
Automatic Grade Automatic
Packaging Material Plastic
Packaging Type Other, self adhesive tape packing taep making machine packing according to customer demond
Product Description

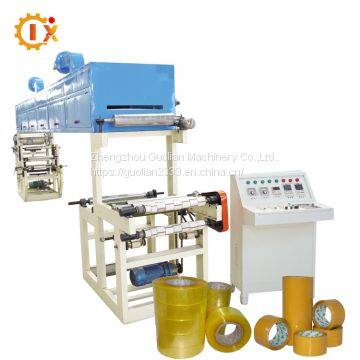

GL- 500B self adhesive tape packing tape sealing tape making and printing machine

make adhesive tapes from raw material to different sizes of small clear & color & printed tapes and jumbo roll on same machine by one step

Get production video link as below:

/watch?v=wCap0Z8oWdM&list=PLpA-R5J_9zjjU7APfoP7dAaR5Hlhypees&index=16

GL- 500B self adhesive tape packing tape sealing tape making and printing machine
Dimensions
7.60m*1m*2.60m
Power
3-phase,380v,50Hz
Printing
1 color engravure printing
Coating speed
10--25M/min
ating width
500mm
Max.loading diameter
600mm
Max.rewinding diameter
180mm
Heating way
heating water by electricity
Rewinding
2 shafts
Weight
1800kg
Operator
1--2

GL- 500B self adhesive tape packing tape sealing tape making and printing machine raw materials:

Same time get clear,color ,printed jumbo roll:

GL- 500B self adhesive tape packing tape sealing tape making and printing machine features:

1.one air shaft for rewinding bopp jumbo roll

2.Seperate electricity control cabinet

3. One color engravure printing
4. Automatic coating system
5. Inbuilt water tank ,heating water by electricity
6. Automatic temperature control

7. 2shafts rewinding small tape


Detailed Images

1.One color engravure printing

2.Automatic blade coating

3.Inbuilt water tank,heating by electricity

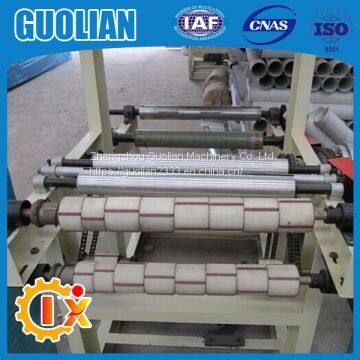

4.Two rewinding shafts for rewinding small tapes

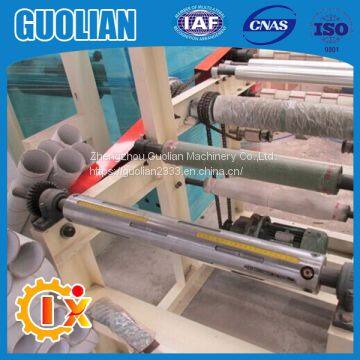

5.Air shaft for rewinding big bopp jumbo roll

6.Ancillary equipment

Factory & Visitors

We are in ZHENGZHOU city, HENAN province, in north China.
Two hours from Guangzhou to our factory by air.
90mins by air from shanghai .
We directly pick you up at our Xinzheng International Airport.
Our factory address:
Xueyuan Road NO.168 ,Mazhai Industrial Park,Erqi District, Zhengzhou City ,Henan Province,China.

FAQ

1.What are the raw materials?
And how to get to know the machine production?
Bopp film & adhesive glue & paper tube.
Machine production/hour == 1hour square meter the machine runs ( speed* 60min* coating width)
1 roll tape square meter ( width *length)

2.How many machines required to process gum tape / adhesive tape?
What optional machines needed for this line?
Two machines----- one our tape coating machine & one tube cutting machine.
Optional machine--- air compressor etc.

3.Can your machine make different size tapes?
Different width tapes---- using different size mould.
For ex. u want to make 4cm width tape, u will need 4cm width mould.
u want to make 4.5cm width tape, u will need 4.5cm width mould etc.
4.Manufacture tape with and Without PRINT on the same machine as required by our client?
Yes, printed tapes & color tapes & clear tapes are make on the same machine.
One or two color online printing on our machine.
5.When we need Finish Product without any print, can we skip the print part during production?what is your printing method?
YES. If no need printing, then skip it and directly coating glue.
We use engraving printing roller for printing.
6.If we change the type/color of BOPP roll, can we make different type of tape?
Color tapes --- need add different color paste in glue for different color tapes.
This line is designed specially for making BOPP tapes .
7.What is the expected life of Motor and other parts?
The host equipments are entitled to one year warranty & free replacement & life time technical support service.
8.For the Raw material - BOPP Film - Do we need tape rewinding machine to make small roll from jumbo roll?
No. There is professional BOPP jumbo roll tape slitting & rewinding machine, which can finish slitting & rewinding same time.
9.The voltage in our country is different from yours,does the machine can be changed?
Yes.
10.Are your engineers available to oversea service ?
Yes. Our oversea service centers are updating and more complete.

Related Products
Packing & Delivery

Packaging Type: Case, Film
Packaging Material:Wood , Plastic
Shipping Port : Normally Qingdao,Lianyungang,Shanghai,Guangzhou etc Port
                              Also Can According To Your Demands

Our Service

We are established in 1990, specializing in manufacturing large, medium and small sizes of adhesive tape making machinery including coating, slitting , rewinding , cutting ,printing ,lamination ,packaging machines , paper core making machine etc.

Sales all over the world!!!
