Size: 100*31.75*44*10*10 5000#
Type: 11A2 diamond wheel
Grit Size: rough, medium, semi- finish grinding, finish grinding
Application: PCD tools grinding, regrind, sharpening
Details

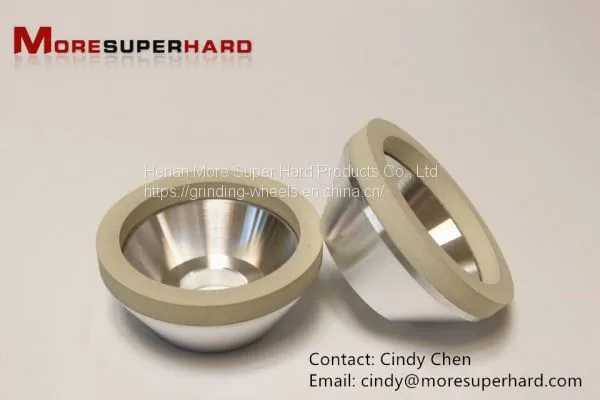

5000# 100mm 11A2 vitrified diamond wheel for PCD
Applications Of Vitrified Diamond Wheel For PCD
Especially for PCD/PCBN tools’ rough, medium, semi- finish and finish grinding, regrind, sharpening
Advantages Of Vitrified Diamond Grinding Wheel For PCD
* Precision control of geometric tolerance
* Extremely long lifetime through high adhesion strength of the diamond grain
* Good self-sharpening
* Superior insert edge quality
* High cutting ability with profile retention
Specifications of Vitrified Diamond Wheel for PCD
Type |
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
11A2 |
100 |
40 |
32 40 |
3 5 10 20 |
10 |
125 |
40 |
32 40 |
3 5 10 |
10 |
|
150 |
40 |
32 40 |
3 5 10 15 20 |
10 |
|
Grit: 325/400 W40(500#) W28(600#) W20(800#) W10(1500#) W7(2000) W5(3000#) W3.5(4000#) 6000#... | |||||
Grain Size Selection of Vitrified Diamond Wheel For PCD
Grain Size |
Machining Type |
Application |
W40(400-500#,D35)W28(600-700#,D20) |
Rough |
Regrinding a blade edge profile and sharpening of much worn inserts |
W20(800-1000#,D20) |
Universal |
Standard grain size also can get a high sharpening efficiency, good quality surfaces |
W10 (1500#, D15A) W7(2000#,D15B) |
Finish |
Finishing grinding - getting a very good quality of machined surfaces |
W5 (3000#, D7) W3.5 (4000#,D3) |
Super Finish |
Super finish grinding - getting a brilliant quality of machined surfaces |
