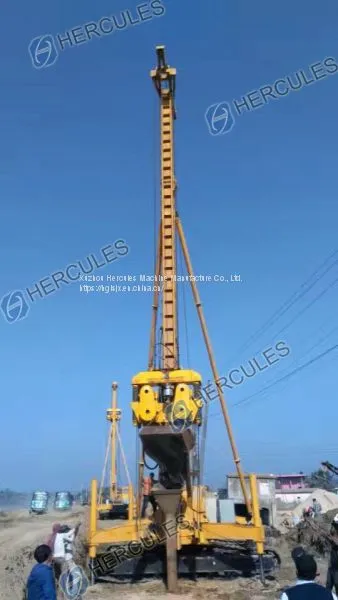

Vibration Gravel Pile Driver machine is popularly used for the foundation construction of high-rise building. The hydraulic rotation of this vibratory pile driver is flexible and could rotate 360°.

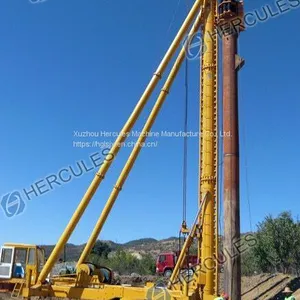

The vibratory driver could be self-installed and self-discharging and it is easy to move because of the Hydraulic Foot-Step system. When transporting, the upper frame will be folded back and the rotary drive do not need to dismantle.
With the characters of convenient maintaining and operating, stable and reliable performance, highly economical and efficient, this pile driver machine is the best investment to improve your business productivity.
Vibratory pile driver’s operation process:
1. Move the pile machine and body frame; make the pile tip align with pile location.
2. Drive the Vibratory Hammer; drop the pile to the established depth.
3. Fill in the required volume gravel to the pile machine.
4. Pump the air into the pile machine by air compressor.
5. Lift the machine 1~2m, the gravel will drop to the drilling hole by the air pressure and gravity.
6. Drop the pile machine to ensure the gravel compact.
7. Repeat above the 4,5,6, process
8. When the gravel in the pile machine to be used at the allowed volume, fill in the gravel again, then repeat above 4,5,6 process
9. When the pile machine lifted to the designed height of the pile top, all the process complete; by this means, the construction speed is 1.5~2.6 times than the routine methods.
Main technical details of this Vibratory Gravel driver:
Technical Data |
Model |
||||
DCB60-75S |
DCB80-90S |
DCB80-110S |
DCB100-120S |
||
Max Vibratory Hammer Model |
DD63/TD50/DZ75KS |
DD83/TD62/DZ90KS |
DD83/TD62/DZ90KS |
DD103/TD100/DZ120KS |
|
Max. Piling Diameter (mm) |
600 |
800 |
800 |
800 |
|
Max. Piling Depth (m) |
15 |
15 |
15 |
15 |
|
Main Winch Line Pull (T) |
5 |
8 |
8 |
10 |
|
Auxiliary Winch Line Pull (T) |
3 |
3 |
5 |
5 |
|
Traveling Motion |
Hydraulic Foot-Step |
Hydraulic Foot-Step |
Hydraulic Foot-Step |
Hydraulic Foot-Step |
|
Max. Gradient of Groundwork |
2o |
2o |
2o |
2o |
|
Rotation Angle |
360o |
360o |
360o |
360o |
|
|
Overall Dimension |
working condition |
13x5.3x25m |
13x5.3x25m |
13x5.3x25m |
13x5.3x25m |
transportation condition |
15.8x2.5x3.38m |
15.8x2.5x3.38m |
15.8x2.5x3.38m |
15.8x2.5x3.38m |
|
Overall Weight (T) |
35 |
45 |
45 |
55 |
|
